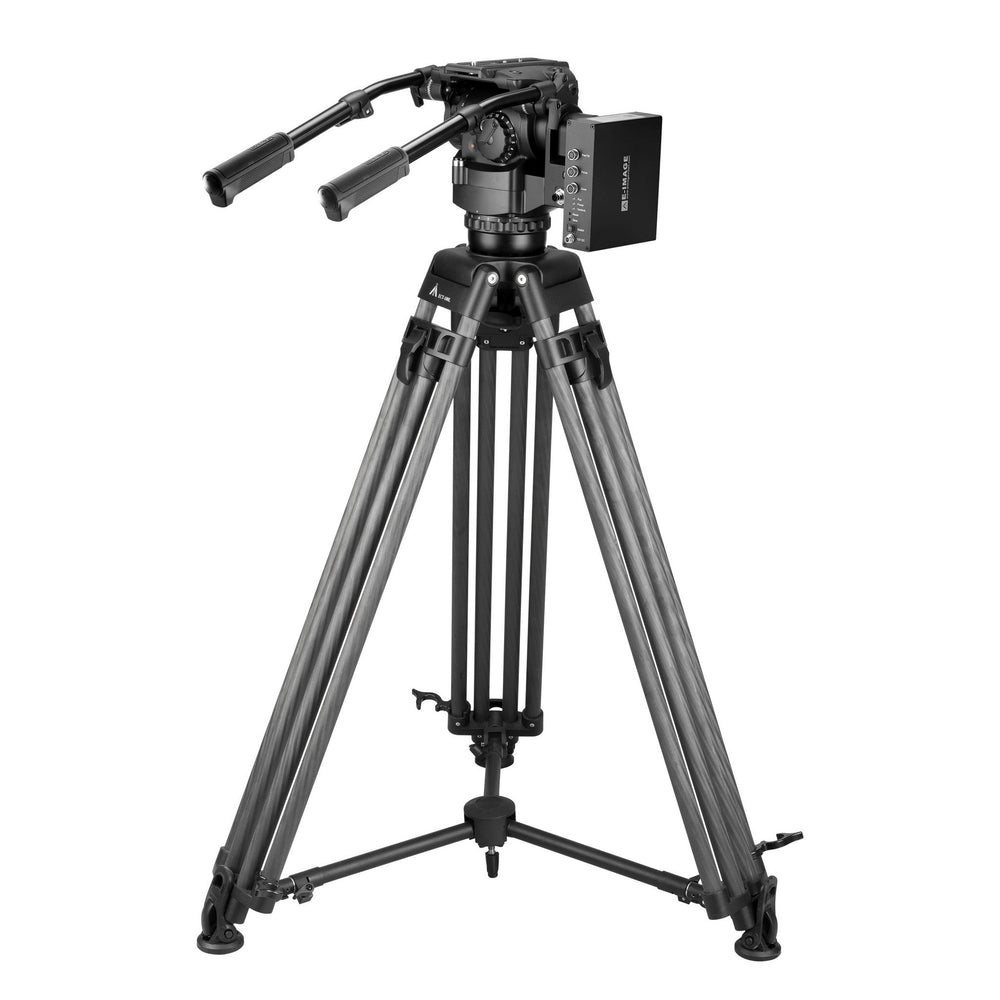

The EG25XR-PRO is high-performance head & lens tracking system that serves as a crucial component of XR systems. This virtual system consists of a video tripod, encoded head, XR data processing device, zoom/focus lens encoders, and DC power cable, and is specifically designed to collect precise data on the pan and tilt angles of the head, as well as the zoom and focus of the lens. Real-time virtual data is transmitted to the XR data processing device and can output tracking data via the FREE-D Protocol using either an RS422 or RJ45 interface.

Encoded Tripod Head
The GH25XR Fluid Head features integrated encoders that accurately track and relay the pan and tilt positions in real-time. Data from the encoders is output through an 8-pin locking cable. The tripod head supports cameras up to 55 pounds and offers adjustable counterbalance, pan, and tilt drag settings.

Data Box
The XR Data Processing Device captures data from the lens focus/zoom encoders and tripod pan/tilt encoders and outputs the encoded data to the Free-D protocol via RJ45 UDP or RS-422 serial data. Free-D is a widely adopted protocol used in virtual production to convey real-world camera movement and positioning data to digital environments. Once the Free-D data is output to the Free-D protocol, it can be received by any Virtual Production software such as Brainstorm, Vizrt, Avid (Orad), Unreal Engine, Ross Video, Qimera, and more. The indicator lights display status for data reception, genlock connection, and Free-D protocol output.

Tripod Legs
The Heavy Duty Tripod, equipped with a leveling 100mm base, has a 220lbs capacity and is constructed from 12X layer carbon fiber. It features a flip-clamping system with safety locks and can accommodate professional DSLRs, telephoto lenses, and camcorders. The height range is 30” to 60”.

Lens Encoders
The encoders connect to the focus and zoom rings of a broadcast lens, capturing the data and encoding it to the Free-D protocol. The included lens encoders are compatible with the vast majority of broadcast lenses and include 0.6, 0.5, and 0.8 pitch gears that mount directly to the lens or to a 15mm rod. With a high resolution of 65,536 count/revolution, the magnetic sensors are able to pick up the most subtle lens adjustments.

System Equipment Requirements (sold separately):
A dedicated virtual production workstation computer with Free-D compatible software (e.g., Brainstorm InfinitySet), equipped with 3G-SDI I/O video card with Genlock support
Sync generator
Video camera with Genlock input and 3G-SDI
Zoom lens (needed for the included zoom encoder)
100mm Tripod with a minimum payload capacity to support the encoded head and camera
A network switch is required if using LAN output for sending Free-D data
A custom RS422 cable is required if using RS422 output for sending Free-D data
Make sure to check the recommended specs of your virtual production workstation as if may greatly affect the performance of the XR Tripod.

Key Features

• Fully Encoded Tripod Head for VR, AR & XR Production
• Includes Tripod, Encoded Head, Focus and Zoom Lens Encoders, and Data Box
• Sends Tracking Data via FREE-D Protocol
• Supports up to 55 lbs. Payload
• Height range – 38.6” – 68.5”
• Comes with a padded carrying bag for easy transportation and storage
• Includes adjustable mid-level spreader and rubber feet
• Tracks Pan, Tilt, Zoom and Focus

Technical Specifications

What's Included
1 x XR Data Box
1 x Carbon Fiber Tripod
1 x XR Fluid Head
1 x XR Fluid Head Connection Cable
2 x 0.5 Lens Gears
2 x 0.6 Lens Gears
2 x 0.8 Lens Gears
2 x Zip Gears
1 x Lens Encoders

General Specs
Payload Capacity
55 lbs.
Minimum Height
38.6 in. / 98 cm.
Maximum Height
68.5 in. / 174 cm.
Transport Length
45.3 in. / 115 cm.
Net Weight
31.5 lbs. / 14.3 kg.

Head
Payload Range
55 lbs. / 25 kg.
Counter Balance
1 - 15
Grades of Pan Drag
0 - 7
Grades of Tilt Drag
0 - 7
Tilt Range
-80°~+90°
Temperature Range
-40° - 176°F
Bowl Size
100mm
Net Weight
9.3 lbs. / 4.2 kg.

Tripod Legs
Material
Carbon fiber
Bowl size
100 mm
Leg Stages/Sections
One-Stage / Two-Section
Leg Lock Type
Flip Lock
Spreader
Mid-Level
Spiked/Retractable Feet
Yes
Payload Range
100kg / 220.5lbs
Height Range
75.5-153cm / 29.7-60.2in
Folded Length
92.5cm / 36.4in
Weight
8.0kg / 17.6lbs

Data Box
Supply Voltage
DC 9-24V
Power Draw
4W
Pan / Tilt Resolution
16 Bit Absolute (65,536 Count / Revolution)
Zoom / Focus Resolution
Up to 16 Bit Absolute (Effective Resolution: 13 bit absolute)
Communication Bus
RS422 Speed: 38400 bps Data: 8-bits Stop: 1-bit Parity: Odd
Communication Protocol
Free-D1
Data Output Frequency
Depending on Genloclk, Max Frequency 60Hz
LAN Connection
RJ45 (T568B)
Genlock
Blackburst(Bi-level), Tri-Level
Temperature Range
32°F - 104°F
Max Humidity Level
RH 60% (77°F)
Size
6.1 x 6 x 2 in. 156 x 152 x 50 mm.
Net Weight
1.2 lbs. / 550 g
