E-Image EI-GA780-KIT Geared Aluminum Pedestal Tripod with Fluid Head

E-Image EI-GA780-KIT Geared Aluminum Pedestal Tripod with Fluid Head

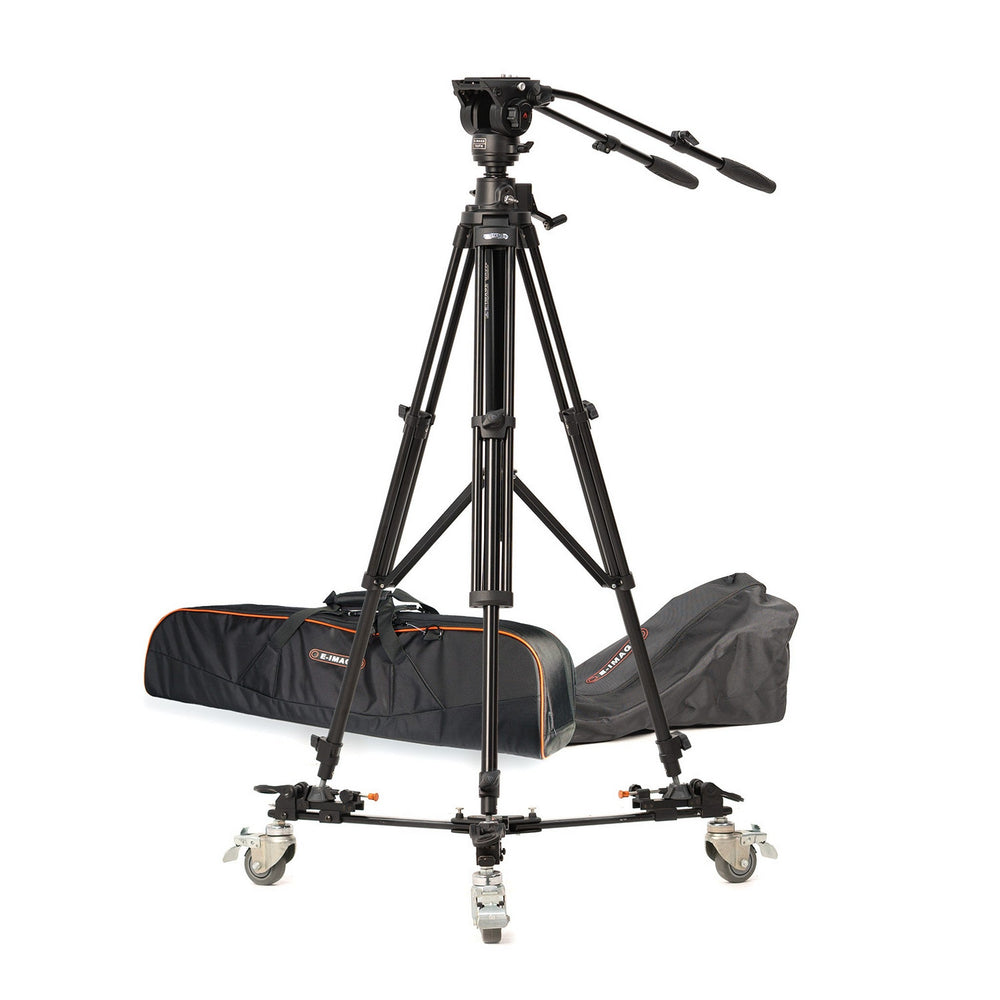

Transport your camera around the set or studio smoothly and quickly with this Height-Adjustable Pedestal System from E-Image. This pedestal is made up of the heavy-duty 780FH fluid head, the GA230 tripod pedestal, the EI-7003C tripod dolly, two padded panhandles, and carrying bags for the fluid head & pedestal legs, and an additional one for the dolly. The maximum payload for this full pedestal system is 22 lbs.

FLUID HEAD
The 780FH head features a 75mm bowl, variable pan & tilt drag, and fixed counterbalance. The head comes with a top-loading quick-release mounting plate with a 5.7” slide range that helps to balance large studio cameras or teleprompters. It features two rosettes where you can connect the two included padded panhandles. The fluid head also features individual locks for both pan & tilt.

PEDESTAL SYSTEM
The geared center column of the tripod can extend 18” and lock in place for high-angle shots. With the tripod mounted onto the dolly, this pedestal system has a height range of 43.9” to 106.9”. The EI-7003C dolly features three locking rubber wheels, a load capacity of 88.2 lb, and a 39.4” footprint diameter. It can be removed from the legs and folded for transport and storage and even has a handle for easy carrying.

HEAVY-DUTY DOLLY
The E-Image Pedestal Dolly supports up to 88.2 lbs and is ideal for moving tripods along a flat surface for quick repositioning between shots. The adjustable foot mounts provide a quick and easy setup. This dolly is perfect for both studio and on-location use where support for heavy setups is a requirement.

Key Features

• Full System Supports Payloads up to 22 lbs.
• Fixed Counterbalance Supports up to 13.2 lbs.
• Variable Pan & Tilt Drag
• Extra-Tall Tripod Legs with Geared Rising Center Column
• Height Range of 43.9” - 106.9”
• EI-7003C Dolly w/ Locking Wheels and Cable Guard
• Includes Two GB2 Extendable Pan Handles
• Includes Carry Bag for Full Kit

Technical Specifications

What's Included
1 x 780FH Fluid Head
2 x GB2 Panhandles
1 x GA230 Aluminum Tripod
1 x EI-7003C Dolly
Max Payload
22 lbs
Counterbalance Payload
13.2 lbs
Min Height
43.9”
Max Height
106.9”
Fluid Head
Max Payload
22 lbs
Bowl Size
Flat Base
Counterbalance Payload
13.2 lbs
Counterbalance System
Fixed
Pan Drag
Variable
Tilt Drag
Variable
Tilt Range
-75° / +90°
Net Weight
4.0 lbs./1.8 kg
Net Weight w/ Dual Handles
5.2 lbs./2.35 kg
Mounting Plate
Manfrotto 501, Top-mounted or side mounted
Mounting Points
1x 1/4”-20 Thread
Bubble Level
Yes
Camera Plate Length
4.7 in./ 120mm
Tilt Lock
Thumb Lock
Weight of Head
1.5 lbs
Weight of Head w/ 1 Panhandle
1.8 lbs
Weight of Head w/ 2 Panhandles
2.1 lbs
Tripod Legs
Material
Anodized aluminum alloy
Head Attachment Fitting
Flat Base
Leg Stages/Sections
Two-Stage / Three-Section
Leg Lock Type
Rotary clamp
Spreader
Mid-Level
Spiked/Retractable Feet
Yes/Yes
Load Capacity
26.5 lbs. / 12 kg
Height Range
33.1 in ~ 90.6 in. / 84 cm ~ 230 cm
Folded Length
28.3 in. / 72 cm.
Weight
8 lbs. / 3.6 kg.
Elevator Height
16.9 in./43 cm
Dolly
Net Weight
8.6 lbs./3.9 kg
Footprint Diameter
39.4 in./100 cm
Height
5.7 in./14.5 cm
Radius
19.7 in./50 cm
Wheel Width
2.95 in./75 mm
Lockable Wheels
Yes
Build Material
Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload
88.2 lbs./40 kg.
UPC Code
847983033713
