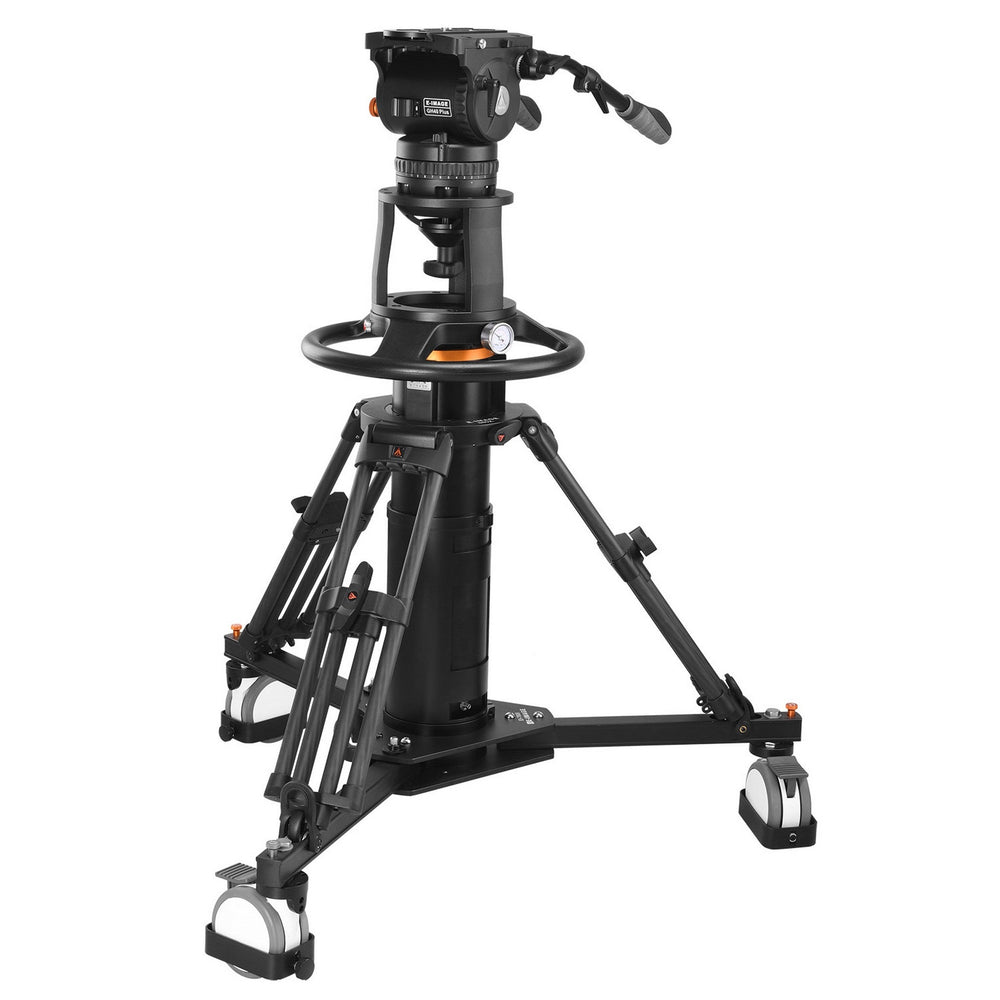

E-Image EP880XK Pneumatic Carbon Fiber Pedestal with 150mm Fluid Head

E-Image EP880XK Pneumatic Carbon Fiber Pedestal with 150mm Fluid Head

The EP880XK Pneumatic Pedestal Kit is designed for broadcast camera operators who require heavy payload capacity and tight counterbalance. This pedestal system has a counterbalance payload of 88 lbs and will carry an ENG camera with a box lens and servo controls.

DRAG/COUNTERBALANCE
The fluid head features 9x micro counterbalance settings (3 steps), a payload switch (2 steps) for a total of 54-steps of adjustable counterbalance system. The system also offers 11 steps of pan & tilt drag.

PNEUMATIC PEDESTAL
The Pneumatic Pedestal includes the E-Image Mono-Lock leg design and the Easy Lock base plate system. The pedestal system, without the fluid head mounted, can support payloads weighing up to 110 pounds. This pneumatic pedestal includes an air release to achieve the perfect balance of the center column.

150MM BOWL
The fluid head includes a 150mm bowl mount with a twist lock to secure the teleprompter and camera payload.

SLIDE RANGE
The 205mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 8 inches of sliding range to counterbalance your entire teleprompter and camera setup.

DUAL PANHANDLES
The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7” to 24”

CARBON FIBER LEGS
The pedestal features dual carbon fiber legs for each section. When mounted onto the heavy-duty dolly, these pedestal legs can provide support up to 110 lbs.

VERSATILE DOLLY SHOTS
The dolly base has track lock wheels to maintain direction during complex dollying and tracking shots. By locking the wheels in certain positions, radial arc shots can also be achieved.

Key Features

• Supports 88 lbs. Camera Payload
• 54 Steps of Counterbalance/ 11 Steps of Pan & Tilt Drag
• 150mm Riser Bowl
• Pedestal Working Height Range 40.1 - 64.6”
• Pneumatic Telescoping Center Column/ On-Shot Stroke: 15”
• Two-Stage Carbon Fiber Tripod Legs
• Heavy Duty Telescoping Pan/Tilt Arms
• Collapsible Dolly w/ Track Lock Wheels & Cable Guards

Technical Specifications

Shipping Weight (lbs)
165.6
Shipping Dimensions (in)
Box 1: 22x18x18 Box 2: 45x22x22 Box 3: 32x25x12
What's Included
1 x EP880X Pneumatic Pedestal Base
1 x GH40 Plus Fluid Head
1 x EI-7008 Heavy Duty Dolly
2 x GB4 Panhandles
1 x Center Support Column
1 x Air Pump
1 x Rolling Hard Case for EP880X Pedestal
1 x Soft Carrying Case for EI-7008
1 x Allen Wrench Set
Pedestal
Bowl Size
150mm
Payload Capacity
88 lbs./ 40kg
Height Range
49.1 - 73.6 in.
Build Material
Legs: Carbon Fiber | Column: Aluminum | Riser: Cast Iron
Net Weight
102.3 lbs./ 46.5 kg
On-Shot Stroke
15 in./ 38 cm
Steering Ring Diameter
12.04 in./ 306mm
Fluid Head
Head Payload Capacity
88.2 lbs. - 40kg
Bowl Size
150mm
Counterbalance System
54 Steps
Pan Drag Settings
0-11
Tilt Drag Settings
0-11
Tilt Lock
Thumb Lock
Tilt Range
-70°/+90°
Bubble Level
Yes- Illuminated
Pan Handle Length Range
15.6 in. - 23.4 in.
Net Weight
19.4 lbs./8.8kg
Net Weight w/ Pan Handles
11 lbs./4.98kg
Sliding Plate Range
8 in./205mm
Temperature Range
-40 Degrees F - 176 Degrees F
Dolly
Net Weight
23.6 lbs./10.7 kg
Footprint Diameter
39.4 in./100 cm
Height
8.4 in./ 21.5 cm
Radius
19.7 in./50 cm
Wheel Width
3.9 in./100 mm
Lockable Wheels
Yes
Build Material
Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload
220.5 lbs./ 100.0 kg
