E-Image GA102D-PTZ Aluminum PTZ Tripod with 100mm Flat Base and Dolly

E-Image GA102D-PTZ Aluminum PTZ Tripod with 100mm Flat Base and Dolly

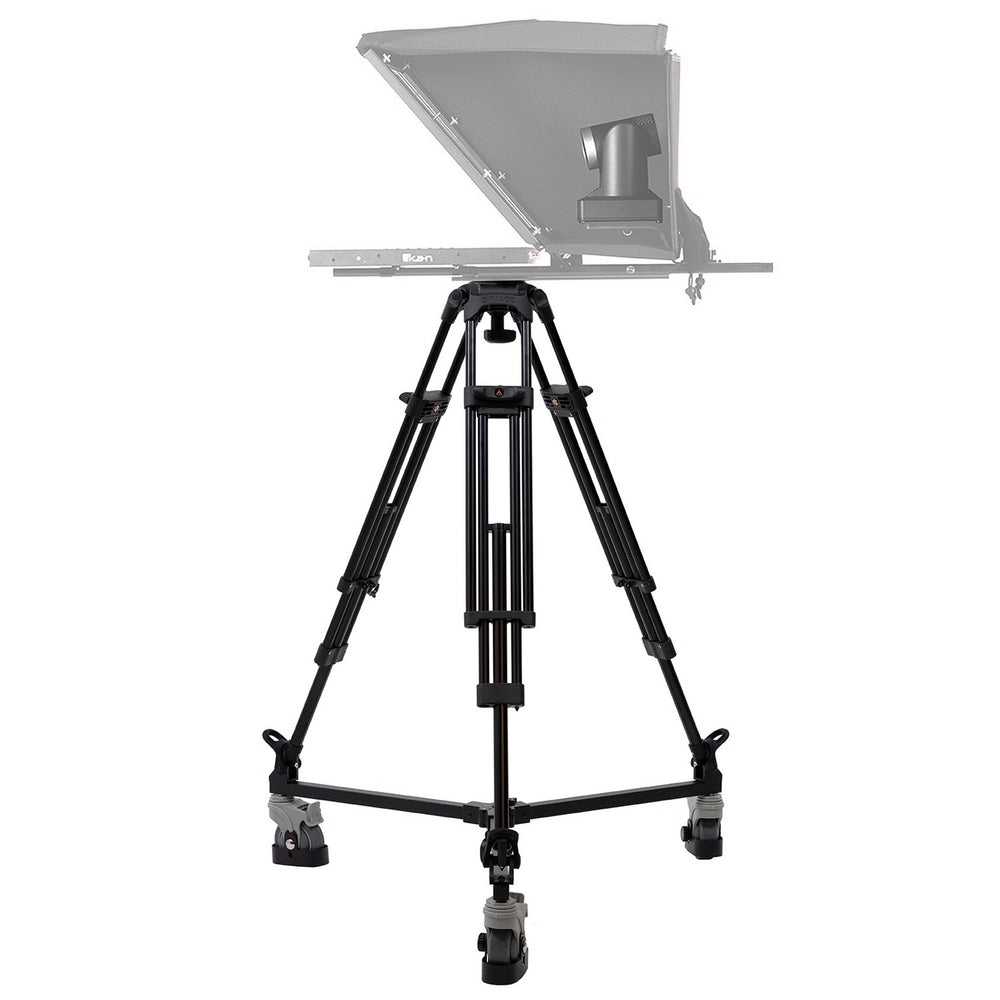

Secure your PTZ Teleprompter or Robotic PTZ Head onto the GA102D-PTZ Tripod System’s 100mm Flat Base. This tripod kit provides different mounting options for PTZ solutions including a PTZ camera, pan-tilt head, or a full PTZ teleprompter. With this studio version, you can transport your PTZ camera around the set or studio smoothly and quickly with the included EI-7003B dolly with cable guards.

VARIOUS PTZ SOLUTIONS
The GA102D-PTZ Tripod System is a versatile mounting solution tailored for PTZ equipment. Whether you’re utilizing a PTZ camera, a robotic pan-tilt head, or a full PTZ teleprompter, this tripod system offers a 100mm flat base with a 3/8” - 20 mounting screw, ensuring secure and stable attachment of your equipment.

HEAVY-DUTY TRIPOD
The GA102 tiered video tripod legs are made of aluminum and can hold 132 lbs. The GA102 is topped off with a 100mm bowl for quickly adjusting the payload horizontally and/or vertically.

MONO-LOCK
The heavy-duty tripod is made of aluminum and the legs are a twin tube design with two stages. It includes the E-Image Mono-Lock design which allows you to control the height of both stages with a single twist lock.

FLAT BASE
The 100mm Flat Base includes a 3/8”-16 mounting screw at the top and is designed to mount PTZ Teleprompter Systems or Robotic PTZ Heads. When using the pedestal with our 19” PTZ Teleprompter system, the 100mm Flat Base provides additional preliminary tilt adjustment. This will help remove the teleprompter monitor from your camera shot if you’re shooting at a wide focal length. After finalizing your preliminary tilt adjustment, your PTZ Camera can be used for primary panning & tilting adjustments moving forward. If you are looking to only mount the PTZ camera itself, the P6 quick-release plate is included and can also be mounted directly onto the 100BF flat base.

EI-7004B DOLLY
The EI-7004B dolly features 4” locking rubber wheels with a capacity of 132.3 pounds. This system has a working footprint of 39.4 inches and has height-adjustable cable guards. Each dolly system is easy to fold with its handle and single wingnut for transport in the DB-01 carrying bag (included).

Key Features

• Mounts PTZ Cameras, PTZ Teleprompters, or Pan-Tilt Heads
• Tripod Kit Supports Up to 88 lbs.
• Height Range: 23.7” - 68.1”
• 2-Stage Legs w/ Mono-Lock Leg Locking System
• Includes EI-7004B Dolly w/ Locking Wheels and Cable Guard

Technical Specifications

What's Included
1 x P6 Quick Release Plate
1 x 100BF 100mm Flat Base
1 x GA102 Aluminum Tripod
1 x GS01 Mid-Level Spreader
3 x F3 Rubber Feet
1 x EI-7004B Dolly
Max Payload
133 lbs
Min Height
23.7”
Max Height
68.1”
100mm Flat Base
Flat Base Height
105mm
Net Weight
1 lbs
Tripod
Material
Anodized aluminum alloy
Bowl Size
100 mm
Leg Stages/Sections
One-Stage / Three-Section
Leg Lock Type
Rotary clamp
Spreader
Mid-Level
Spiked/Retractable Feet
Yes
Load Capacity
132.3 lbs.
Height Range
18.5 in ~ 63.0 in. / 47 cm ~ 160 cm
Folded Length
29.1 in. / 74 cm.
Weight
11.2 lbs. / 5.1 kg.
Dolly
Net Weight
15 lbs./6.8 kg
Footprint Diameter
39.4 in./100 cm
Cable Guard Diameter
4.92 in./12 cm
Height
6.7 in./17 cm
Radius
19.7 in./50 cm
Wheel Width
3.9 in./100 mm
Lockable Wheels
Yes
Build Material
Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload
132.3 lbs./60 kg.
Quick Release Plate
Dimensions
4.7” x 3.9 x 1”
Net Weight
.7 lbs
