E-Image GA230D-PTZ Aluminum Tripod with Dolly/Geared Column and Quick Release for PTZ Cameras

E-Image GA230D-PTZ Aluminum Tripod with Dolly/Geared Column and Quick Release for PTZ Cameras

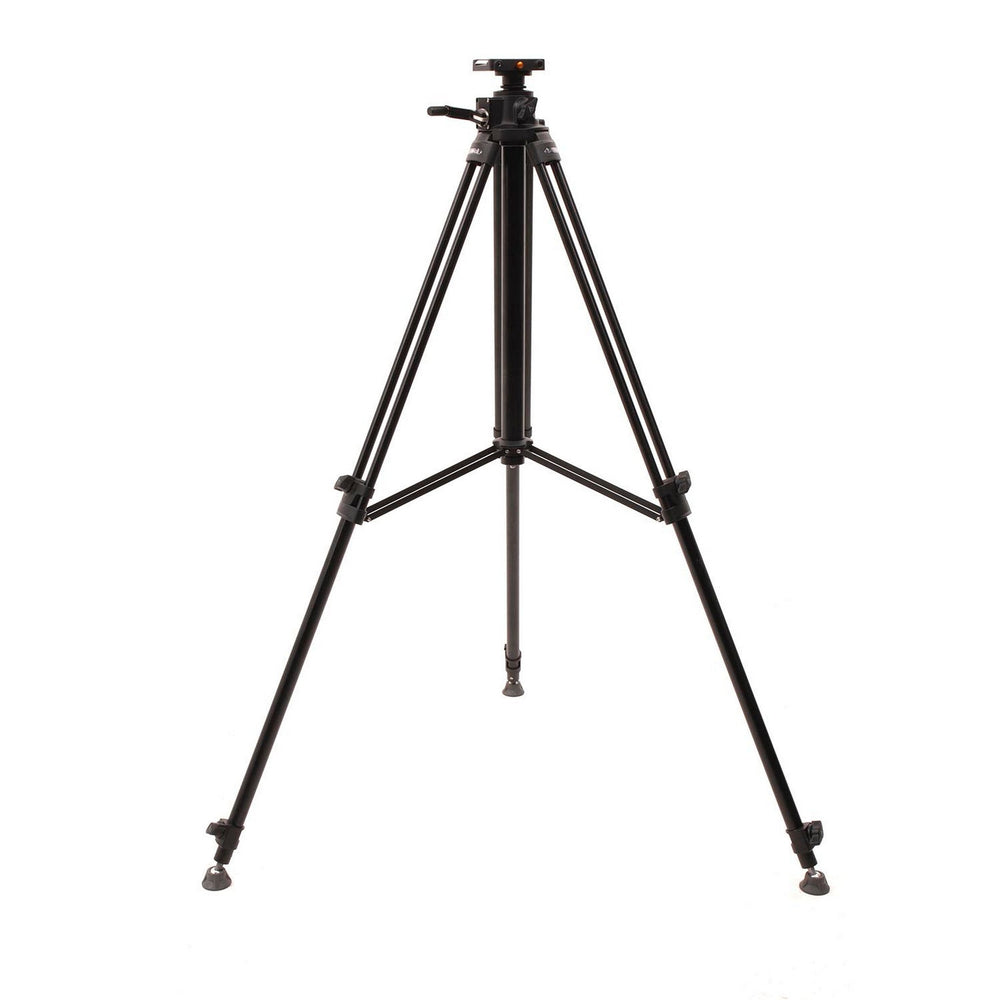

The GA230D-PTZ from E-Image combines a durable Aluminum Tripod with a Quick Release Plate for an ideal solution for your PTZ camera. This tripod is designed for steady use, light-to-moderate loads, and a super-extensive height range. The tripod features a geared center column, various screw threads for mounting, and a heavy-duty dolly.

IDEAL PTZ SOLUTION
While the tripod legs are still absolutely essential for stability, using a PTZ camera eliminates the need for a tripod head. The GA230S-PTZ replaces the fluid head with a P6 Quick-Release plate, creating a more straightforward solution.

HEIGHTENED VERSATILITY, ELEVATED SHOTS
The geared center column of the tripod can extend 18” and lock in place for high-angle shots. When mounted to the dolly, the tripod has a height range of 38.9” - 98.3”, and is topped off by a flat mounting base with a 3/8-16 threaded screw.

STABILITY
The GA230D-PTZ can hold up to 26.5 lbs and comes packaged with a flat quick release plate for extra stabilization. Also included is a camera plate that can slide forward or backward before being secured by the lock-down lever. Additionally, a safety release ensures that the camera won’t fall off the plate if it’s not secured. The camera plate is also interchangeable with Manfrotto 501 plates. The P6 plate includes a spring-loaded thumb screw that will allow you to fasten the tripod plate without ever touching the camera. This works by pulling the thumb screw outwards away from the camera and readjusting the angle of the screw to continue tightening.

A stone bag is also included to weigh down your tripod for added stability.

MULTIPLE MOUNTING POINTS
A threaded 1/4”-20 mounting recess is conveniently located at the base of the central column for mounting accessory arms. These will allow for mounting wireless transmitters, lights, or especially monitors, which you might need if your camera is set at the tripod’s full extension. Additionally, the quick-release plate itself also includes two mounting recesses; a 1/4”-20 thread and a 3/8”-16 thread. These would be ideal for mounting lighter accessories like a shotgun mic, LED light, or any other accessories you might need.

BUBBLE LEVEL
The quick release plate incorporates a bubble level to assure proper head alignment when shooting.

HEAVY-DUTY DOLLY
The dolly supports up to 88.2 lbs and is ideal for moving tripods along a flat surface for quick repositioning between shots. The adjustable rubber foot mounts provide a quick and easy setup. This dolly is perfect for both studio and on-location use and offers a much safer & convenient transport.

Key Features

• Convenient Tripod & Dolly Kit for PTZ Camera Setups
• Extra-Tall Tripod Legs with Geared Rising Center Column
• Height Range w/ Dolly: 38.9” - 98.3”
• Max Payload Capacity: 26.5 lbs.
• Built-in Mid-Level Spreader
• Retractable Foot Spikes for Soft Ground
• P6 Includes Adjustable Ratcheted Release Screw
• Plate Includes 1/4”-20 and 3/8”-16 Mounting Screws and Registration Pin
• Includes Stone Bag

Technical Specifications

Shipping Weight (lbs)
27
Shipping Dimensions (in)
38 x 20 x 13
What's Included
1 x GA230 Tripod Legs
1 x EI-7003C Universal Tripod Dolly
1 x P6 Quick Release Plate
1 x Tripod Shoulder Strap
1 x Stone Bag
Tripod Legs
Material
Anodized aluminum alloy
Head Attachment Fitting
Flat Base
Leg Stages/Sections
Two-Stage / Three-Section
Leg Lock Type
Rotary clamp
Spreader
Mid-Level
Spiked/Retractable Feet
Yes/Yes
Load Capacity
26.5 lbs. / 12 kg
Height Range
33.1 in ~ 90.6 in. / 84 cm ~ 230 cm
Folded Length
28.3 in. / 72 cm.
Weight
8 lbs. / 3.6 kg.
Elevator Height
16.9 in./43 cm
Dolly
Net Weight
8.6 lbs./3.9 kg
Footprint Diameter
39.4 in./100 cm
Height
5.7 in./14.5 cm
Radius
19.7 in./50 cm
Wheel Width
2.95 in./75 mm
Lockable Wheels
Yes
Build Material
Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload
88.2 lbs./40 kg.
Quick Release Plate
Dimensions
4.7” x 3.9 x 1”
Net Weight
.7 lbs
Brand
E-Image
Bubble Level
Yes
Build Material
Aluminum
Compatible Mount
Manfrotto 501
Fixture Weight
11.6 lbs
Head Payload Capacity
26.5 lbs
Height Range
33.25” - 92”
Leg Lock Type
Twist
Leg Payload Capacity
26.5 lbs
Leg Stages/Sections
2-Stage/3-Section
Max. Height
92”
Min Height
33.25”
Mounting Plate
Manfrotto 501
Mounting Points
1x 3/8”-16 thread ~ 2x 1/4”-20 threads
Payload
26.5 lbs
Quick Release/Wedge Plate
Quick Release
Spiked/Retractable Feet
Yes
Spreader Type
Mid-Level
UPC Code
847983034635
