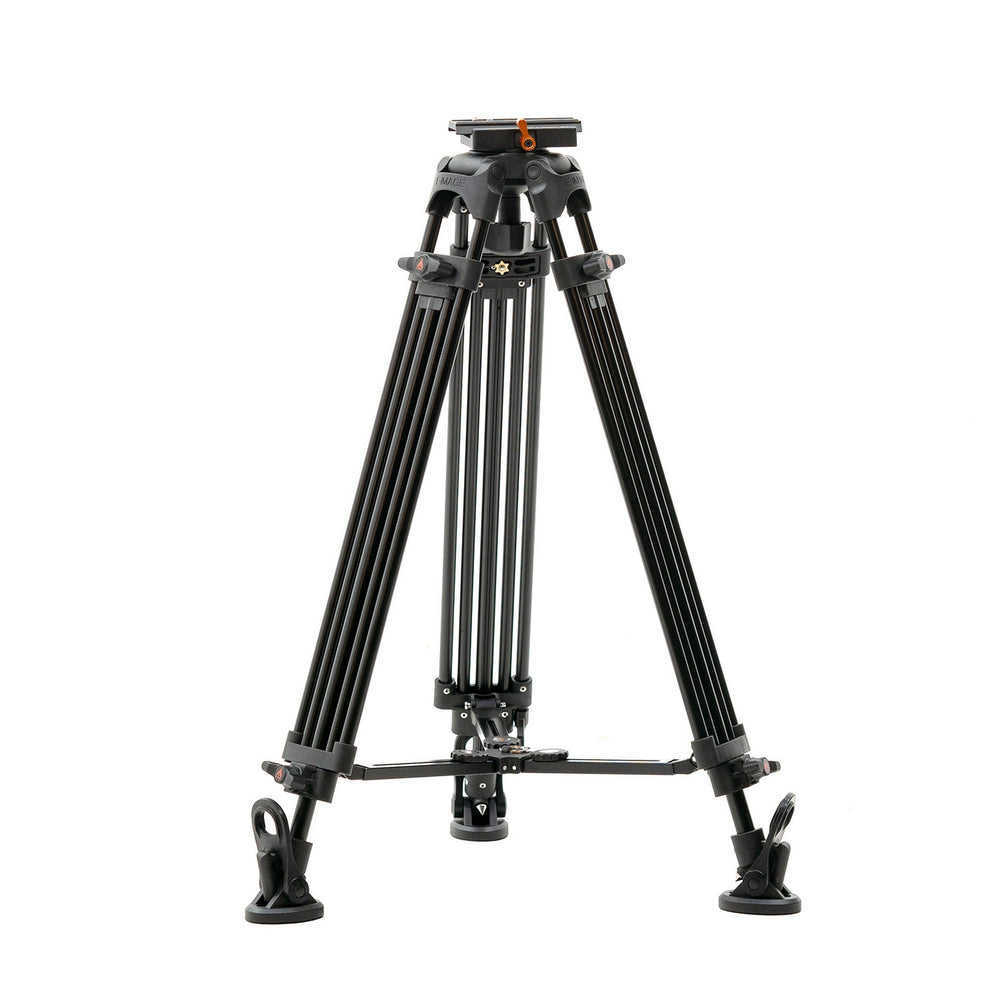

E-Image GA752S-PTZ Aluminum Tripod with 75mm Flat Base and Quick Release for PTZ Cameras

E-Image GA752S-PTZ Aluminum Tripod with 75mm Flat Base and Quick Release for PTZ Cameras

The E-Image GA752-PTZ Tripod System is the perfect solution for mounting your PTZ camera on a stable and portable tripod platform that eliminates wobbling or vibration. The bundle includes a two-stage aluminum tripod that can support up to 66 lbs, a 75mm Flat Base, a PTZ camera quick-release-plate, and a mid-level-spreader for an ideal solution for your PTZ camera.

The lightweight and durable aluminum tripod legs make it easy to set up on-location and quickly pack up after an event or use it as a permanent camera position in a studio.

IDEAL PTZ SOLUTION
While the tripod legs are still absolutely essential for stability, using a PTZ camera eliminates the need for a tripod head. The GA230S-PTZ replaces the fluid head with a P6 Quick-Release plate, creating a more straightforward solution. The P6 plate includes a spring-loaded thumb screw that will allow you to fasten the tripod plate without ever touching the camera. This works by pulling the thumb screw outwards away from the camera and readjusting the angle of the screw to continue tightening.

75MM TRIPOD
The GA752S’s unique features include the E-Image 3-Section Aluminum Legs and a payload capacity up to 88 pounds. It is made of lightweight aluminum, has a 75mm bowl, and features a twin-tube leg design. The tripod can be adjusted to a maximum height of 62” and a minimum height of 25” with a folded length of 29”. An adjustable mid-level spreader provides extra security and stability.

MOUNTING POINTS
The P6 quick-release plate itself also includes two mounting threads; a 1/4”-20 thread & a 3/8”-16 thread. These would be ideal for mounting lighter accessories like a shotgun mic, LED light, monitor, wireless transmitter, tally light, or any other accessories you might need.

Key Features

• Convenient Tripod for PTZ Camera Setups
• Maximum Height of 61.4”, Minimum Height of 25.2”
• Max Payload: 66 lb.
• Plate Mountable from Rear or Front
• Plate Includes Safety Locks and Safety Release
• Plate Includes 1/4”-20 and 3/8”-16 Mounting Threads
• 2-Stage/3-Section
• Includes Mid-Level Spreader
• Removeable Rubber Feet
• Retractable Foot Spikes for Soft Ground

Technical Specifications

What's Included
1 x GA752S Aluminum Tripod Legs
1 x 75BF 75mm Flat Base
1 x GS01 Mid-Level-Spreader
1 x P6 Mounting Plate
3 x F3 Rubber Feet
Shipping Weight (lbs)
10.1
Shipping Dimensions (in)
31 x 8.2 x 8.2
Tripod
Payload Range
66 lbs / 30kg
Maximum Height
61.4”
Minimum Height
25.2”
Collapsed Height
29.1”
Bowl Size
75mm ball
Stages
2
Sections
3
Spreader Type
Mid-Level
75mm Flat Base
Diameter
4.3” / 110mm
Net Weight
0.5 lbs. / 215g
Quick Release Plate
Dimensions
4.7” x 3.9 x 1”
Net Weight
.7 lbs
UPC Code
847983034772
