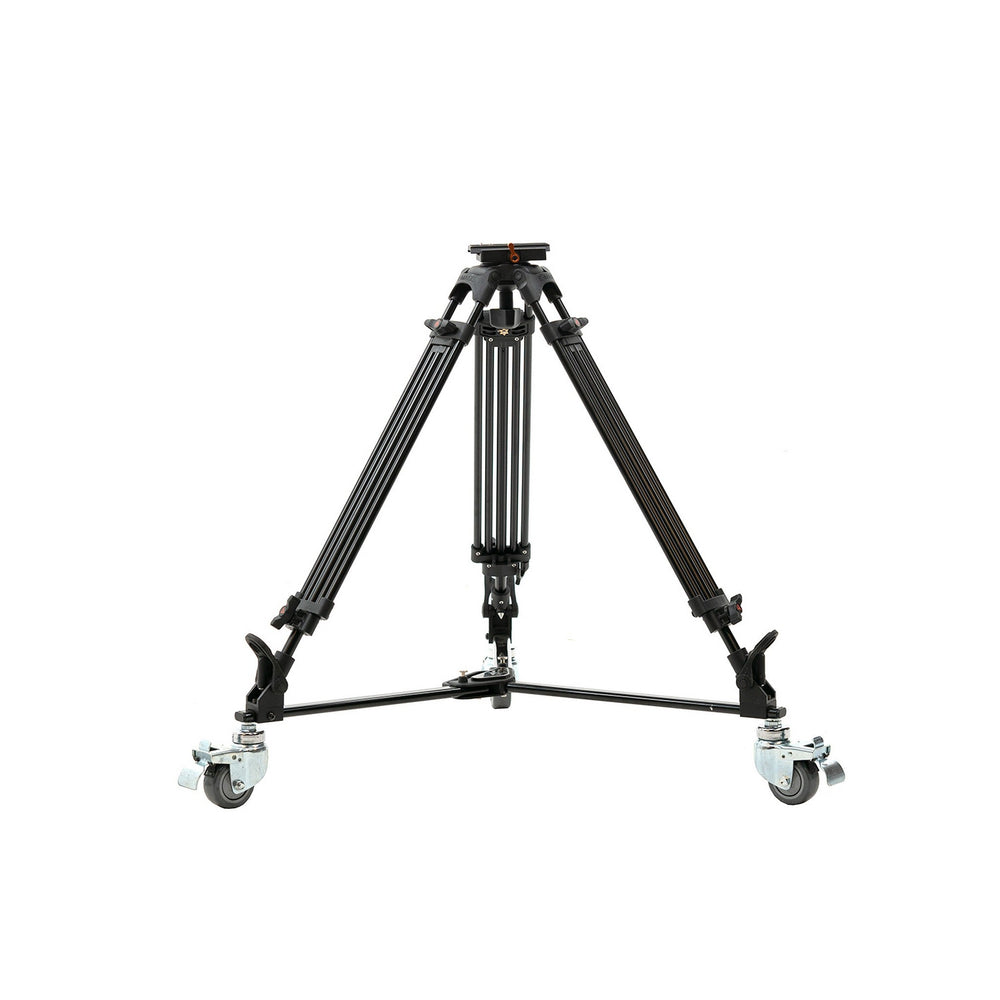

E-Image GA752SD-PTZ Aluminum Tripod with Dolly/75mm Flat Base and Quick Release for PTZ Cameras

E-Image GA752SD-PTZ Aluminum Tripod with Dolly/75mm Flat Base and Quick Release for PTZ Cameras

The E-Image GA752-PTZ Tripod System is the perfect solution for mounting your PTZ camera on a stable and portable tripod platform that eliminates wobbling or vibration. The bundle includes a two-stage aluminum tripod that can support up to 66 lbs, a 75mm Flat Base, a PTZ camera quick-release-plate, & a dolly with wheels. This package makes for an ideal solution for your PTZ camera.

The lightweight and durable aluminum tripod legs make it easy to set up on-location and quickly pack up after an event or use it as a permanent camera position in a studio.

IDEAL PTZ SOLUTION
While the tripod legs are still absolutely essential for stability, using a PTZ camera eliminates the need for a tripod head. The GA230S-PTZ replaces the fluid head with a P6 Quick-Release plate, creating a more straightforward solution. The P6 plate includes a spring-loaded thumb screw that will allow you to fasten the tripod plate without ever touching the camera. This works by pulling the thumb screw outwards away from the camera and readjusting the angle of the screw to continue tightening.

75MM TRIPOD
The GA752S’s unique features include the E-Image 3-Section Aluminum Legs and a payload capacity up to 88 pounds. It is made of lightweight aluminum, has a 75mm bowl, and features a twin-tube leg design. The tripod can be adjusted to a maximum height of 62” and a minimum height of 25” with a folded length of 29”. An adjustable mid-level spreader provides extra security and stability.

MOUNTING POINTS
The P6 quick-release plate itself also includes two mounting threads; a 1/4”-20 thread & a 3/8”-16 thread. These would be ideal for mounting lighter accessories like a shotgun mic, LED light, monitor, wireless transmitter, tally light, or any other accessories you might need.

HEAVY-DUTY DOLLY
The dolly supports up to 88.2 lbs and is ideal for moving tripods along a flat surface for quick repositioning between shots. The adjustable rubber foot mounts provide a quick and easy setup. This dolly is perfect for both studio and on-location use and offers a much safer & convenient transport.

Key Features

• Convenient Tripod & Dolly Kit for PTZ Camera Setups
• Height Range (w/ Dolly): 67.1” - 30.9”
• Max Payload: 66 lb.
• Plate Mountable from Rear or Front
• Plate Includes Safety Locks and Safety Release
• Plate Includes 1/4”-20 and 3/8”-16 Mounting Threads
• 2-Stage/3-Section
• Dolly w/ Locking Wheels

Technical Specifications

Shipping Weight (lbs)
10.1
Shipping Dimensions (in)
31 x 16.9 x 8.2
What's Included
1 x GA752S Aluminum Tripod Legs
1 x 75BF 75mm Flat Base
1 x GS01 Mid-Level-Spreader
1 x P6 Mounting Plate
3 x F3 Rubber Feet
1 x EI-7003 Dolly
Tripod
Payload Range
66 lbs / 30kg
Maximum Height
61.4”
Minimum Height
25.2”
Collapsed Height
29.1”
Bowl Size
75mm ball
Stages
2
Sections
3
Spreader Type
Mid-Level
75mm Flat Base
Diameter
4.3” / 110mm
Net Weight
0.5 lbs. / 215g
Quick Release Plate
Dimensions
4.7” x 3.9 x 1”
Net Weight
.7 lbs
Pedestal
Net Weight
7.7 lbs./3.5 kg
Footprint Diameter
39.4 in./100 cm
Height
5.7 in./14.5 cm
Radius
19.7 in./50 cm
Wheel Width
2.95 in./75 mm
Lockable Wheels
Yes
Build Material
Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload
88.2 lbs./40 kg.
UPC Code
847983034802
