Eliminator Lighting Mega Flat Hex L PAK4 4 x 20-Watt, 6-In-1 RGBLA + UV LED Fixture

Introducing the Eliminator Lighting Mega Flat Hex L Pak4 - Your Ultimate Lighting Solution
Looking for a comprehensive and energy-efficient lighting system that won't let you down? The Eliminator Lighting Mega Flat Hex L PAK4 4 x 20-Watt, 6-In-1 RGBLA + UV LED Fixture is exactly what you need. Equipped with four Mega Hex L Par LED lights, each featuring four 20-Watt 6-IN-1 Hex LEDs, this system is a true powerhouse.

With its RGBLA+UV capabilities, the Mega Flat Hex L Pak4 allows for the creation of stunning hues, including hot pink, lime green, and electric blue. What's more, the innovative “sit-flat” design enables seamless daisy-chaining of DMX and power cables, while the rubber feet make it easy to place on the ground, perfect for uplighting. The scissor yoke also offers versatile truss hanging options.

With the added Lime LED chips, the Mega Flat Hex L Pak4 provides a remarkable CRI of over 90, ensuring superior light quality. The tunable white color temperature control, ranging from 2300K to 9900K, grants you flexibility in lighting performers.

The Mega Flat Hex L Pak4 offers seamless color mixing, 15 White Color Temperature presets, and 63 built-in Color Macros with 13 programs for stunning visual displays. With various control options and a user-friendly OLED display, you have ultimate creative control.

This fixture offers flicker-free performance, electronic dimming, and 6 Dimmer Curve Modes. With daisy-chain capabilities, you can connect up to 20 fixtures at 120V or 40 fixtures at 230V for larger setups.

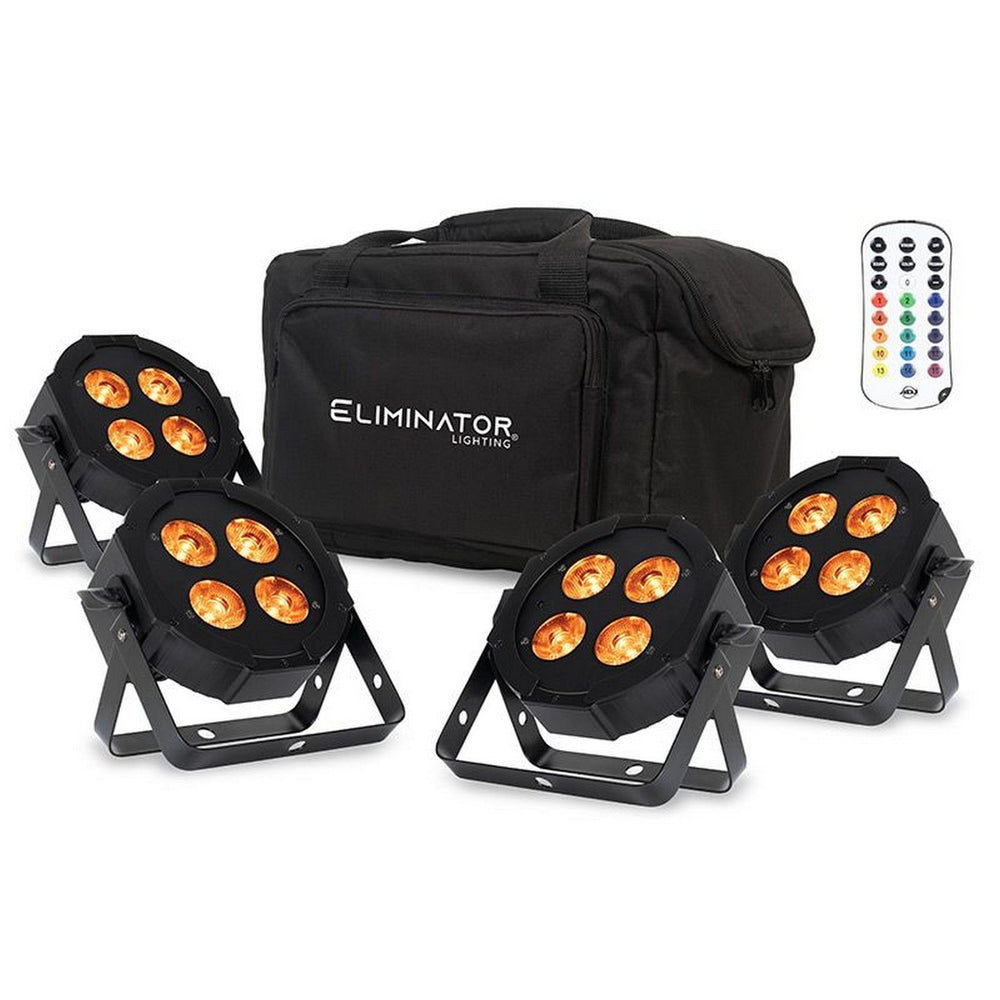

Compact and lightweight, each light measures 10.25” x 10.25” x 4.25” and weighs just 4 lbs. The system includes power and DMX cables, a carry bag, and a wireless remote for convenience.

Whether you're lighting up a stage or creating an architectural masterpiece, the Eliminator Lighting Mega Flat Hex L Pak4 is your versatile, energy-efficient solution. Elevate your lighting experience today!

Key Features

• The comprehensive system consists of four Mega Hex L Par LED lights.
• Each LED light is equipped with four 20-Watt 6-IN-1 Hex LEDs.
• The LEDs offer a wide range of colors, including hot pink, lime green, and electric blue.
• The system has RGBLA + UV capabilities for creating captivating hues.
• It features white color temperature control ranging from 2300K to 9900K.
• There are 15 white color temperature presets available.
• The system includes 63 built-in color macros.
• It also offers 13 built-in programs.
• The system ensures flicker-free operation.
• Electronic dimming is available from 0 to 100%.
• There are 6 dimmer curve modes to choose from.
• The system provides a color strobe effect.
• The LEDs have a lifespan of 50,000 hours.

Technical Specifications

Source
4 x 20-Watt, 6-IN-1 Hex (RGBLA+UV) LEDs (50,000 hrs.)
CRI
>90
Lumens
1100
Beam Angle
17-degrees (native); 20-degree (with frost filter)
Effects
White Color Temperature Control (2300K - 9900K)
15 White Color Temperature Presets
63 built-in Color Macros
13 built-in programs
Flicker Free
Electronic Dimming
0-100%
6 Dimmer Curve Modes
Color strobe effect
Control
7 DMX Channel modes
6, 8, 9, 12, 14, 15 and 17 channel modes
5 Operational modes
Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16 Modes), RGBLA + UV Dimmer Mode, Static Color Mode (63 Colors), and DMX Controlled
4-button with OLED display menu for easy navigation
Stand Alone or Primary/Secondary Configuration
DMX-512 protocol
Connections
3-pin DMX Inputs/Outputs
IEC AC input and output on the side of the fixture to daisy chain the power (link up to 20 fixtures @120V, up to 40 fixtures @230V)
With Wired Digital Communication Network
Electrical
Multi-voltage operation
AC 100V-240V 50/60Hz
Power Draw
24W Max
Dimensions / Weight
Dimensions (LxWxH)
10.25”x 10.25”x 4.25”/ 261x260x110mm
Weight
4 lbs./ 1.87 kg.
Included Items
Includes the ADJ UC IR24 wireless IR remote
IEC Power Cord
20-degree Frost Filter
Scissor yoke
