Elmo TT-12G 4K Document Camera
Description
Description

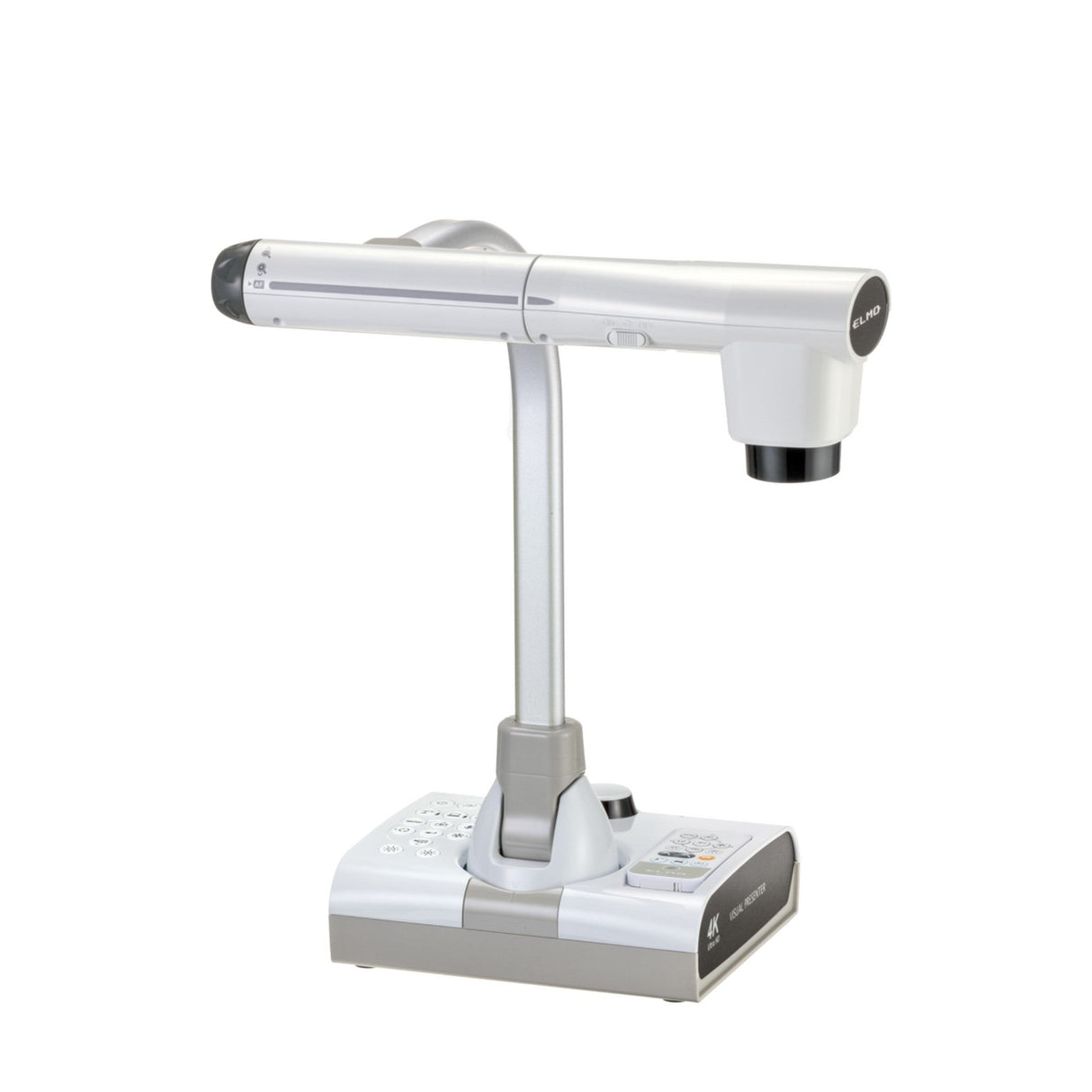

Elmo TT-12G 4K Document Camera
The TT-12G maintains the superior 4K UltraHD image quality and powerful 12x optical zoom lens, and award-winning design that you’re used to while it adds some important features for today’s changing presentation landscape. TT-12G offers built-in Miracast wireless display technology, with auto-reconnect, for a more enhanced experience. The USB 3.0 Type-B output port has been changed to the more modern USB-C. Also added is the ability to pass your input source to the USB output for sharing via your favorite UC applications. These are just a few new features added to the TT-12G and we look forward to getting one in your hands.
Technical Specifications
Image Sensor
12M 1/2.3"
Optical Zoom
12x
Digital Zoom
16x
Total Zoom
192x
Lens / Aperture
F=3.2-3.8
Auto focus
One-Push / Manual
Shooting Area
Max. 430x319mm, Min. 53.6x40.3mm (4:3)
Max. 469x259mm, Min. 58.5x33mm (16:9)
Focal Range
WIDE: 50mm~ TELE: 200mm~
TV Lines Resolution
Horizontal 1600TV (4K)
Vertical 1600TV (4K)
USB (MJPEG) Resolution
3840x2160@30fps
1920x1080@60fps
HDMI Resolution
4K/30fps,1080P/60fps, 720p/60fps
RGB Resolution
1080P/XGA
Simultaneous output (USB/HDMI/RGB)
Yes
Miracast
Yes (Max. 1080p)
Built-in Microphone
Yes
Audio Selection
(1) Microphone related
Input: Built-in microphone / External microphone and line input are used together
Output: Line output
(2) HDMI audio: HDMI output of external HDMI input audio only. No output of camera image audio
Audio ON/OFF
Software Selection
Recording save locations
(1) USB flash drive (still images/video)
(2) SD card (still image/video)
(3) Internal memory (still images)
Priority: USB memory > SD card > Internal storage
Record / Playback SD Card
Resolution Up to 4K (8 to 4 Mbps)
Built-in microphone sound is included in video.
Video recording is not possible during USB image output.
OSD View
HDMI/RGB/USB
Start Up Time
Approx. 15 sec.
Classroom Support Functions
Highlight / Mask / Microscope / Compare Picture / PinP
Image Rotation
0°/90°/180° / Mirror / Flip
Drawing Fucntion
Mouse / CRA-2 / CRB-3
LED Lighting
Yes
Input
External Microphone: 3.5mm Stereo Mini Jack x 1
VGA: D-sub (Passthrough)
HDMI: HDMI Type A (Passthrough)
USB host: USB2.0 TypeA x 1 USB Memory
Output
USB Device: USB2.0 TYPE C (UVC/UAC)
VGA: D-sub (Passthrough)
HDMI: HDMI Type A (Passthrough)
Line Out: 3.5mm Stereo Mini Jack x 1
SD Card
Max32GB (FAT32)
Wi-Fi Radio Bandwidth
2.4/5GHz
Remote Control
Yes
Power Supply Voltage
12V DC Jack
Power Consumption
21.6W
Weight (Main Unit Only)
6.6 Lbs.
Dimensions
Setup: 349(W)x432(H)x377(D)mm
Folded: 195(W)x475(H)x294(D)mm
Accessories
AC Adapter, Power Cord, USB Cable, Quick Start Guide, HDMI Lock x2, Cable Tie x2, Remote Control, Coin Battery
