Elmo TT-12G 4K Ultra HD Document Camera with Elmo Cast
Description
Description
Elmo TT-12G 4K Ultra HD Document Camera with Elmo Cast
New and improved with 4K Ultra HD Resolution, displaying the sharpest and most clear images in its class. See every hidden detail vividly with its 192x Total Zoom. Ergonomically designed to be flexible, show new angles while engaging with your audience. It comes with built-in Miracast for convenient wireless sharing on any display device.
192x Zoom in 4K Ultra HD
The TT-12G offers 192x digital zoom at 4K resolution, capturing video in True 4K Ultra HD at 30fps or Full HD at 60fps without any loss of quality.
Endless Connection with HDMI & RGB Passthrough
The TT-12G comes with High Speed USB 2.0 for up to 4K resolution, HDMI, and RGB/VGA output options to connect seamlessly to a wide variety of devices.
4K Ultra HD Resolution
Razor Sharp and Crystal-Clear Imaging with 4K Ultra HD Resolution
Display Wirelessly
Connection made easy with Miracast Display.

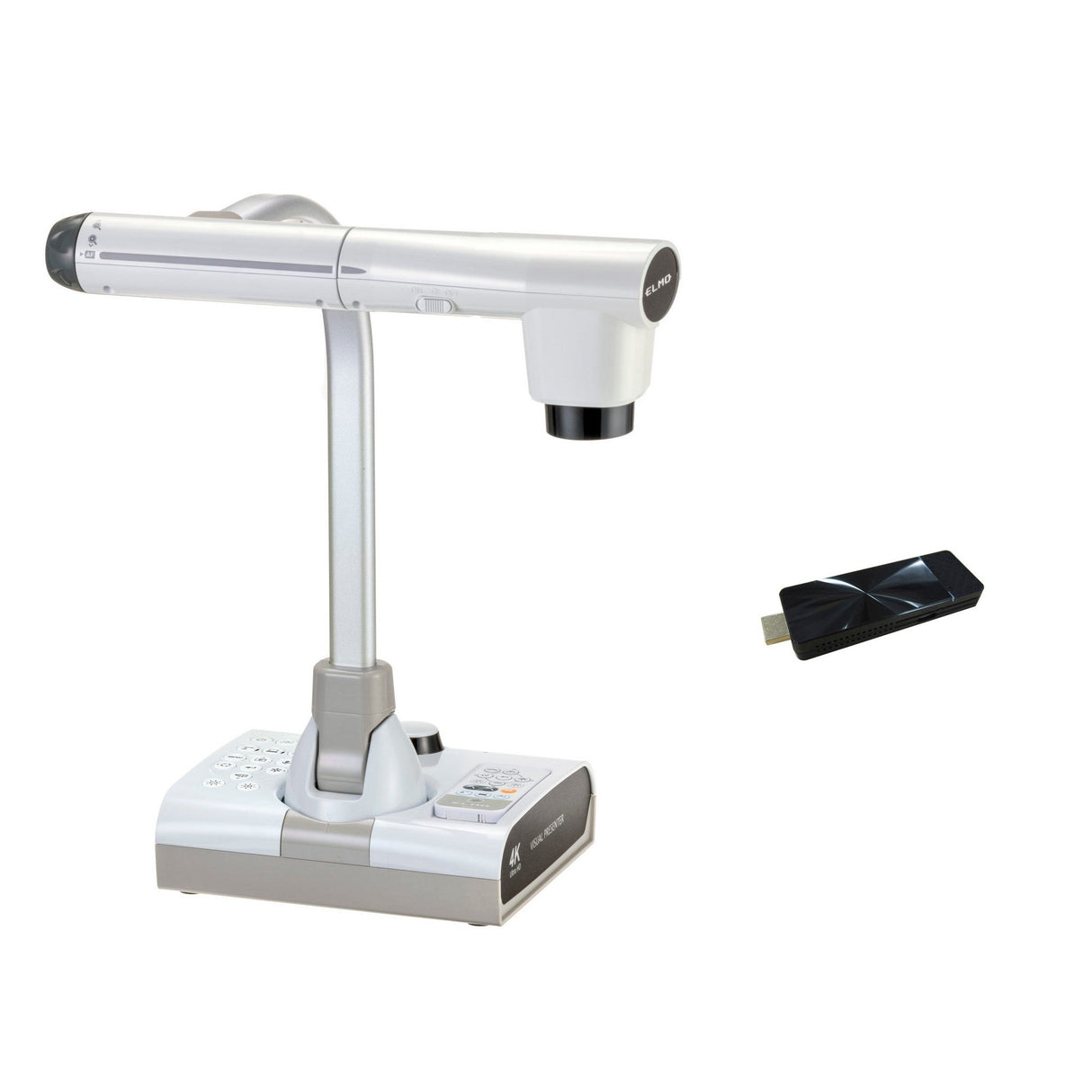

Elmo Cast
Enhance your wireless presentation capabilities and provide your audience with an experience they’ll never forget. ELMO Cast effortlessly streams your multimedia presentation from any mobile device or ELMO STEM-CAM in up to 4K Ultra HD resolution.
ELMO Cast provides wireless video streaming in up to 4K Ultra HD resolution using the latest in Wi-Fi casting technology. The 5GHZ 802.11ac Wi-Fi radio with a high sensitivity 2T2R MIMO antenna offer the highest possible bandwidth. The highly efficient System on Chip (SoC) design and 1GB DDR3 memory mean a super low latency signal and minimal lag. ELMO Cast is HDMI 1.4 compliant to support 4K Ultra HD video and audio.
Technical Specifications
IMAGE SENSOR
12M 1/2.3"
OPTICAL ZOOM
12x
DIGITAL ZOOM
16x
TOTAL ZOOM
192x
LENS / APERTURE
F=3.2-3.8
AUTO FOCUS
Auto (One-push / Zoom Sync), Manual
SHOOTING AREA
Max. 430x319mm, Min. 53.6x40.3mm (4:3) Max. 469x259mm, Min. 58.5x33mm (16:9)
FOCAL RANGE
WIDE: 50mm TELE: 200mm~
SIMULTANEOUS OUTPUT (USB/HDMI/RGB)
Yes
MIRACAST
Yes (Max. 1080p)
BUILT-IN MICROPHONE
Yes
AUDIO SELECTION
(1) Microphone related
Input: Built-in microphone / External microphone and line input are used together.
Output: Line output
(2) HDMI audio: HDMI output of external HDMI input audio only. No output of camera image audio.
AUDIO ON/OFF
Software Selection
RECORDING SAVE LOCATIONS
(1) USB flash drive (still images/video)
(2) SD card (still image/video)
(3) Internal memory (still images)
Priority: USB memory > SD card > Internal storage
RECORD / PLAYBACK SD CARD
Resolution Up to 4K (8 to 4 Mbps)
Built-in microphone sound is included in video.
Video recording is not possible during USB image output.
OSD VIEW
HDMI/RGB/USB
START UP TIME
Approx. 15 sec.
CLASSROOM SUPPORT FUNCTIONS
Highlight / Mask / Microscope / Compare Picture / PinP
IMAGE ROTATION
0°/90°/180° / Mirror / Flip
INPUT SELECTION
Main / External
OUTPUT TERMINALS
USB Device, USB2.0 TYPE C (UVC/UAC)
VGA D-sub (Passthrough)
HDMI Type A (Passthrough)
Line Out 3.5 mm stereo Mini Jack x 1
INPUT TERMINALS
External Microphone 3.5mm Stereo Mini Jack x 1
VGA D-sub (Passthrough)
HDMI Type A (Passthrough)
USB host, USB 2.0 Type A x 1 USB Memory
RESOLUTION
TV Lines : Horizontal 1600TV (4K) / Vertical 1600TV (4K)
USB (MJPEG) : 3840x2160@30fps / 1920x1080@60fps
HDMI : 4K/30fps,1080P/60fps, 720p/60fps
RGB 1080P/XGA
LED LIGHTING
Yes
SD CARD
Max32GB (FAT32)
REMOTE CONTROL
Yes
POWER SUPPLY VOLTAGE
12V DC Jack
POWER CONSUMPTION
21.6W
WEIGHT (MAIN UNIT ONLY)
6.6 Lbs.
DIMENSIONS (WXDXH)
Setup: 13.7(W)x17(H)x14.8(D)in
Folded: 7.6(W)x18.7(H)x11.5(D)in
ACCESSORIES
AC Adapter, Power Cord, USB Cable, Quick Start Guide, HDMI Lock x2, Cable Tie x2, Remote Control, Coin Battery
