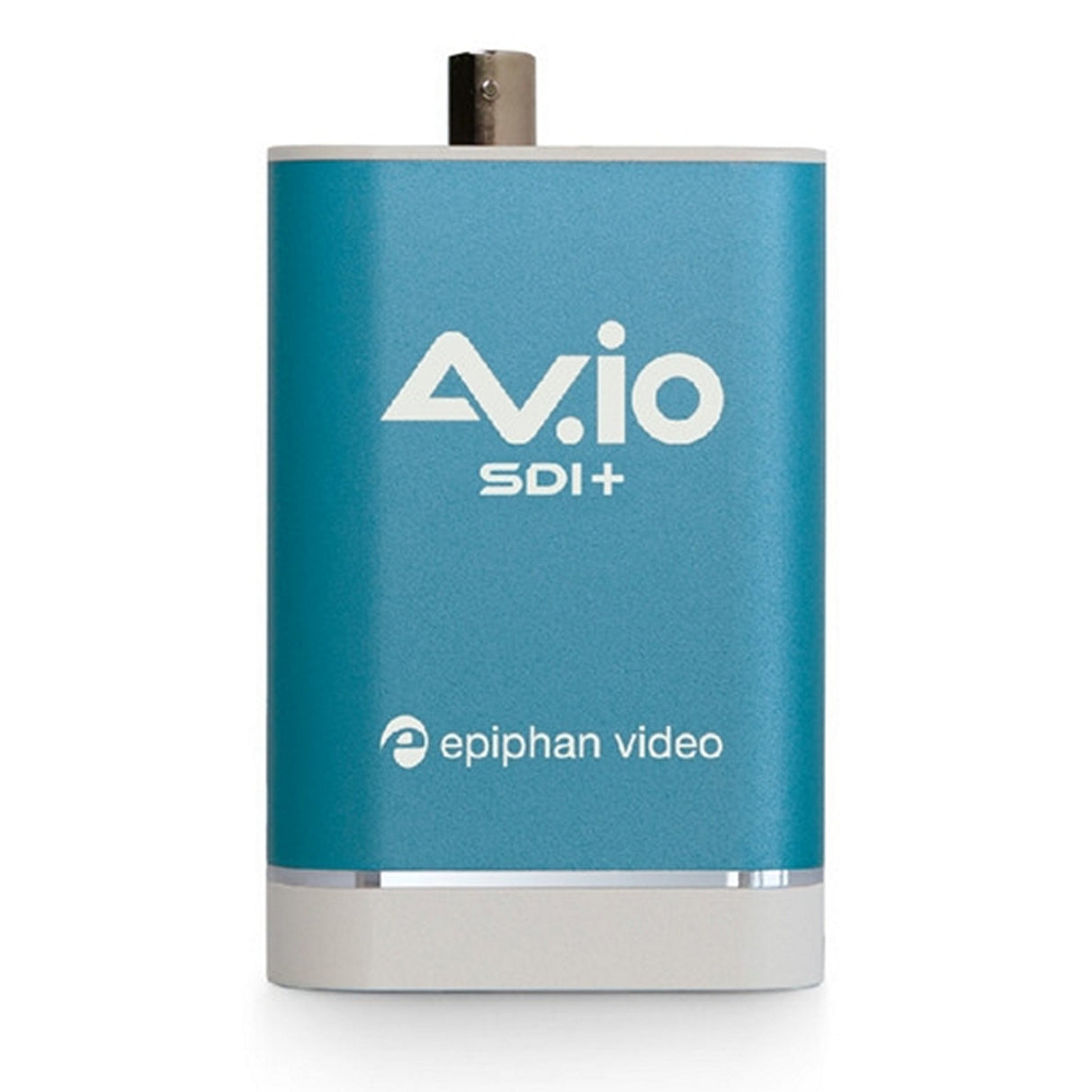

Epiphan AV.io SDI+ SDI to USB Video Capture Device

Epiphan AV.io SDI+ SDI to USB Video Capture Device

Epiphan AV.io SDI+ brings USB plug-and-play convenience to your SDI sources. You can easily capture 1080p video from any SDI camera or device with nearly zero latency, bringing in audio through HDMI, the 3.5 mm input, or both. This card is compact and based on tough-as-nails technology that’s even been used in space, so you can confidently carry it wherever there’s video to capture.

Make video capture effortless

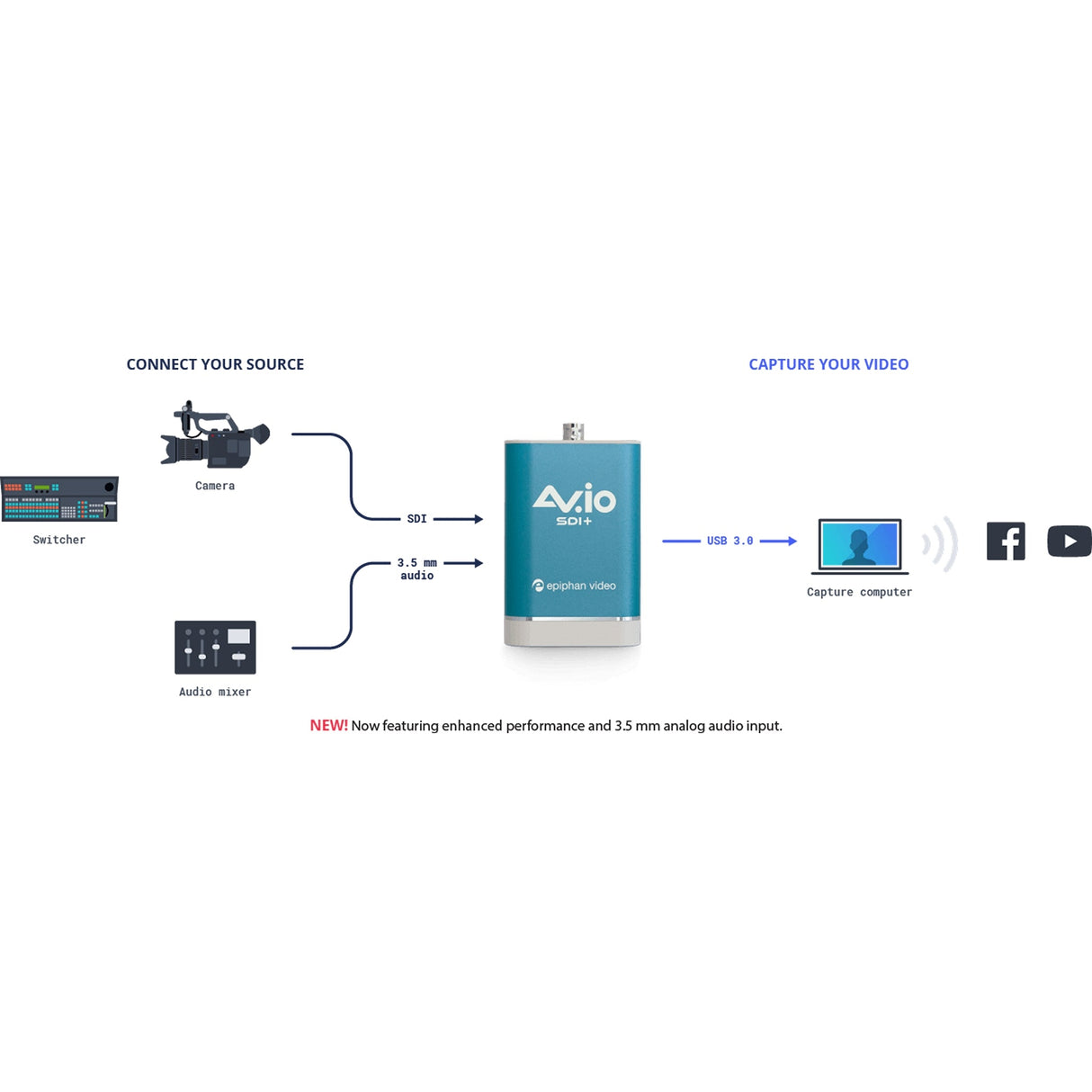

With AV.io SDI+, capturing video from SDI devices on Windows, Mac, or Linux is as easy as using a plug-and-play webcam. Simply connect any 3G-SDI, HD-SDI, or SD-SDI device to one end of the capture card and your computer to the other, then select your device as a source in your software. That’s all there is to it - no driver installation required.

Take your capture card with you
AV.io SDI+ is light and compact. It’s powered over USB, which means one less adapter to carry around. And with its rugged all-metal exterior and durable connectors, it’ll stand up to repeated, long-term use.

Size and scale effortlessly
There’s no need to think about video scaling or aspect ratios with this capture card. AV.io SDI+ will automatically adjust your image based on the software you’re using, delivering superior video quality even when swapping between sources.

Elevate your favorite apps
You can use AV.io SDI+ with any program that accepts USB as a video source. That includes video conferencing apps like Zoom and Microsoft Teams as well as streaming software such as Wirecast and OBS.

Technical Specifications

Interface
USB 3.0, USB 2.0
OS drivers
UVC and UAC device
Dimensions
3.54” x 2.36” x 0.91” (90 mm x 60 mm x 23 mm)
Connectors
SDI (BNC-style), USB 3.0 B-Type connector
Input
3G-SDI, HD-SDI, SD-SDI (including embedded audio for 3G-SDI and HD-SDI), 3.5 mm analog (audio)
Input resolution
Up to 1920x1080
Output formats
Note: Third-party software will set frame size and frame rate.

320x240, 640x360, 640x480, 720x480, 720x576, 768x576, 800x600, 856x480, 960x540, 1024x576, 1024x768, 1152x864, 1280x1024, 1280x720, 1280x800, 1280x960, 1360x768, 1366x768, 1440x900, 1600x1200, 1600x900, 1680x1050, 1920x1080, 1920x1200
5 fps to 60 fps
Output color space
YUV 4:2:2
Capture latency
Near-zero (third-party applications may add to capture delay)
SDI audio (input)
16-bit and 24-bit PCM encoded audio 48 kHz (audio capture supported from 3G-SDI and HD-SDI*)
Audio output
16-bit 48 kHz stereo audio
LED
One LED to indicate status (power, readiness, operation in progress)
Power consumption
<400ma
OS support
Windows 10 and up, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher supported
