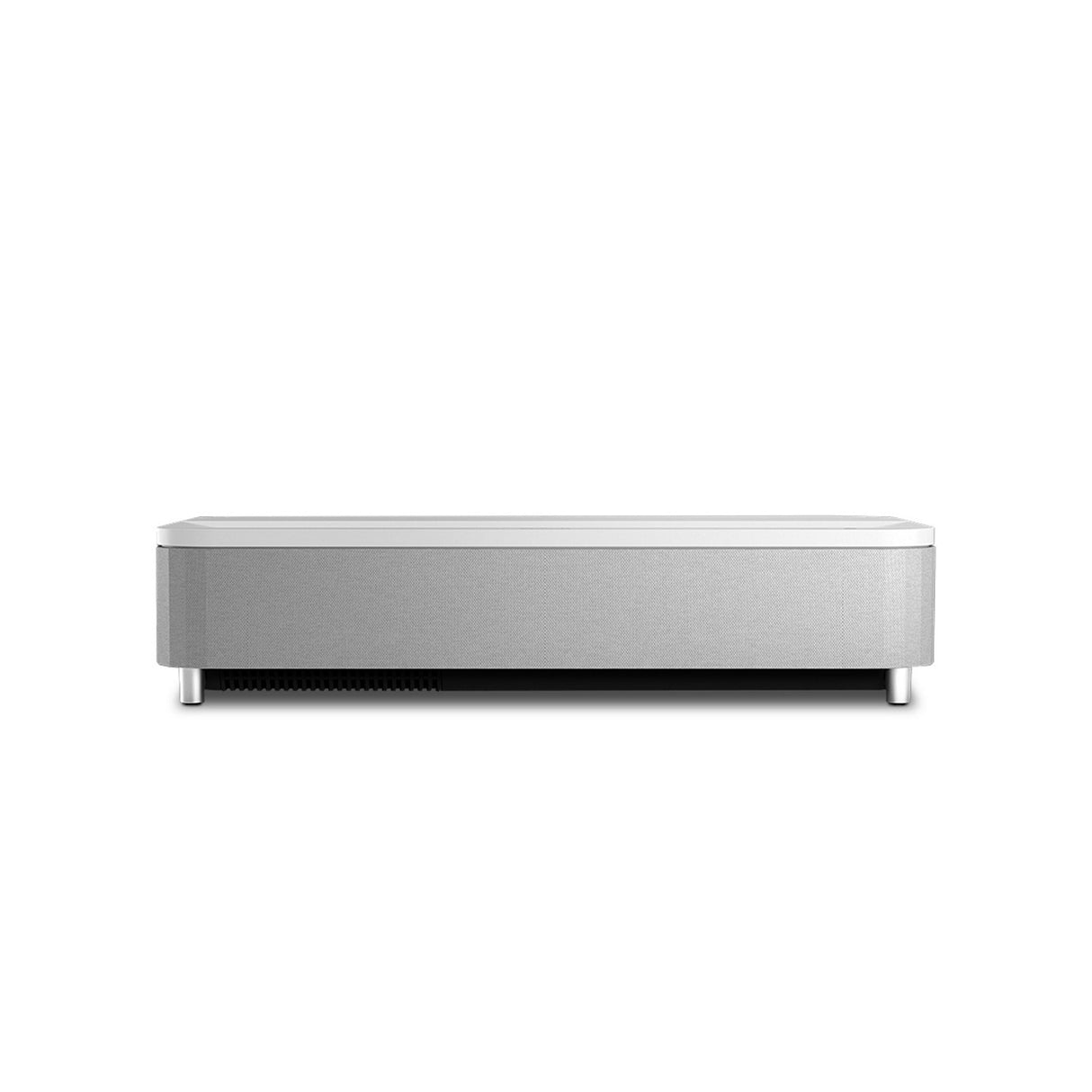

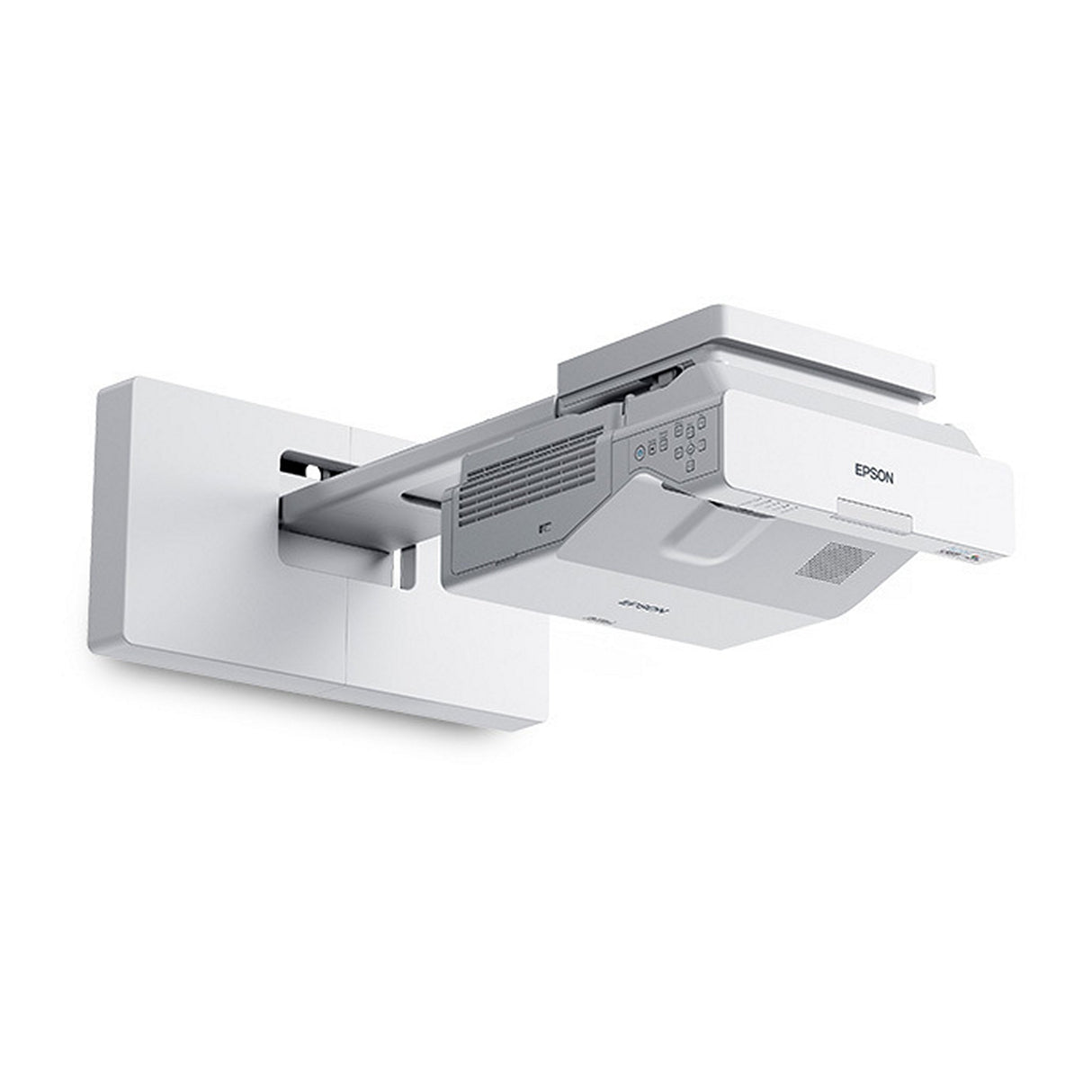

Epson BrightLink 725Wi WXGA 3LCD Interactive Laser Display

Epson BrightLink 725Wi WXGA 3LCD Interactive Laser Display

Bring bright, easy-to-read projection to your classroom with the BrightLink 725Wi interactive laser display. Providing 4,000 lumens of color and white brightness1 and 3LCD technology, this state-of-the-art interactive WXGA display delivers true-to-life 16:10 images up to 100" and offers 85 percent more interactive space vs. a 75" flat panel2. A convenient and seamless solution, the BrightLink 725Wi works with new or existing touch modules for BrightLink 595Wi/695Wi models, and features built-in wireless, automatic image alignment and pen calibration for time-saving installation. Plus, it provides a virtually maintenance-free, 20,000-hour laser light source engine with no lamps to replace ever3. Designed to enhance classroom collaboration, the BrightLink 725Wi instantly makes nearly any wall or whiteboard interactive, supporting up to eight users when used with new or existing touch modules.

BrightLink training resources
Browse training videos and resources for BrightLink interactive displays

Ultra bright
4,000 lumens of color and white brightness

Large, true-to-life images
WXGA display; projects high-quality, easy-to-read 16:10 displays up to 100" diagonal

Laser light source life
Virtually maintenance-free 20,000-hour laser light source with no lamps3

Lowest cost per square inch vs. interactive panels
Up to 85 percent more interactive space vs. 75" flat panel

Time-saving installation
Automatic image alignment and pen calibration makes installation easier than ever before

Key Features

• 4,000 lumens of color/white brightness
• WXGA display; project up to 100" diagonal
• 20,000-hour laser light source; no lamps
• Up to 85 percent more interactive space vs. 75" flat panel
• Time-saving installation
• PC-free digital whiteboard - draw, save, print and email without a PC; also view shared whiteboard content from other networked BrightLink 1480 series projectors
• Built-in 5GHz wireless - supports wireless interactivity via Miracast® and wireless displays; display and share content simultaneously to/from up to 50 connected devices4 via Epson iProjection™ software
• Easy replacement of BrightLink 595Wi/695Wi series - using existing cables, mount and touch module
• BrightLink GoBoardTM Collaborative Whiteboarding Software - 1-year free trial offer

Technical Specifications

Projection System
Epson® 3-chip 3LCD technology
Projection Method
Front/rear/wall mount/table mount
Driving Method
Epson Poly-Silicon TFT Active Matrix
Pixel Number
1,024,000 dots (1280 x 800) x 3
Color Brightness
Color Light Output: 4,000 lumens
White Brightness
White Light Output: 4,000 lumens
Aspect Ratio Supports
4:3, 16:10, 16:9*, 16:6*
*With vertical image shift control within letterbox area
Native Resolution
1280 x 800 (WXGA)
Light Source
Laser
Light Source Life
Up to 20,000 hours
Size (Projected) (16:10) 100"
Keystone Correction (Manual)
Horizontal: ± 3 degrees;
Vertical: ± 3 degrees
USB Plug ’n Play
Mac OS® 10.8/10.9/10.10/10.11/10.12/
10.13/10.14/macOS 10.15.x
USB Plug ’n Play for Windows®
Windows 7/Windows 8/
Windows 10
Contrast Ratio
Up to 2,500,000:1
Color Reproduction
Up to 1.07 billion colors
Supported Security Modes
OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Supported Speeds
IEEE 802.11b: 11 Mbps* (2.4 GHz)
IEEE 802.11g: 54 Mbps* (2.4 GHz)
IEEE 802.11n: 72.2 Mbps* (2.4 GHz)
IEEE 802.11a: 54 Mbps* (5 GHz)
IEEE 802.11n: 150 Mbps* (5 GHz)
IEEE 802.11ac: 325 Mbps* (5 GHz)
*Maximum speed and range are achievable when used with the same Enhanced Mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.
Projection Lens Type
Manual focus
F-Number
1.6
Focal Length
3.7 mm
Throw Ratio Range
0.28 - 0.37 (16:10)
Zoom Ratio Digital zoom
1.0 - 1.35x
Speaker
16 W monaural
Operating Temperature
41-deg to 104 ˚F (0-deg to 40 ˚C)
Power Supply Voltage
100 - 240 V ±10%, 50/60 Hz
Auto Power On
Signal Detection on HDMI / Plug-in Detection
(HDMI, USB, VGA 15-pin, BNC)
Sleep Mode
Yes (with timer)
Power Consumption
Quiet Mode: 206 W
Normal Mode: 267 W
Standby (Communication On): 2.0 W
Standby (Communication Off): 0.5 W
Fan Noise
Quiet Mode: 26 dB
Normal Mode: 36 dB
Security
Kensington lock provision, security anchor bar, password-protection function
Interfaces
HDMI®: 3x (with CEC Control)
Composite Video: 1x RCA (yellow)
Audio In: 3x Mini stereo
Audio Out: 1x Mini stereo
Microphone In: 1x Mini stereo
USB Connector: 2x Type-A (1x USB memory/document camera;
1x wireless only)
USB Connector: 2x Type-B (USB display with audio and interactivity)
Serial: 1x RS-232c
Monitor Out/Computer: 1x D-sub 15 pin
Computer: 1x D-sub 15 pin
Integrated Wireless LAN: 802.11 b/g/n/ac
Interactive Synchronization Mini Stereo In
Interactive Synchronization Mini Stereo Out
Touch Unit Connection Port
Interactive Technology
Infrared, 850 nm
Interactive Area (Image Size)
100" diagonal (16:10)
Interactive Modes
Computer Interactivity, PC-Free and
Whiteboard Annotation Mode; Pen: Dual User; Finger Touch: Up to 6 points of touch
PC-Free Annotation
Two pens and two fingers
Interactive Tools
Epson Easy Interactive Tools; two pens and six fingers
PC Interactive Sources
USB, HDMI, Computer 1, Computer 2, LAN, Miracast
PC-Free Annotation Devices
Document Cameras, DVD/Blu-ray Disc™ players, iPod®/iPad® devices, Chromebooks
Calibration Method
Automatic or Manual
Interactive Connectivity
USB cable for non-networked LAN
Interactive Software Requirements
Epson Easy Interactive Driver (required for Mac®)
Mac: Mac OS X® 10.12/10.13/10.14/macOS 10.15.x
Epson Easy Interactive Tools for Windows and Mac
System Compatibility
Microsoft® Windows Vista®, Windows
Vista SP1, Windows Vista SP2 (all editions except for Starter),
Windows 8/8.1, Windows 10, Windows 7 SP1 (all editions
except for Starter), Mac OS 10.11/10.12/10.13/10.14/
macOS 10.15.x
Gestures
Requires Windows 7 or later, or Mac OS 10.12 or later
GoBoard Software Requirements
Windows 10 version 1803 or later
CPU quad-core 2GHz
RAM DDR3 8 GB
Camera and microphone (for AV conferences, voice commands)
Dimensions (W x D x H)
Excluding Feet 14.1" x 15.6" x 5.25"
Weight
12.7 lb
Remote Control Features
Computer, HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, Esc, User, ID, Default, Home, Split
Operating Angle
Rear: Right/Left: -55 to +55 degrees, Upper/Lower: +75 to +15 degrees
Front: Right/Left: -30 to +30 degrees, Upper/Lower: 0 to +60 degrees
Operating Distance
19.7 ft (6 m)
Eco Features
Energy-efficient 3LCD light engine
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner
Support
Service Programs 3-year projector limited warranty, Epson
Road Service Program, dedicated toll-free support
What's In The Box
BrightLink 725Wi ultra short-throw interactive projector
Quick Start Guide
6' power cable
16' USB A/B cable
Projector remote control
Two (2) interactive pens
Four (4) soft pen tips
Two (2) hard pen tips
Pen tray
Two (2) AA batteries (for interactive pens)
Two (2) AA batteries (for remote)
Projector feet
Corner markers, magnets for corner markers
Password protect sticker
BrightLink GoBoard 1-year free trial
