ESE ES-249/UL 1 x 8 ASCII RS232 Time Distribution Amplifier
Description
Description

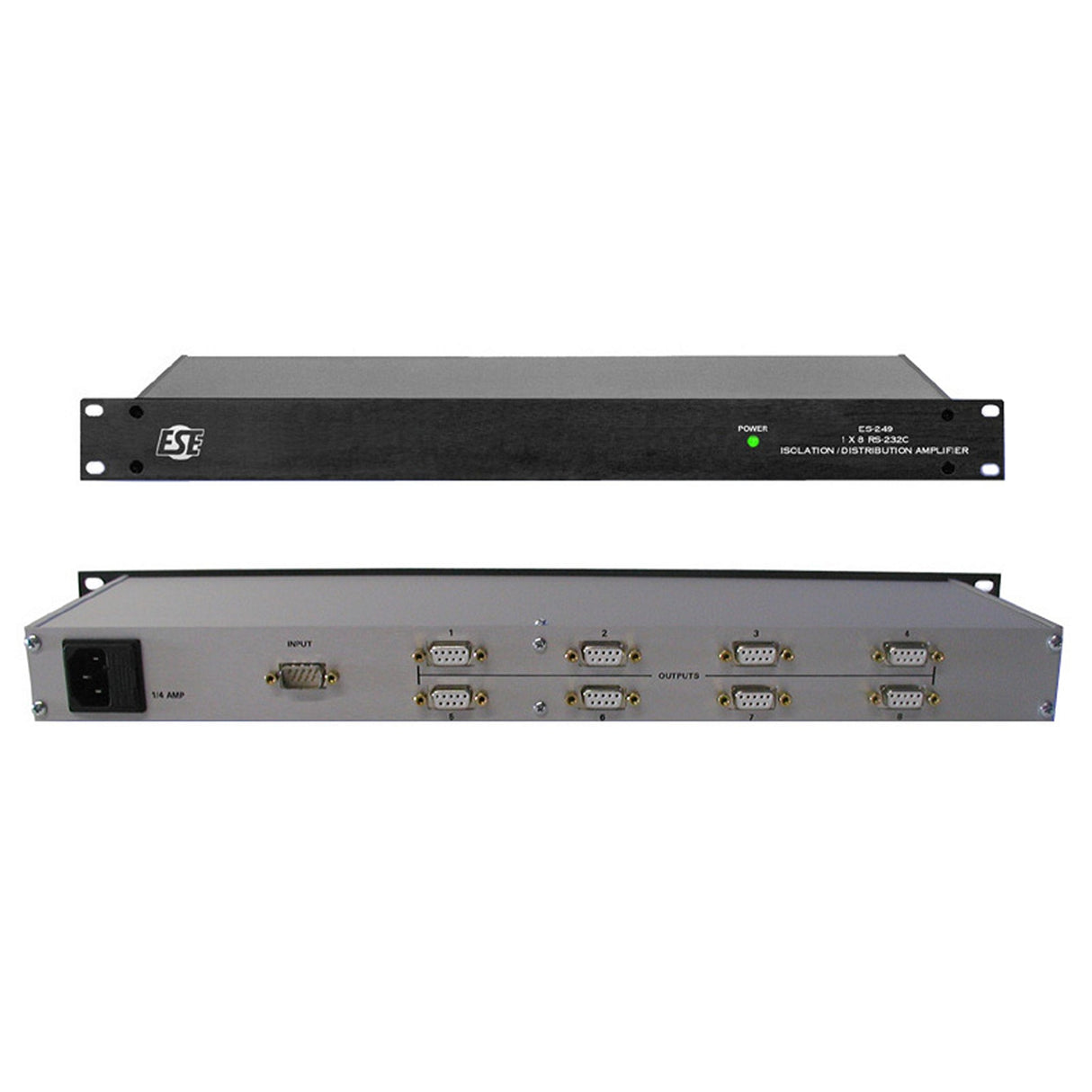

ESE ES-249/UL 1 x 8 ASCII RS232 Time Distribution Amplifier
The ES-249-UL distribution amplifier with UL/CSA approved wall mount power supply is designed to accept RS-232C/ASCII and output up to eight identical copies. The unit has a single input and eight outputs that are accessible on rear mounted 9-pin D-sub connectors. Due to the nature of RS-232C, if long cable runs are required, it may be necessary to utilize a different time code that is later translated into RS-232C.
Key Features
- Use for distributing ASCII Time Codes
- 8 isolated outputs
- Male DB-9 Input connector
- Female DB-9 Output Connectors
- RxD feed thru on Channel 1 output for Query Applications
Technical Specifications
Electrical
117 VAC, 50/60 Hz
Power
2 Watts Maximum
Mechanical
1.75" x 19" x 5" Deep
Time Code
ASCII (RS-232C)
Connectors:
9-Pin D-Sub
Configuration
Single 1 x 8
