ESE LX-362U 100 Minute Master Up/Down Timer

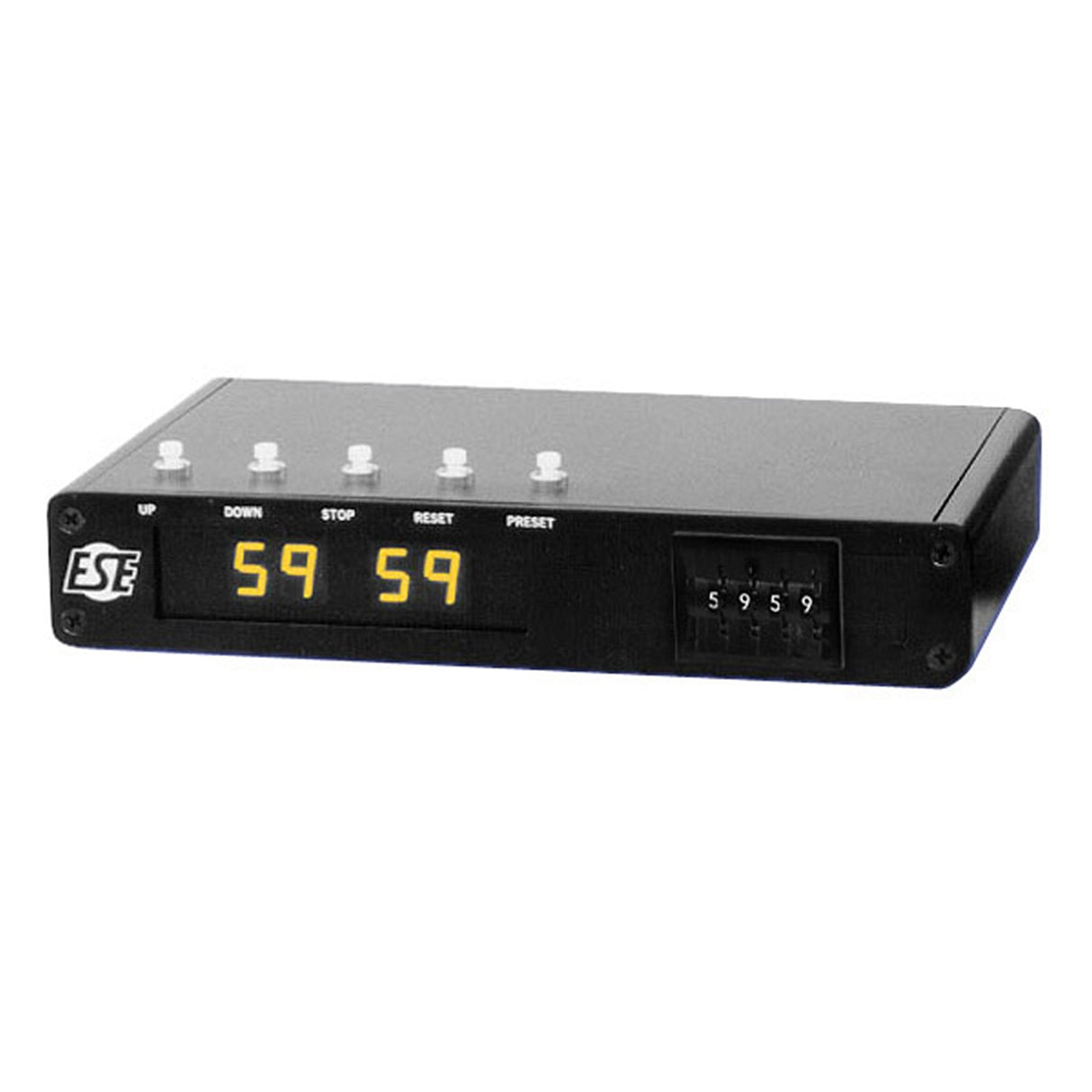

The ESE LX-362U is a 100 Minute Up/Down Timer. The timer is presettable via the front-mounted thumbwheel switch. Up, Down, Stop, Reset-to-zero, and Preset controls are provided on the top of the case. A rear-mounted BNC connector provides the ESE Timer Code for driving remote slave displays. Up to 100 slave displays may be driven, using up to 4000 feet of coaxial cable or twisted pair. A rear-mounted DB-25 connector provides access to remotely control the five pushbutton switch functions. If the relay contact closure option is ordered, the contacts are also accessible on this connector.
Key Features
- .56" Yellow LED Display
- Ruggedized Baked Powdercoat Aluminum case
- 100 Minute Up/Down count range (00:00 - 99:59)
- Thumbwheel Preset
- ESE Timer CodeT output
- Remote Control input
Technical Specifications
Power
5 Watts
Line Cord
3-wire, 6'
Electrical
117 VAC, 50/60 Hz
Enclosure
Anodized Aluminum/Walnut Grain Sides & Top
Mechanical
10" W x 2.5" H x 6" D
# of digits
Four (Minutes & Seconds)
Display Height
.56" Yellow LED
Viewing Distance
20 Feet
Output
ESE TC-89; BNC
Inputs
Up, Down, Stop, Reset, Preset; DB-9
