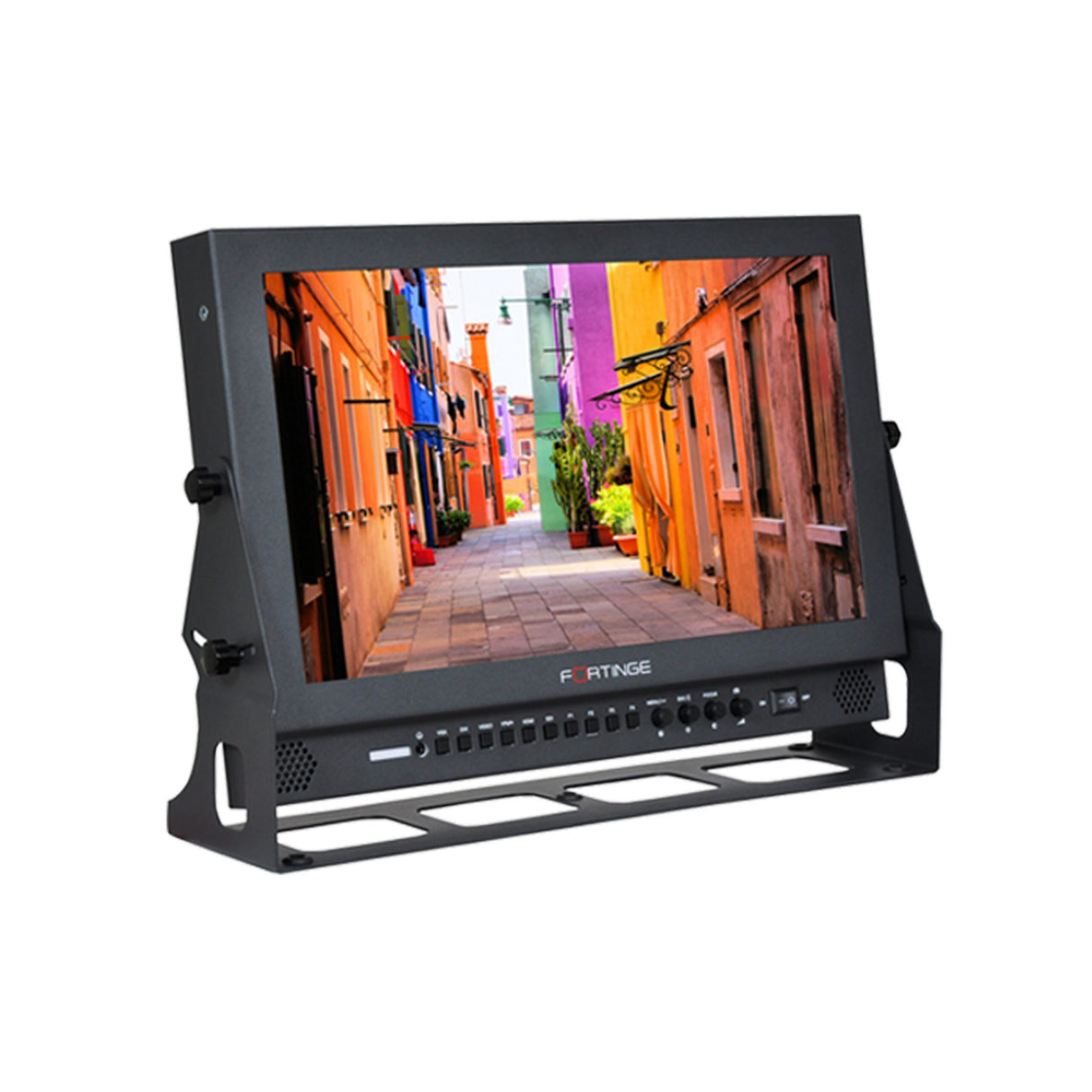

Fortinge PRO173 17.3-Inch Broadcast Monitor
Description
Description
Fortinge PRO173 17.3-Inch Broadcast Monitor
Fortinge Pro173 is an ideal choice for TV Production, Obvan and field use since it is developed as a multiple Professional Broadcast LCD Monitor. It offers a perfect “price performance” match.
Thanks to its 17.3” panel and 1920x1080 full HD feature, the real video quality can be seen as you catch the right aspect. All functions can be controlled by its adjustable & functional button and keypad. All activities like focus assistance, field control, camera functions, center sign etc. can be achieved. DB-9 interface controls tally lights that are in 3 colors. Pro173 is served with its standard rackmount kits. As an option it is offered with desktop and field use stand. Vmount battery is especially given for outdoor use.
Technical Specifications
Screen Size
17.3"
Color Depth
16.7M
Resolution
1920-1080 pixels
Pixe Pitch
0.1989(H)-0.1989(V) mm
Aspect Ratio
16:9
Contrast Ratio
600:1
Backlight
LED
Viewing Angle
80 deg /80 deg (L/R) 60 deg /80 deg (U/D)
Input
1 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: YPbPr
1 X DVI-I: DVI-I
1 X BNC: Video
2 X RCA: Audio(L/R)
Output
1 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: YPbPr
1 X BNC: Video
Audio Out: Stereo Headphone, Speaker
SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
Input Voltage
DC924V
Power Consumption
<=26W
Working Temperature
-10 deg C~50 deg C
Storage Temperature
-20 deg C~60 deg C
Unit Size
426L-285H-35.1D mm (W/O Bracelet)
Unit Weight
2.75kg (W/O Bracket) / 3.30kg (W/ Bracket)
Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Freeze
* Image Flip (H, V, H/V)
* Camera Mode
* Pixel-to-Pixel
* Check Field (Red,Green,Blue,Mono)
* Built-in LED tally indicators
