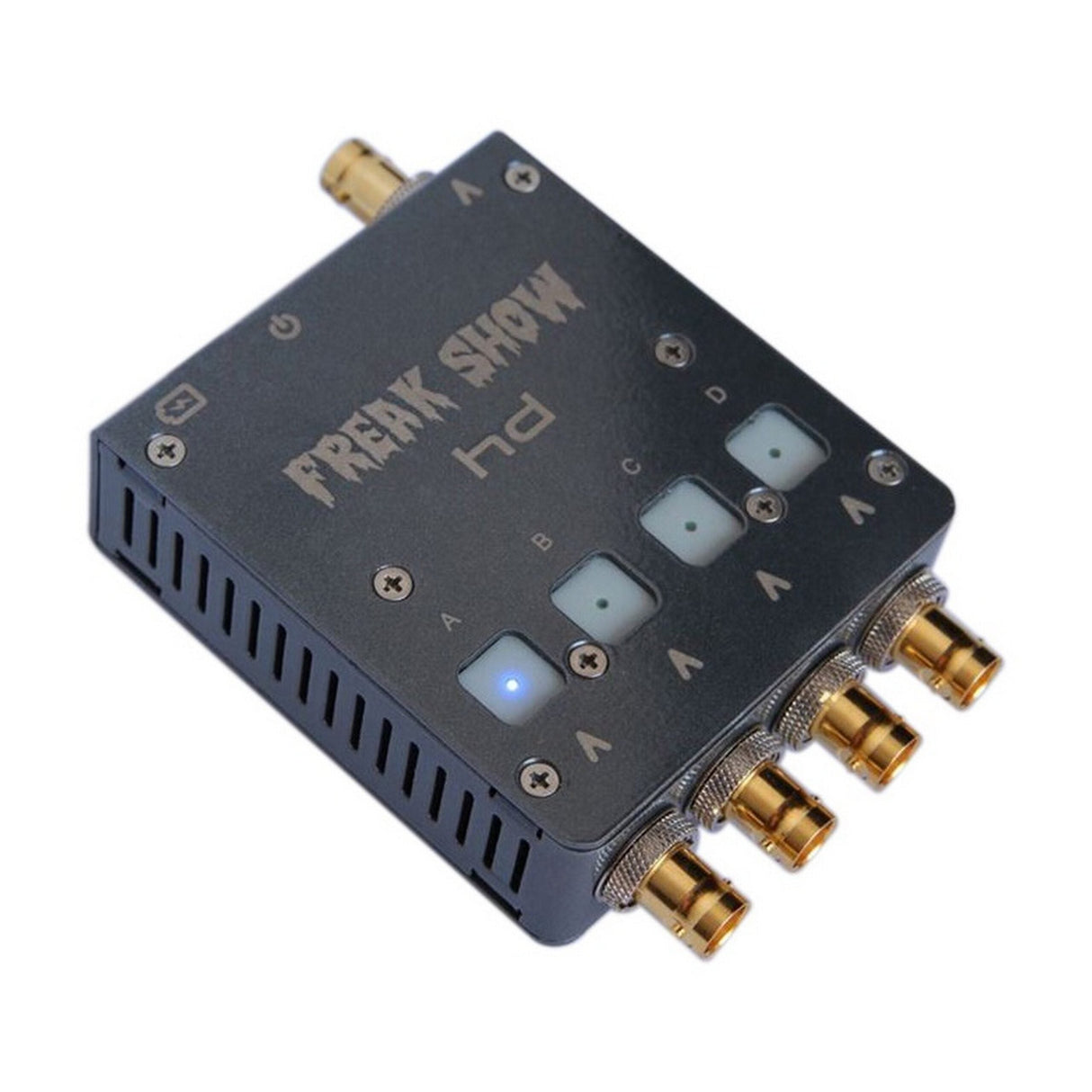

Freakshow HD Li-Ion Battery Powered 3G HD-SDI A/B/C/D Switch
Description
Description
Freakshow HD Li-Ion Battery Powered 3G HD-SDI A/B/C/D Switch
Multiple sources and only one input, how many times have you run into this dilemma? The Battery Powered A/B/C/D Switch selects between four inputs via an easily controllable top mounted touch pad, and distributes the signal to one output for up to 160 hours of continuous operation all in a rechargeable, convenient and cost effective package.
Key Features
- Internal Lithium Polymer Battery
- Accepts both Analog Composite NTSC/PAL and SDI signals
- 12-36 Volt DC Operation
- Locking Power Connector
- Low Battery Indicator
- Operate and charge while connected to external power
- AC Adaptor Included
- Power switch illuminates during charging and shuts off when charging is completed
- Internal LED blinks when battery hits 15% of capacity and blinks more quickly as the battery continues to discharge
- Battery is rated for minimum of 500 charge cycles
Technical Specifications
Formats
3G, 1.5G, 270MB; Auto Select - Meets and exceeds SMPTE 292 and 424 Standards
Inputs
4 Selectable HD-SDI, SDI (SMPTE 259/292/296/424), 4x BNC
Outputs
3G HD-SDI, HD-SDI, SDI, 1x BNC
Size
4.8" x 2.25" x 1.2" (121mm x 57mm x 30.5mm) (length includes BNC's)
Power
+12-36VDC, Regulated
Battery
Integrated Lithium-Polymer rechargeable battery provides up to 6 hours of run-time
Battery Recharge Time
3 hours
