Furman ASD-120 2.0 Circuit Sequencing Power Distribution
Description
Description

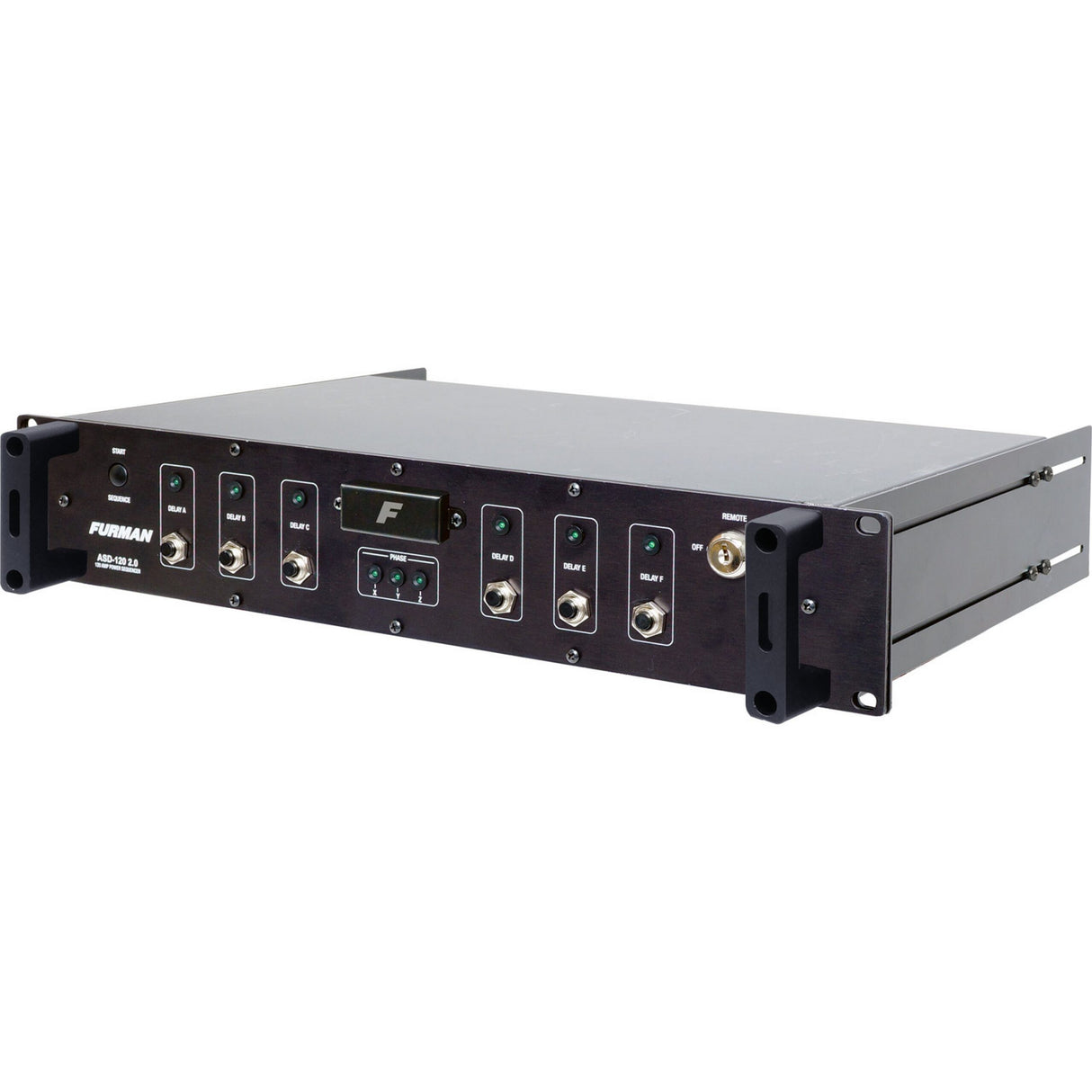

Furman ASD-120 2.0 Circuit Sequencing Power Distribution
The ASD-120 2.0 AC Sequenced Power Distributor updates the ASD-120, optimized for easier installation and operation. The ASD-120 2.0 is an extremely compact, low cost rackmount power distribution system ideal for touring PA systems, touring musical and theatrical acts, mobile recording facilities, on-location film and video shoots, etc. - any situation where AC power must be distributed to multiple circuits and a hard-wired, built-in system is missing, inadequate or impractical. The ASD-120 2.0 allows you to power up and its six circuits in a sequenced fashion. The sequence is reversed for power down. The delay interval is user-adjustable via an internal trimpot.
Key Features
- 120 amp total load
- Six 20 amp, 120 volt circuits, each with a status indicator
- Oversized buss bars
- Four buss design accommodates 120V or 240V single phase, or 208V three phase power
- Six widely spaced duplex outlets on rear panel
- Outlets can be powered up and down in sequence
- Three position switch allows each circuit to be part of the power sequencing, or to be switched on/off independently
- Sequence timing can be initiated from unit or remotely, using low voltage control wires
- Sequence control signals are available on rear panel to drive additional ASD-120 2.0s or other devices and circuits
- Front panel key switch for security
- Compact two rack space package
- Most economical product of its type
Technical Specifications
Family
Contractor Series
Line Voltage
120 (Volts)
Dimensions
3.5" H x 19" W x 10" D (8.9 x 48.3 x 25.4 cm)
Weight
16 lbs
Shipping Info
Length
21.8 (Inches)
Width
19.3 (Inches)
Height
8.6 (Inches)
Weight
19.95 (Lbs)
Unit of Measure
Each
UPC
654061041184
Master Pack Qty
2
