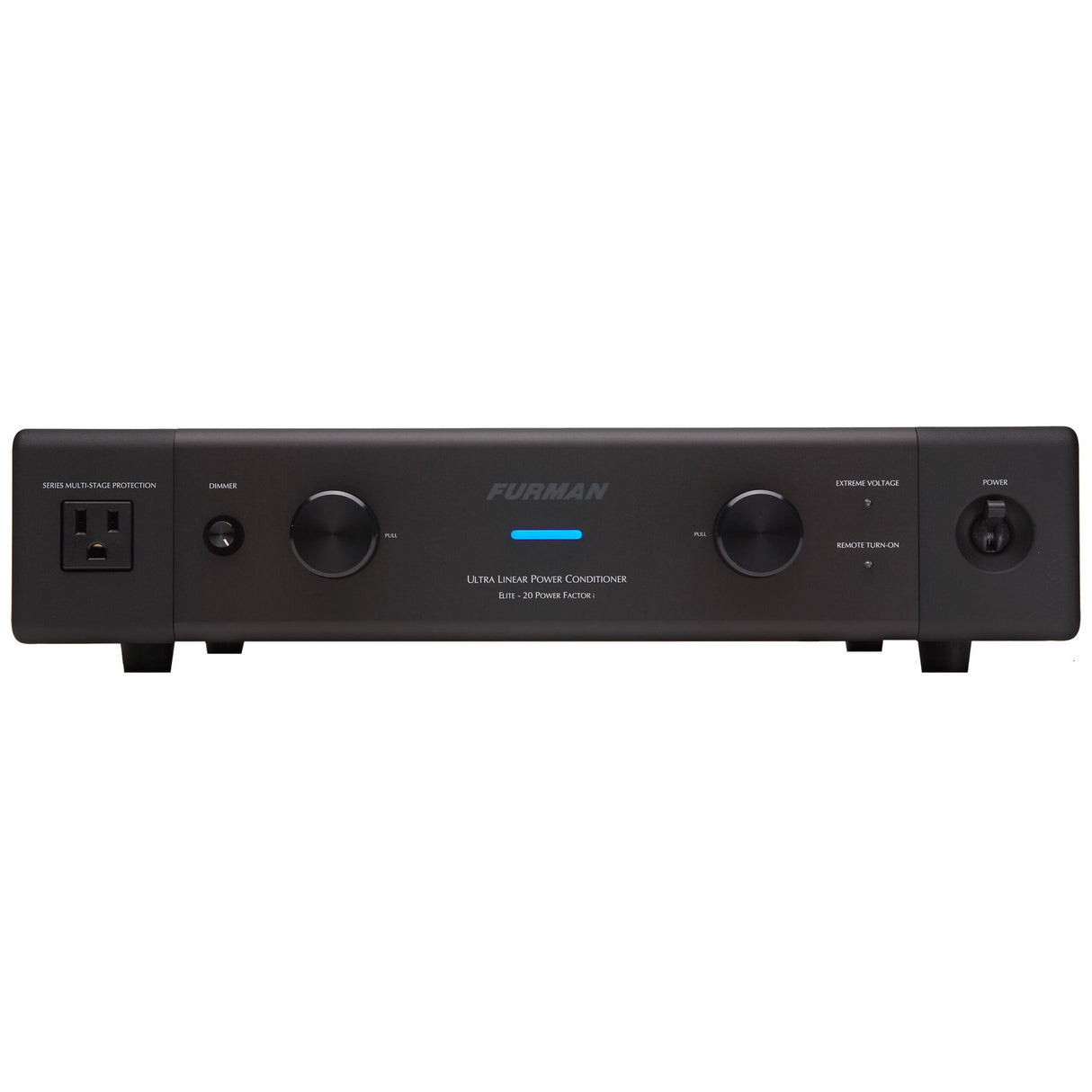

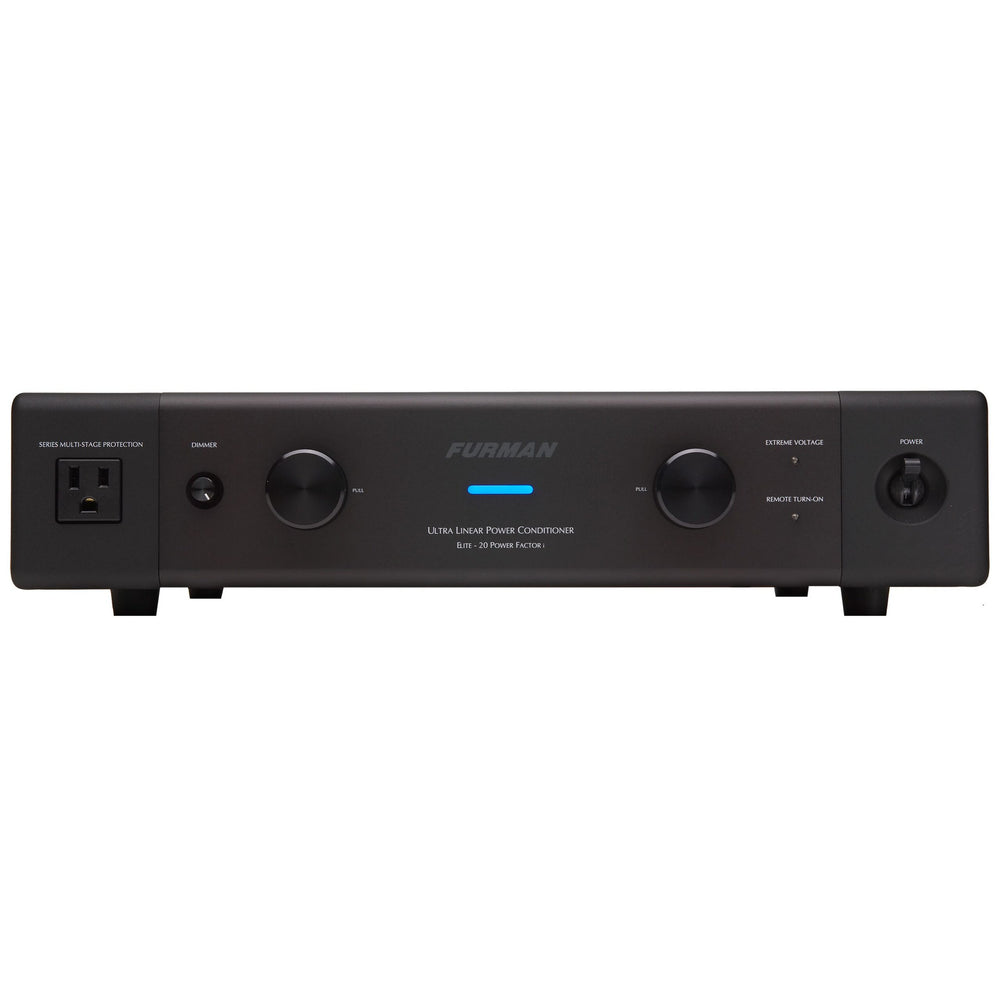

Furman ELITE-20 PF I Conditioner Power HT 20A Power Factor
Description
Description
Furman ELITE-20 PF I Conditioner Power HT 20A Power Factor
The extreme AC demands encountered in the professional audio / video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. Equipment failure or poor performance is costly. The same is true of today's home theater. Our solution based technology, extensive engineering expertise, and robust build quality have answered the challenge of today's corrupted power lines, and led to the creation of the Elite-20 PF i. Today's power lines are plagued with RF and EMI noise. When connecting sensitive equipment to your home's power outlet, AC noise couples into your system's critical components, masking low level signals and crippling performance. This low level content is critical because it relays the crucial harmonics and ambience in audio, as well as the depth and clarity in video. The Elite-20 PF i is so substantial in its ability to unmask critical signal content, its performance is surpassed only by the Furman Reference Series. With Furman's Ultra-Linear Filtering, televisions, projectors, DVD players, amplifiers, and processors, are fed pristine AC power. For the first time, you will see and hear your theater or audio system as it should be - uncompromised.
Key Features
- SMP provides the highest level of protection available
- LiFT significantly reduces AC line noise
- E.V.S. protects equipment from dangerous overvoltage conditions
- Zero ground contamination circuitry protects critical digital components
- Power Factor Technology provides over 55 Amps peak charge surplus current for power-starved amplifiers
- Ultrasonic bi-filtering isolates digital and video circuits from analog components
- Retractable LED lamps illuminate a cabinet or rack full of equipment
- Detachable module for telco surge suppression and 3 pairs of cable / satellite TVSS isolated F-connectors
- 12 Volt triggering for remote control
Technical Specifications
Family
Elite Series
Line Voltage
120 (Volts)
Number of Outlets
13
Number of Isolated Banks
3
Outlet Descriptions
1 (Ultra-Linearly filtered outlet - front panel)
8 (Ultra-Linearly filtered outlets with additional ultrasonic filtering for either video or audio components, 4 with 12V triggering)
4 (Power Factor Technology amplifier outlets “ 4.5 amps RMS reserve - reactive load - over 55 amps peak charge, 2 with 5 second delay via 12V triggering)
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
No
Front Media Light(s)
2 Retractable LED lamps
Control
On/Off switch and light dimmer knob on front panel. 12 Volt triggering for remote control.
Voltage Regulation
No
Compliance
NRTL-C
USB Charging
N/A
Low Voltage Trigger
12 V, In/Out
Dimensions
4" H x 17" W x 14.75" D (Standard 2 RU height without feet)
Weight
18 lbs
Power Consumption
12 Watts for display and control circuits independent of actual load
AC Protection
AC Protection Technology
Extreme Voltage Shutdown
Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination
Under-Voltage Shut
off85V
Over-Voltage Shut
off140V -3V
Maximum Current Rating
20 (Amps)
Initial Clamping Level
188 VAC peak @ 3,000 Amps
Shipping Info
Length
21.6 (Inches)
Width
19.7 (Inches)
Height
8.4 (Inches)
Weight
22.9 (Lbs)
Unit of Measure
Each
UPC
654061027836
