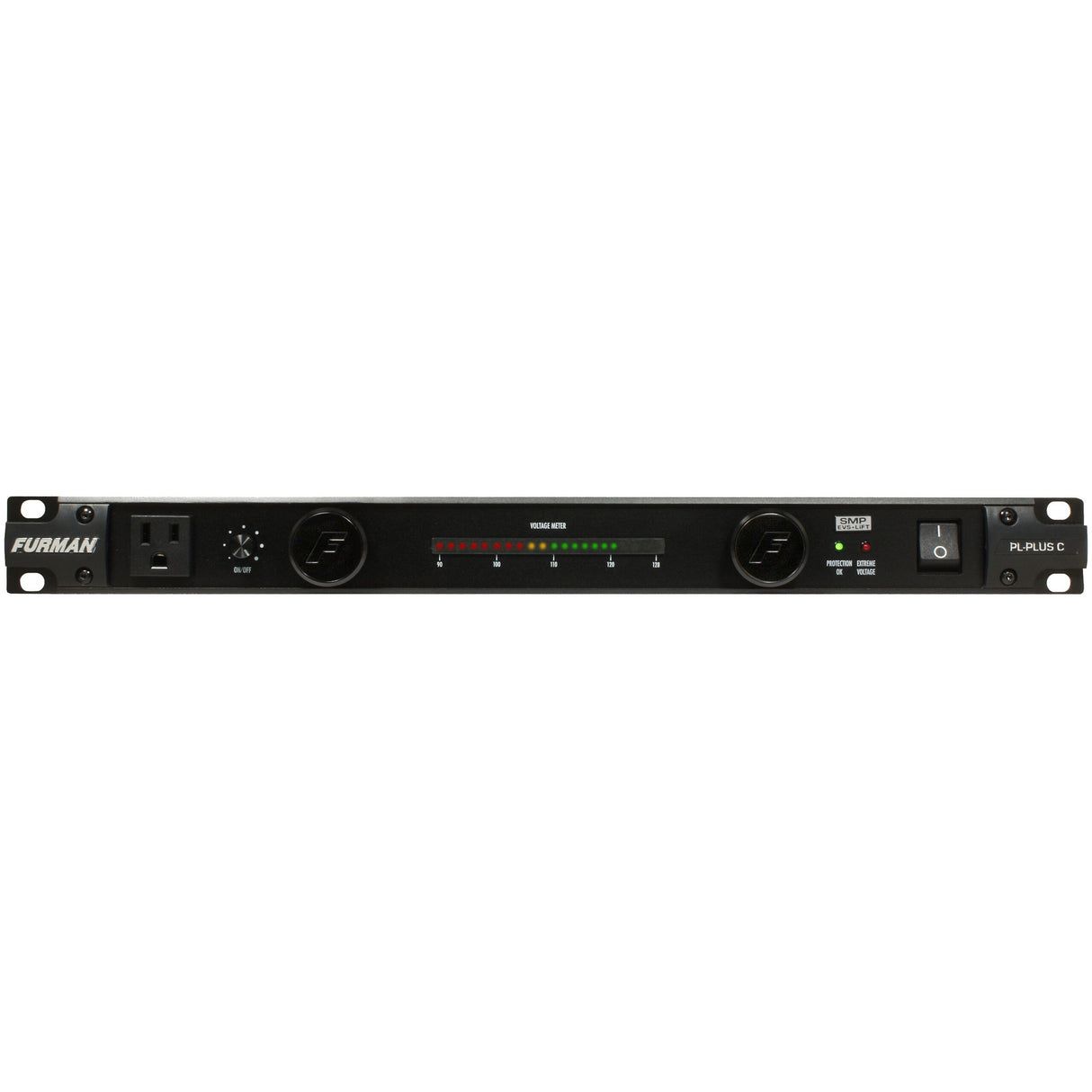

Furman PL-PLUSC 15A Power Conditioner with Lights, Voltmeter
Description
Description
Furman PL-PLUSC 15A Power Conditioner with Lights, Voltmeter
The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.
Key Features
- Furman's exclusive SMP technology provides the highest level of surge & spike protection available
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
- Dual smooth track retractable LED lights illuminate equipment in your rack
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
- Segmented LED voltmeter monitors and displays incoming line voltage
- Isolated outlet banks minimize inter-component interference and noise contamination
- Three widely spaced outlets accommodate bulky AC power transformers
- 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection
- Nine total outlets (8 rear panel outlets and one front panel convenience outlet)
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination
Technical Specifications
Family
Classic Series
Line Voltage
120 (Volts)
Number of Outlets
9
Number of Isolated Banks
2
Outlet Descriptions
All 9 outlets linearly filtered and surge protected
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
Segmented LED voltmeter
Front Media Light(s)
2 multi-LED, dimmable lamps
Control
Front panel On/Off switch
Voltage Regulation
No
Compliancec
TUVus
AC Power Cord
10 ft, captive 3/14 AWG, with NEMA 15 plug
Dimensions
19" W x 10.5" D x 1.75" H
Weight
12 lbs
Power Consumption
12 Watts
AC Protection
AC Protection Technology
Extreme Voltage Shutdown
Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff
90V
Over-Voltage Shutoff
140 VAC
Maximum Current Rating
15 (Amps)
Initial Clamping Level
188 VAC peak @ 3,000 Amps
Filtration
Filtration Technology
LiFT
Filtration Rating
10 dB @ 10 kHz
40 dB @ 100 kHz
50 dB @ 500 kHz
Signal Line Protection
No
Shipping Info
Length
21.6 (Inches)
Width
14.8 (Inches)
Height
4.1 (Inches)
Weight
11.8 (Lbs)
Unit of Measure
Each
UPC
654061027973
