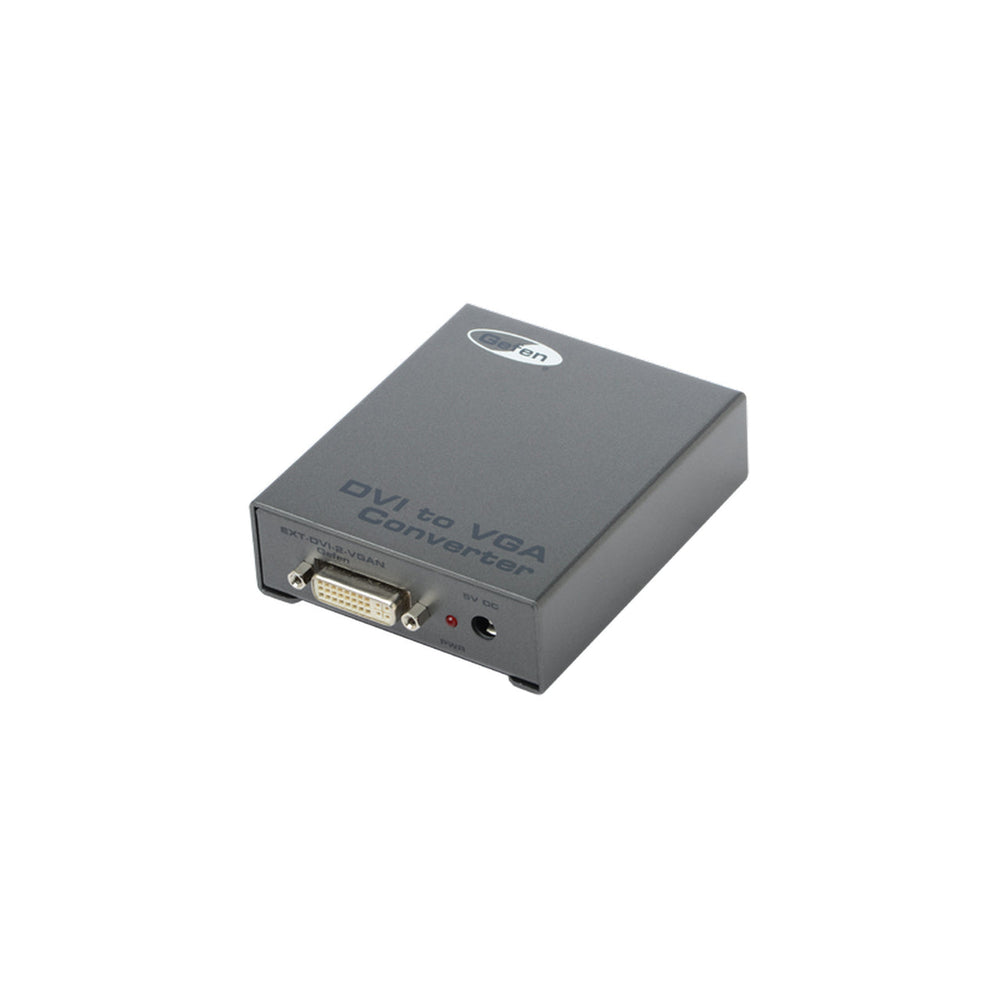

Gefen EXT-DVI-2-VGAN DVI to VGA Converter
The Gefen DVI to VGA Converter is a small box solution that converts DVI-D to VGA Analog PC/RGB, enabling digital sources to connect with any monitor, projector or TV using VGA. Output resolutions up to 1920x1200 are supported. The Gefen DVI to VGA Converter features EDID management that allows rapid integration of the source and monitor.
Key Features
- Enables DVI source to be displayed on VGA monitor or projector
- Supports resolutions up to 1920 x 1200
- EDID Management for rapid integration of source and display
- Built-in EDID switch allows choice between local EDID and external EDID
Technical Specifications
Maximum Pixel Clock: 165MHz (DVI)
Analog Video Bandwidth: 350MHz (VGA)
Input Video Signal: 1.2V p-p
Input DDC Signal: 5V p-p (TTL)
Video Input Connector: (1) DVI-I 29-pin, female digital only
Video Output Connector: (1) VGA HD-15, female
Power Supply: 5V DC
Power Consumption: 5W (max.)
Dimensions: 3" W x 3.8" D x 1" H
Shipping Weight: 2 lbs.
