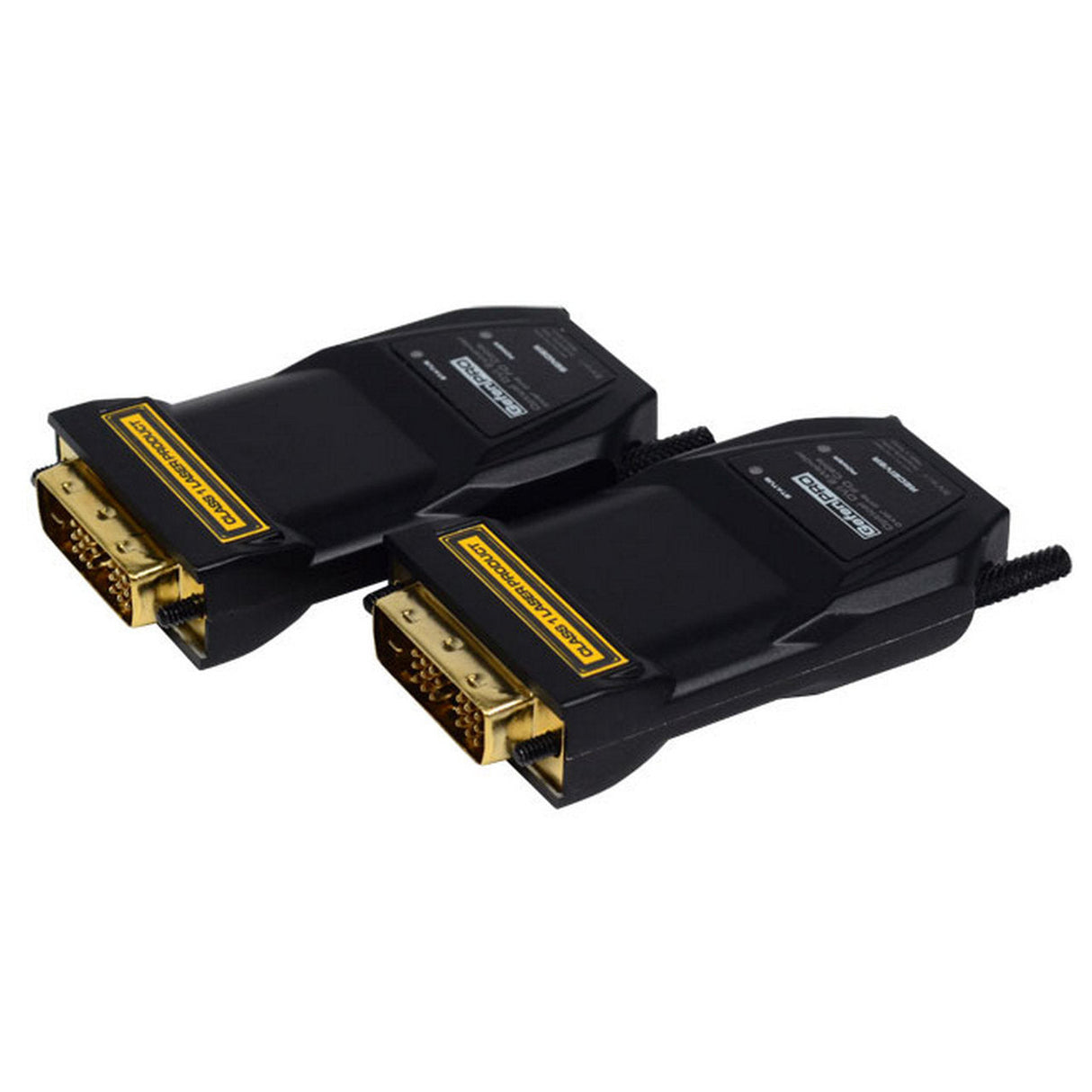

Gefen GEF-DVI-FM1500 | 3280 Feet DVI Fiber Optic Cable Extension

Gefen GEF-DVI-FM1500 3280 Feet DVI Fiber Optic Cable Extension

The GefenPRO DVI FM1500 Optical DVI Extender with Recordable EDID extends a DVI source up to 3280 feet (one kilometer) using single-mode fiber optic cable. Virtual EDID programming provides fast integration and compatibility with the input video source and the display. Resolutions up to 1920 x 1200 (WUXGA) at 60 Hz are supported.

Key Features

• Extends DVI up to 3280 feet (1000 meters) in single mode
• Extends DVI up to 1640 feet (500 meters) in multimode
• Supports resolutions up to 1920 x 1200 (WUXGA)
• Optical signal transmission provides good immunity to electromagnetic interference
• Virtual EDID programming feature provides quick installation and compatibility between source and display
• Uses one strand of single mode or multimode SC terminated fiber optic cable
• Fully supports DVI 1.0 specifications and DDC2B via virtual DDC
• Sender module does not require power if the DVI source provides sufficient power on pin 14 of the DVI connector (most sources do)

Technical Specifications

Maximum Pixel Clock: 165 MHz
Optical Wavelength: 1310 nm / 1550 nm (typical)
Video Input (Sender): DVI-D, 19-pin, male
Video Output (Receiver): DVI-D, 19-pin, male
Fiber Optic Connectors (Sender / Receiver): (1) SC type
Power Supply (Sender / Receiver): 5V DC
Power Consumption (Sender / Receiver): 250 mA (max.) / 190 mA (max.)
Dimensions: 1.96" W x 0.59" H x 2.98" D
Shipping Weight: 2 lbs.
