Gemini UHF-4100M | 100 Channel UHF Wireless Handheld System

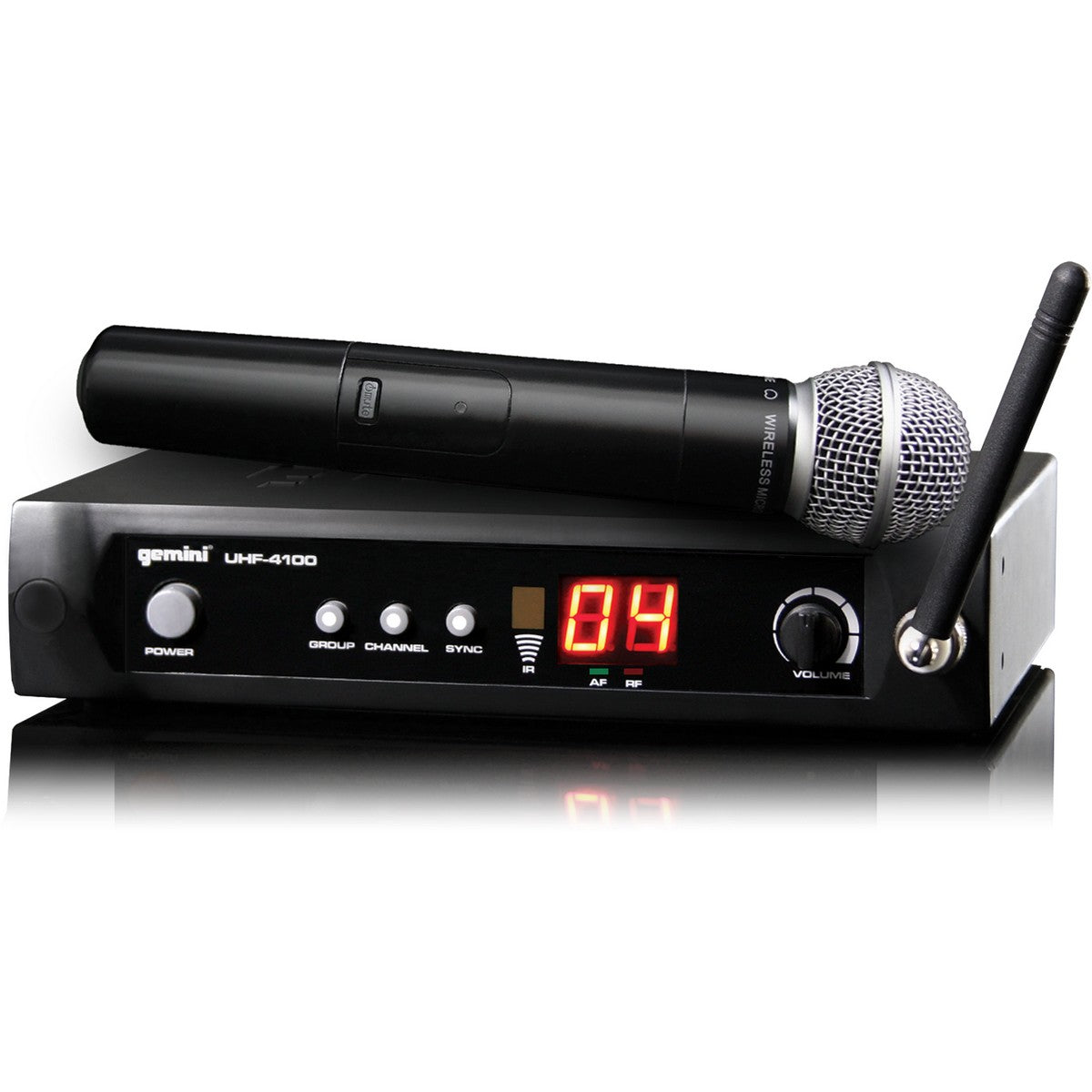

Gemini UHF-4100M 100 Channel UHF Wireless Handheld System

Gemini’s UHF-4100M Wireless Handheld Mic System provides clear, accurate vocal reproduction without the burden of cables, ensuring wired limitations never force you to sacrifice passion or energy during a performance. Ideal for lead singers, MCs, DJs, karaoke enthusiasts and anyone seeking a high-quality wireless handheld solution, the UHF-4100M offers superior reliability and ultra-clear reception at a completely affordable price.

Built to wIt'stand the rigors of heavy touring or consistent use at bars, clubs, auditoriums and houses of worship, the UHF-4100M features a robust 100-channel UHF receiver with a range of 250 feet. Using Phase Locked Loop (PLL) circuitry to prevent phasing issues that plague other wireless systems, the receiver’s front panel provides a Power button and rotary Volume control, along with Group and Channel adjustments for setting the desired frequency. RF and AF LED indicators also let you monitor incoming signal strength, while balanced XLR and unbalanced ¼-inch outputs offer true connecting convenience. The unit even gives you the option to set your frequency manually or allow the receiver to automatically find an optimal frequency.

The UHF-4100M’s dynamic handheld microphone transmitter features a high-sensitivity cardioid capsule that gives your vocals the professional sound you crave, while noise absorption components within the mic barrel eliminate switch shock and handling noise. The transmitter also provides a convenient Power/Mute button and runs on two AA batteries with up to eight hours of battery life.

Key Features

• Single UHF receiver with 250 range
• US: 100 operating frequencies between 682MHz and 698MHz
• EUR: 100 operating frequencies between 854MHz and 865MHz
• Allows up to 8 mics to be used simultaneously without interference
• Switchable automatic/manual frequency selection
• Phase Locked Loop (PLL) circuitry for increased reception
• RF and AF LED indicators for monitoring signal strength
• Auto mute with built-in noise reduction
• Front panel output level control
• Balanced XLR and unbalanced 1/4" outputs
• Microphone On/Off switch
• Unidirectional, handheld dynamic microphone transmitter

Technical Specifications

Frequency range:
USA: 682-698MHz
Europe: 854-865Mhz
Receiving system:
PLL synthesized
Frequency Stability:
+/- 0.005%
Frequency Response:
50Hz-15kHz +/- 3dB
Signal-to-Noise Ration:
90dB
Modulation Mode:
FM
IF Frequency:
80.5 MHz
T.H.D.:
1% (@ 1kHz)
Sensitivity:
10dBuV (FM: 40kHz, S/N>85dB)
Power Supply:
12V DC
Audio Output:
Balanced XLR
Unbalanced 1/4"
Dimensions
210 x 138 x 45 mm
RF Power Output:
<10dBm
Oscillation Mode:
PLL Synthesized
Spurious Emission:
> 50dB below carrier freq.
Frequency Stability:
30.005% with quartz control
Max Modulation:
+/-60kHz
Current Consumption:
100mA
Battery Type:
Two (2) AA Alkaline
Battery Life:
8 hours
Microphone Element:
Unidirectional Dynamic Mic
Polar Pattern:
Cardioid
Dimensions:
250×38 mm
