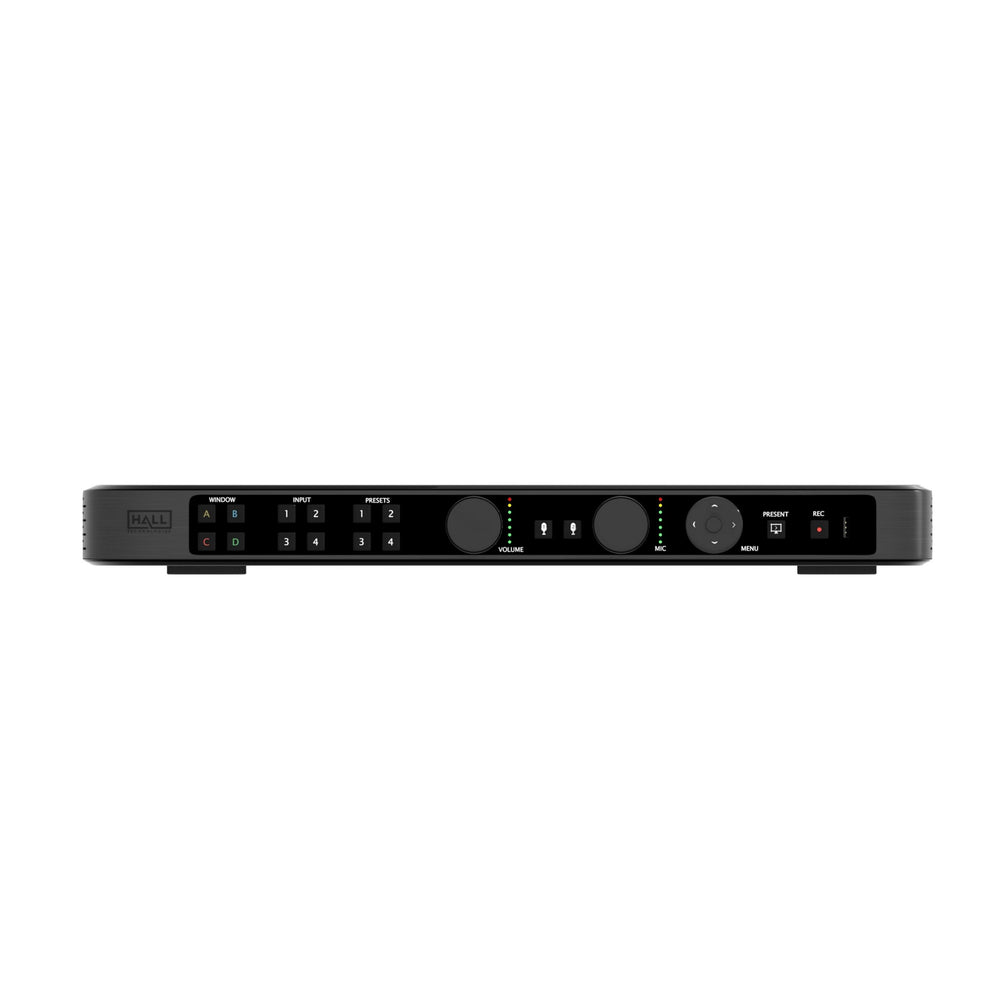

Hall Technologies EMCEE200 Multiview Presentation Switcher Scaler
Hall Technologies EMCEE200 Multiview Presentation Switcher Scaler is backordered. Please call for ETA 877-779-8964
Condition: New
Hall Technologies EMCEE200 Multiview Presentation Switcher Scaler
Description
Description
Hall Technologies EMCEE200 Multiview Presentation Switcher Scaler
EMCEE200 is a multiview presentation switcher scaler with Picture-in-Picture (PIP) and Picture-Over-Picture (POP) capabilities. It can process up to four 4K@60 video sources with zero latency and gives “CONFIDENCE” and “PRESENT” HDMI outputs in different window layouts. With a built-in dual MIC mixer and a wide range of Audio Embedding and De-Embedding options, EMCEE is a perfect companion for any type of presentation. EMCEE can not only record the presentation to an external storage device but also provides USB3.0 4K capture to stream live with no additional hardware.
Key Features
- 18G multiview switcher and scaler
- 4K@60 4:4:4 on all Inputs and Outputs
- Picture-In-Picture (PIP) and Picture-Over-Picture (POP) with Multiview
- Recording and 4K Soft Codec Support
- Dual MIC Mixer
- Audio Embedding and De-Embedding
- Confidence and Present Output with Splash Screen Support
- Built-in WEB Page with IR, RS-232, TCP/IP, and Telnet Control
- HDBaseT 3.0 and Amplifier Plugin Module Support
Technical Specifications
Video Standards
Input:
4x HDMI 2.0 a
Output:
2x HDCP 1.4/2.2
18 Gbps Bandwidth
Up to 4K2K@60 (4:4:4)
USB 3.0 Capture
USB 3.0 SuperSpeed Type-B Female
350MBps
Compatible with Windows 7/8.1/10, Mac, and Linux OS
Capture up to 4K2K@60 4:4:4 8Bits
USB Recording
USB 2.0 Type-B Female
1080p@60 Recording
Audio
HDMI
PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD 16/20/24 bits per sample up to 96kHz Sampling Rate
MIC Input
1x 3.5mm Audio Jack
1x 3pin Phoenix Connector
48V Phantom and Line level audio support
Embedding
1x Digital TOSLINK
1x STEREO L/R 3.5mm Audio Jack
De-embedding
1x Digital TOSLINK
1x STEREO L/R 3.5mm Audio Jack
1x BAL-STEREO 6pin Phoenix Connector
Control
RS232
115200 bps
3pin Phoenix Connector
IP
Embedded WEB-GUI, PC-GUI (Window Only)
TCP/IP, Telnet Commands
IR Remote
36KHz
Power
Supply
12V 3A DC (US/EU Standards/CE/FCC/UL Certified)
Consumption
32 Watt Max
Temperature
Operation
0~40C <32~104F>
Storage
-20~60C <-4~140F>
Relative Humidity
20~90% RH
Mechanical
Mount
1RU Rack
Dimensions
17.30”(440 mm) W x 7.80”(200 mm) D x 1.8”(45 mm) H
Housing
Aluminum
ESD
Human body model - +/-12kV
