Hall Technologies SSW-HD-4 | 4 Input HDMI Seamless Video Switch

Hall Technologies SSW-HD-4 4 Input HDMI Seamless Video Switch

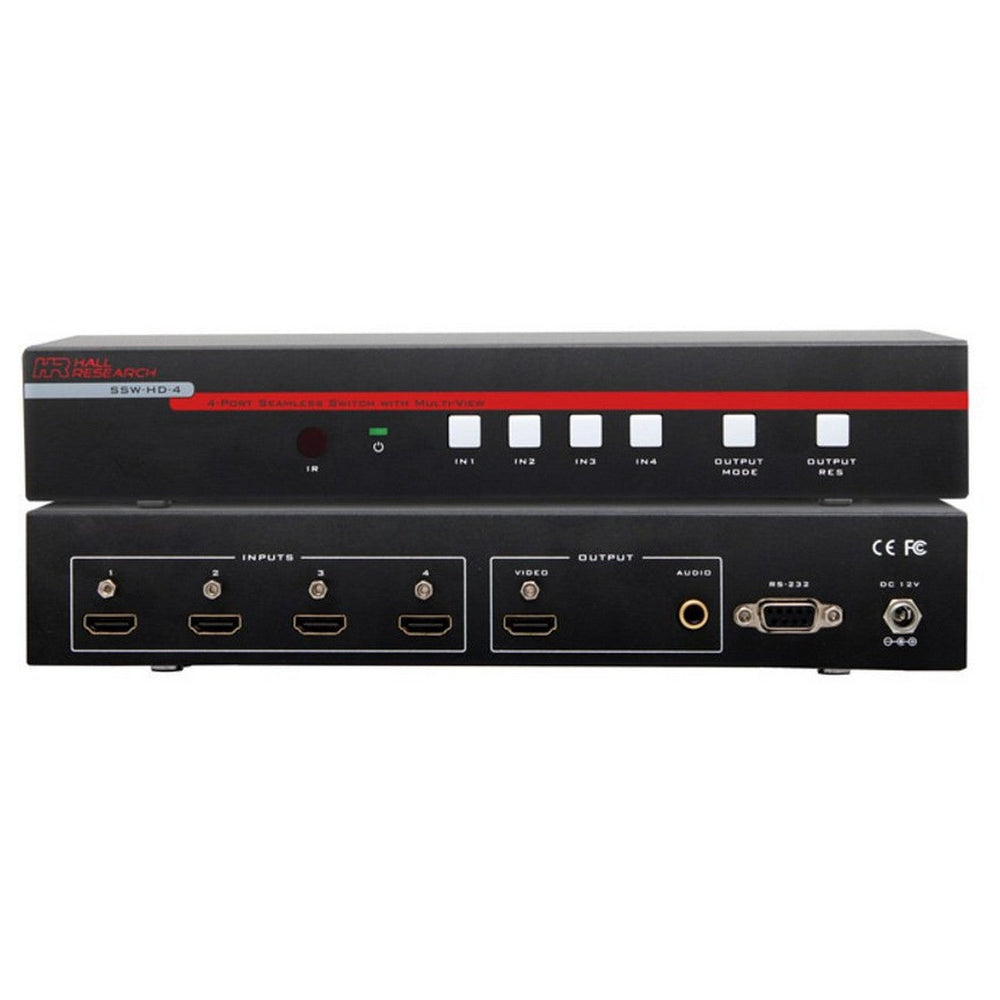

The SSW-HD-4 is a 4-input HDMI seamless video switch with multi-view capabilities where all inputs can be simultaneously shown in real-time in a variety of window configurations. When only one input is shown, switching between different inputs is completely seamless with zero transition delay. The switcher supports various PC and HDTV resolutions; including 1080p Full HD on its input and produces a scaled Full HD video output.

The SSW-HD-4 can display four Hi-definition sources on a single display and comes with several pre-configured multi-view layout modes. Individual buttons for each input allow quick selection from the front panel. Control of switching and multi-view window layouts can be accessed via Front panel buttons, IR remote control (included), RS-232, or with the free PC GUI that controls the device via RS-232. The product is shipped with rack ears for 1U rack mounting.

Advanced features include: Front panel lock modes, de-embedded S/PDIF audio output, and free Windows PC software for configuration and control.

Key Features

• Seamless Switching
• Pre-configured Multi-view Layouts
• Control via Front Panel, IR, PC-GUI and RS-232
• Input and Output Resolutions up to 1080p Full HD
• HDCP Compliant
• Includes IR Remote Control
• Includes Rack Mount Ears
• De-embedded S/PDIF audio out with RCA Connector
• Supports Locking HDMI Cables
• Includes Universal Power Supply with Locking DC Connector

Technical Specifications

Video Resolution Output
1080p@60Hz, 1080i@60Hz, 720p@60Hz, 1024x768@60Hz, 1360x768@60Hz
Video Resolution Input
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/30/50/60Hz, 800x600@60Hz, 1024x768@60, 1280x720@60Hz,1920x1080@60Hz
Video Bandwidth
Single-link to 165 MHz (4.95 Gbps)
Audio Standards
PCM <2/5.1/7.1>CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby True HD and DTS-HD Master Audio
Input Ports
4 x HDMI Female with Locking Capability; 1 x RS-232
Output Ports
1 x HDMI Female with Locking Capability; 1 x S/PDIF audio out with RCA Connector
Power Supply
12 VDC @ 2.5A
ESD Protection
Human Body model: 8kV (air-gap discharge); 4kV (contact discharge)
Product Dimensions
9.85" W x 4.65" D x 1.25" H
Product Weight
1.8 lbs
Enclosure
Metal
Storage Temperature
-4 to +140 deg F
Operating Temperature
+32 to +122 deg F
Humidity
20% to 90% RH non-condensing
