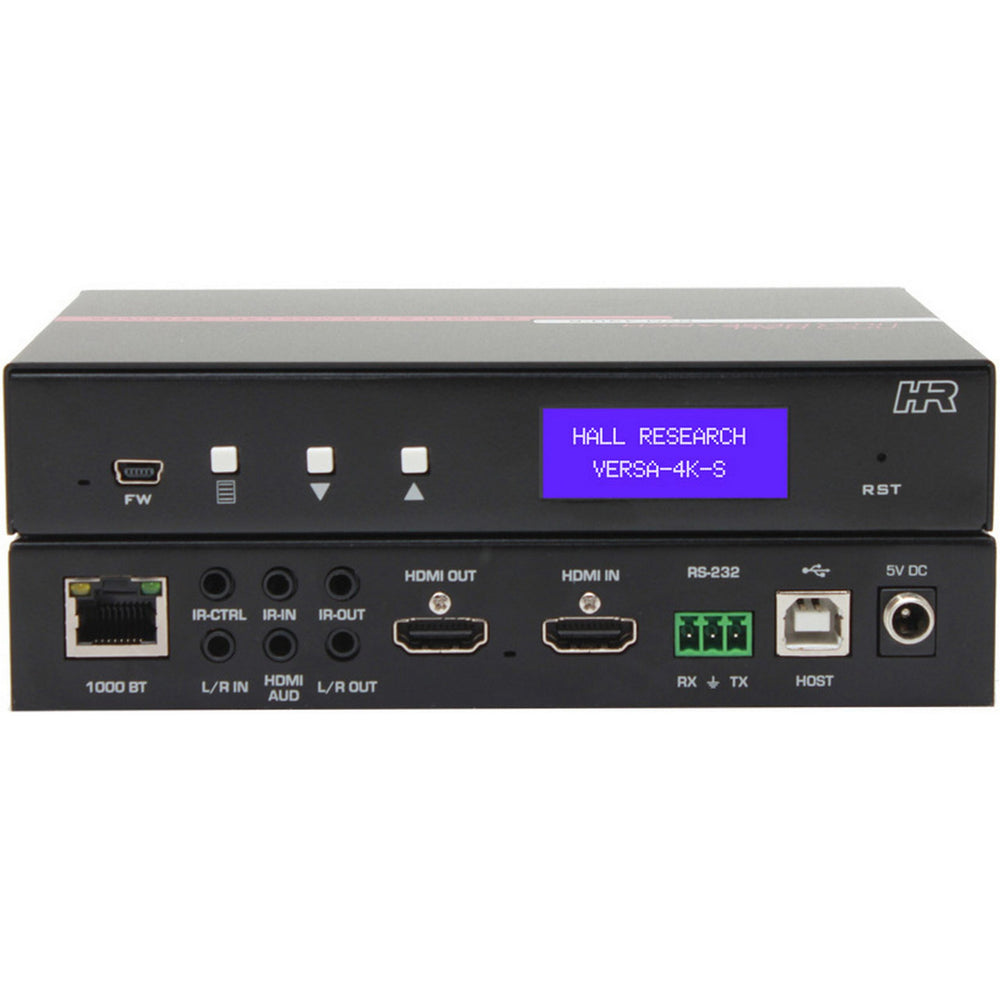

Hall Technologies VERSA-4K-S Sender Unit for VERSA-4K 4K Video and USB Extension

Hall Technologies VERSA-4K-S Sender Unit for VERSA-4K 4K Video and USB Extension

The VERSA-4K-S is a sender / encoder unit for the VERSA-4K video & USB extension system. the VERSA-4K provides the means to extend and switch multiple HDMI video and USB data to virtually an unlimited number of receivers on a simple Gigabit network. Bidirectional IR, RS-232, and auxiliary stereo audio can also be extended. Advanced features include, low latency video and audio, CEC and Serial over IP for control, video wall processor to expand and split 4K video on to multiple screens, video rotation and flipping (horizontal and vertical), USB Device class filtering for excluding specific USB device types such as USB flash drives, automatic KVM switching, Telnet and webGUI control, Dynamic Virtual Matrix (DVM) operation, PoE (power over Ethernet) support, and more.

Key Features

• Extend and switch multiple 4K HDMI video and USB on a simple Gigabit LAN
• Can be used directly (without LAN) for point-to-point HDMI/DVI video, USB 2.0, Audio, IR, and RS232 extension on Cat6
  low latency video and audio
• Video rotation and flipping (horizontal and vertical)
• User configurable video-wall processor
• Extends signals up to 120 meters (400 ft)
• HDMI video loop output on the Sender
• Extracted HDMI audio in stereo analog format on both Sender and Receiver
• 4 USB ports on the Receiver, 2 for keyboard and mouse plus 2 general purpose USB 2.0 ports
• PoE powered. Power supply included for direct point to point extension or if PoE is not available
• USB Device Class Filtering (to exclude devices like USB flash memory)
• CEC, IR, and R-232 Serial over IP for control
• Automatic KVM switching (when more than one receivers are routed to one source)
• Telnet and integrated Web GUI control
• Front panel character-LCD for configuration of IP parameters and status indication
• Receivers include small IR remote controller for switching channels
• Free PC GUI with advanced features to ease setup and configuration
• Sender accepts a max resolution of 4K 60Hz 4:4:4 on its input and loop output
• Receiver outputs a max resolution of 4K 30Hz 4:4:4
• HDCP2.2 and 1.4 compliant

Technical Specifications

Supported Resolutions
PC (VGA to WUXGA) HDTV(480i to 4K/UHD)
Power Supply
12V/1A DC with universal AC plug kit and locking DC connector (US/EU standards, CE/FCC/UL certified)
Operating Temperature
+32 to +104F (0 to +40C)
20-90%, non-condensing
Product Dimensions
6.30"(160 mm) W x 3.94"(100.0 mm) D x 1.38" (35 mm) H
Net Weight TX (Unit)
1.12 lbs (0.51 KG)
Chassis Material
Metal
Mounting Option
Mounting Brackets (included)
