Heden M21VE-L 256-3.3K Motor with Dual Pin Hub
Description
Description

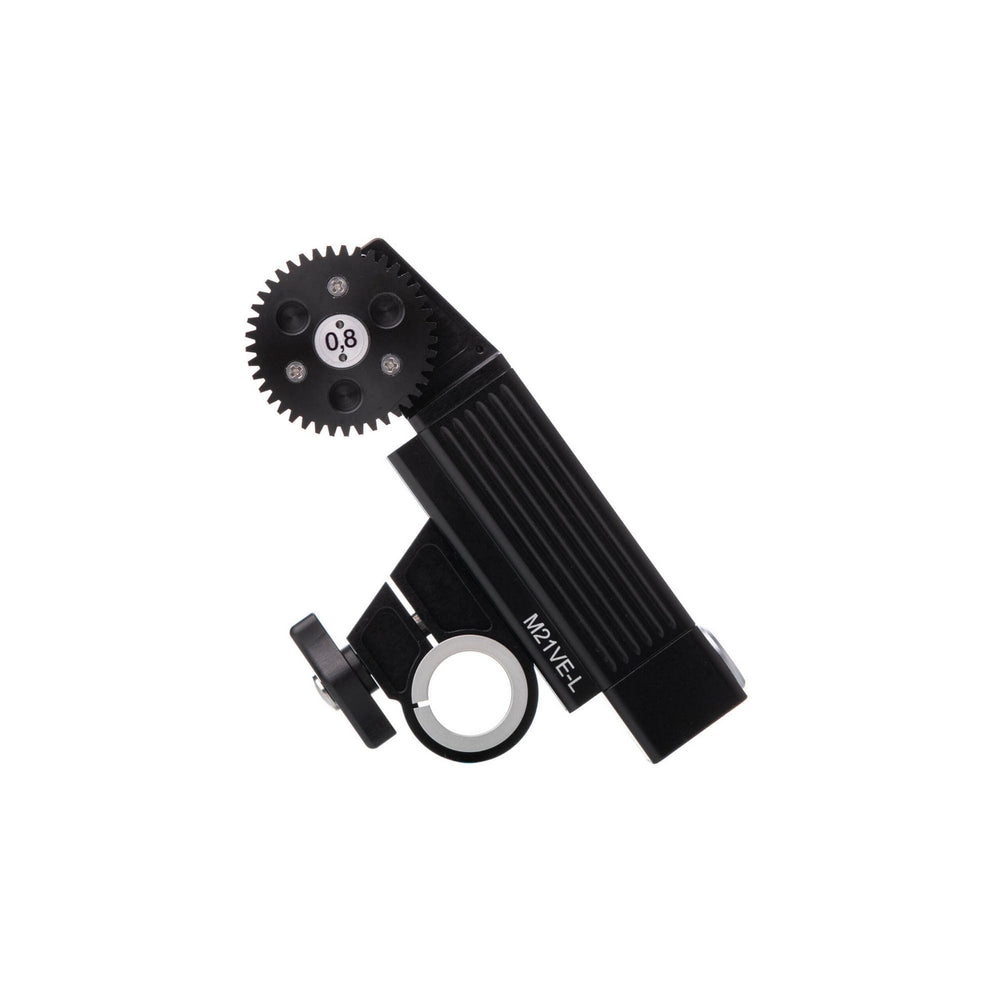

Heden M21VE-L 256-3.3K Motor with Dual Pin Hub
The Hedén M21VE-L has been upgraded and comes now with dual pin hub, together with a snap on gear with dual pin lock mechanism, to make it even more reliable. The M21VE is a smaller and lighter version of the M26VE, made for professional film and broadcasting cameras. Its light weight makes the M21VE-L a popular choice for drone operators and its size lends especially well for very crowded spaces. Mounts vertically on a 19 mm (0.75”) rod without the need of tools. The accompanying bracket reduction insert will fit on a 15 mm (0.59”) rod and additional sizes are available in our accessories section. Interchangeable snap on gears, that can be mounted on either side of the gear housing, adds to the versatility of the Hedén motors. Supplied with a 0.8 gear module and with 0.4, 0.5, 0.6 modules available as extras. Comes with a variety of encoders and resistors to suit your need.
Key Features
- Compatible with: Hedén Carat, Heden Ymer, Preston, Bartech, FreeFly MōVI
Technical Specifications
Height (body)
28mm/1.10” (Body with gear housing): 34mm/1.33”
Width
21mm/0.83”
Length
106,5mm/4.19”
Weight (without bracket and gears)
135,5gr/ 4.78 oz
Torque
1.0 Nm
Connector
LEMO 7 pin connector
Includes
Hedén M21VE-L Motor
2-pin 0.8 gear module
Bracket with 19mm to 15mm (0.75” to 0.59”) reduction insert
