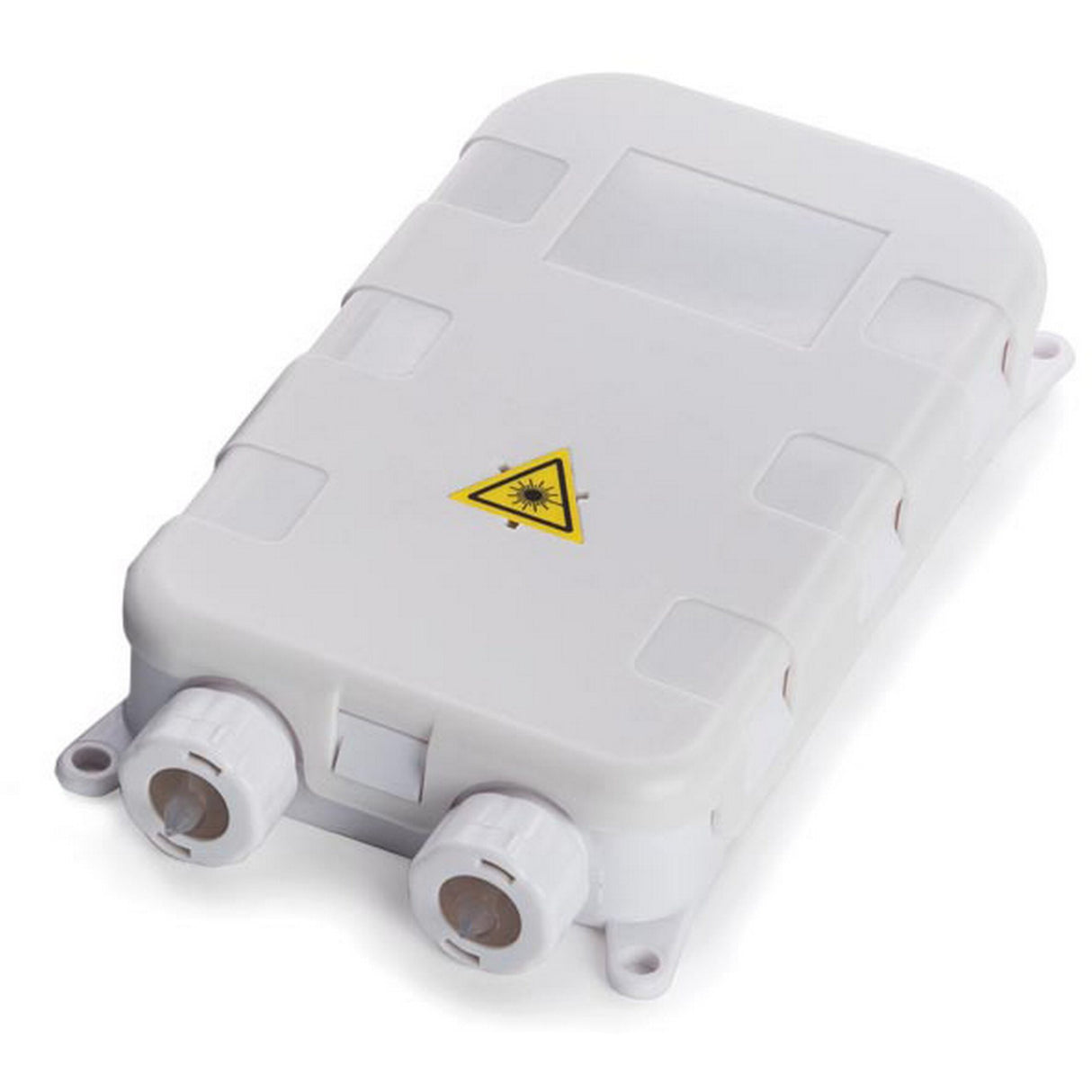

HellermannTyton CCP-SAP Connection Point with SC-APC Simplex Adapter, White

HellermannTyton CCP-SAP Connection Point with SC-APC Simplex Adapter, White

The HellermannTyton CCP-SAP-W is a Customer Connection Point (CCP) manufactured from UL 94 V-0 and UV stable black polycarbonate and has a fully detachable snap-on lid. The closure has two separate cable access points, which are sealed with a silicon cable entry kit (cable diameter range 4.6 mm - 5.6 mm) to maintain the IP68 rating. A GORE-TEX breather membrane is fitted to the lid to prevent condensation forming in the base of the closure. The unit can be supplied with one SC Simplex or LC Duplex and matching pigtails and provides splice management for two heat shrink splices. Internal fiber management features ensure that a 30 mm minimum bend radius is maintained within the closure and provides fiber storage capacity for any excess fiber.

Key Features

• Fully water sealed, achieving an IP-68 (NEMA 6P) rating, for use in wall or handhole installations
• Separate inbound/outbound access points ensure cable sealing and segregation
• Single subscriber splice or patch to connect a home or outdoor device

Technical Specifications

Max Cable Diameter
0.22"
Min Cable Diameter
0.18"
Connector Type
SC-APC
Dimensions (WxDxH)
3.5 x 1.1 x 6.3"
Installed Adapters
1
Pigtals Installed
1
Splice Quantity
2
Color
White
