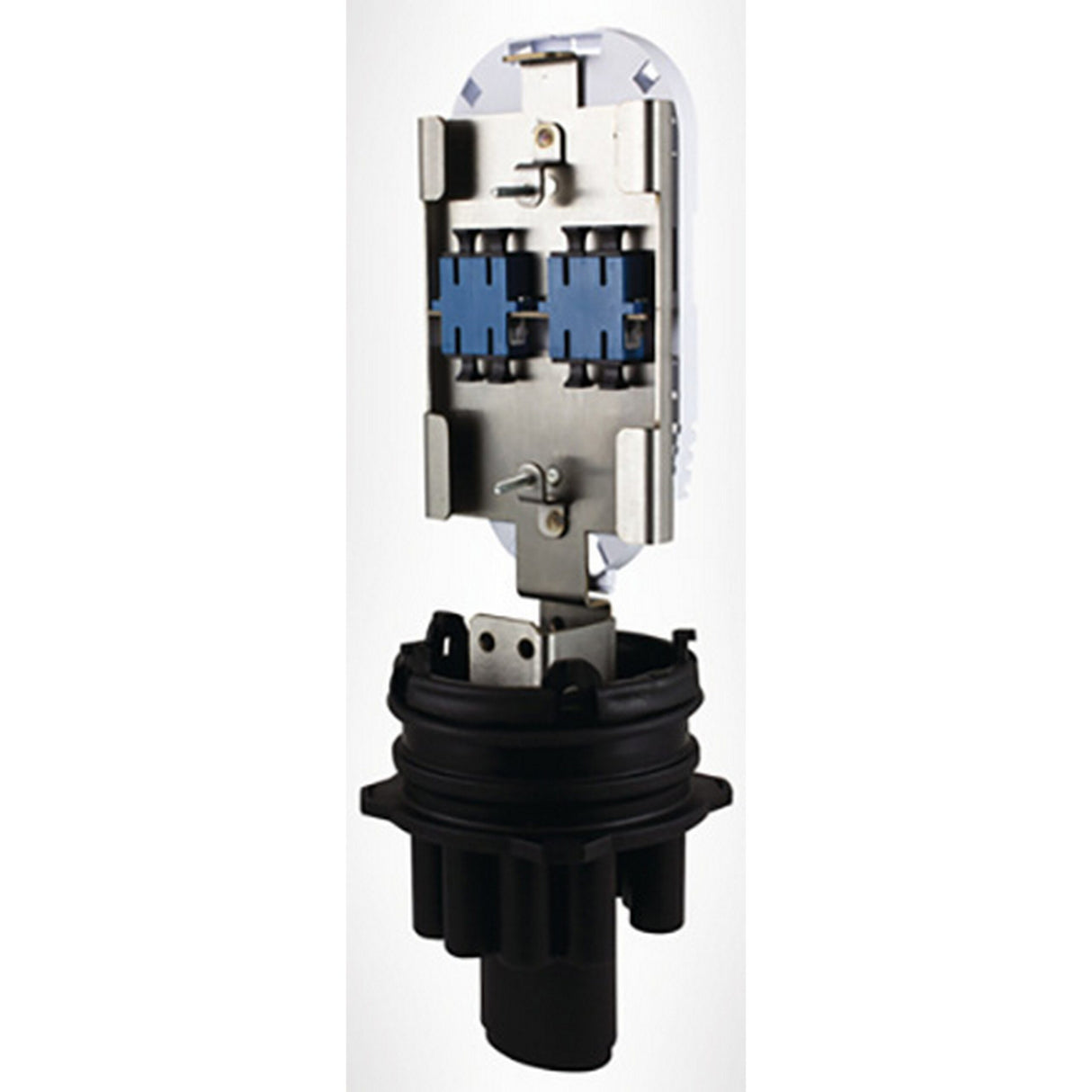

HellermannTyton FSTCTAXXTA11TFU FST Connectorized Port with 2 SC Duplex Adaptors, Black

HellermannTyton FSTCTAXXTA11TFU FST Connectorized Port with 2 SC Duplex Adaptors, Black

This HellermannTyton FSTCT-AXXTA11-TF FST 13 port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 - 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 2 Hellapon Small trays with a maximum of 2 SC duplex adaptors mounted in the connector plate for a maximum of 4 SC connectors. The Connectorised closure and the position of the mounting system allow for ease of access and traceability of the fiber elements on to the trays. The trays are white which makes it easy to see the colour of the fiber elements as they are routed through the fiber management system and on to the trays.

Key Features

• Maximum 24 fiber splice capacity
• 12 round ports and 1 oval port
• SC Duplex adaptors
• Maximum 12 3A splices per tray
• Splitter accommodation
• Cablelok compatible for all port sizes
• Quick release cover

Technical Specifications

Colour
Black (BK)
Connector Type
SC-APC
Cover Type
A
Method of Sealing
Cablelok, Heatshrink
Package Quantity per
box
Port
LM, B, R
Port count
1, 2, 10
Product Family
13 Port with 2 SC Duplex Adaptors
Product Group
FST Connectorised
Qty Trays
1
Type of Tray
Hellapon Small
