Hollyland Mars M1 Enhanced 5.5-Inch Wireless Transceiving Monitor, Single Pack

Hollyland Mars M1 Enhanced 5.5-Inch Wireless Transceiving Monitor, Single Pack

The Mars M1 Enhanced is a versatile wireless monitor that integrates transmitter, receiver, and monitoring functions into one solution. The 5.5” touch screen with groundbreaking advantages such as accurate color calibration and Rec.709 color gamut, delivers a pleasant monitoring experience with professional image analysis functions. The device supports an impressive LOS range of up to 450ft (150m) and boasts a low latency of only 0.08 seconds, allowing for more flexibility in device deployment and ensuring seamless monitoring without noticeable lag.

• TX, RX, and Monitor - All in One
• 1,000 Nits of Brightness
• 5.5” LCD Touch Screen
• 450ft (150m) LOS Range
• 0.08s Low Latency
• Revolutionary Operating Systema

TX, RX, and Monitor All in One
The Mars M1 Enhanced wireless transmission monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an all-in-one device integrating the functionalities of a transmitter, receiver, and monitor into a single solution, you can effortlessly switch between the transmitter and receiver modes on its settings interface. Furthermore, a single Mars M1 Enhanced transmitter can seamlessly connect with up to two receivers or four mobile device apps.

Universal Compatibility
Our device is designed to easily work with the Mars Pro series and Mars 4K video transmission systems. This compatibility design reduces the need for multiple separate devices, making setup simpler and providing a more streamlined and efficient shooting experience.

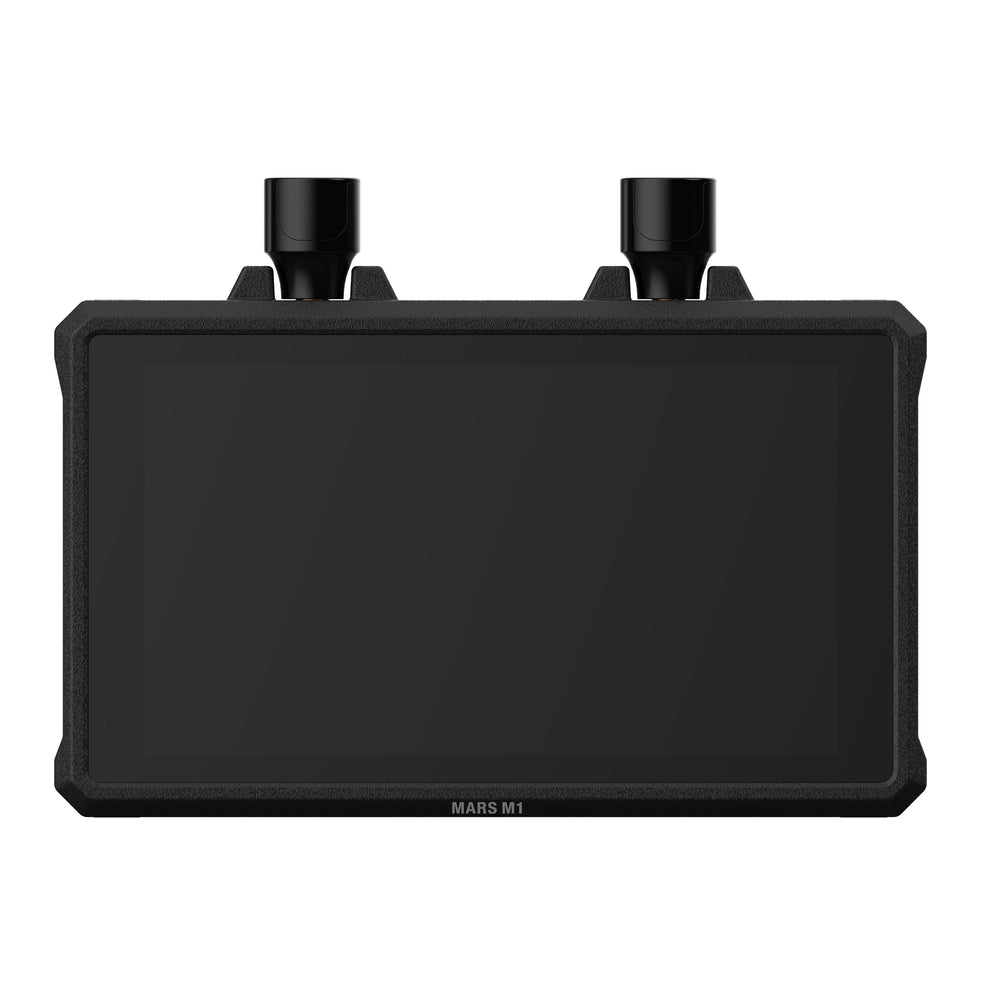

Responsive 5.5” LCD Touch Screen
The Mars M1 Enhanced is a top-quality monitor with excellent color accuracy. Its highly responsive 5.5” LCD touch screen and outstanding brightness of up to 1,000 nits make it perfect for outdoor use. The monitor undergoes a color calibration process during manufacturing, ensuring that every image is displayed with stunning resolution, vivid details, and unmatched color accuracy. Additionally, you can fine-tune the RGB gain using a simple reset option to achieve the perfect colors suitable for your needs.

450ft (150m) LOS Range, 0.08s Ultra-low Latency
The Mars M1 Enhanced provides an exceptional wireless video transmission range of 450ft (150m). With an ultra-low latency of 80ms, it virtually eliminates lag, guaranteeing stable and reliable wireless signal and delivering high-quality image monitoring overall.

Revolutionary HollyOS

Powered by Hollyland’s groundbreaking operating system - HollyOS, the Mars M1 Enhanced offers a comprehensive suite of advanced monitoring tools. Each of these tools provides you with complete control over your image, offering an opportunity to fine-tune every shot to your specific preferences.

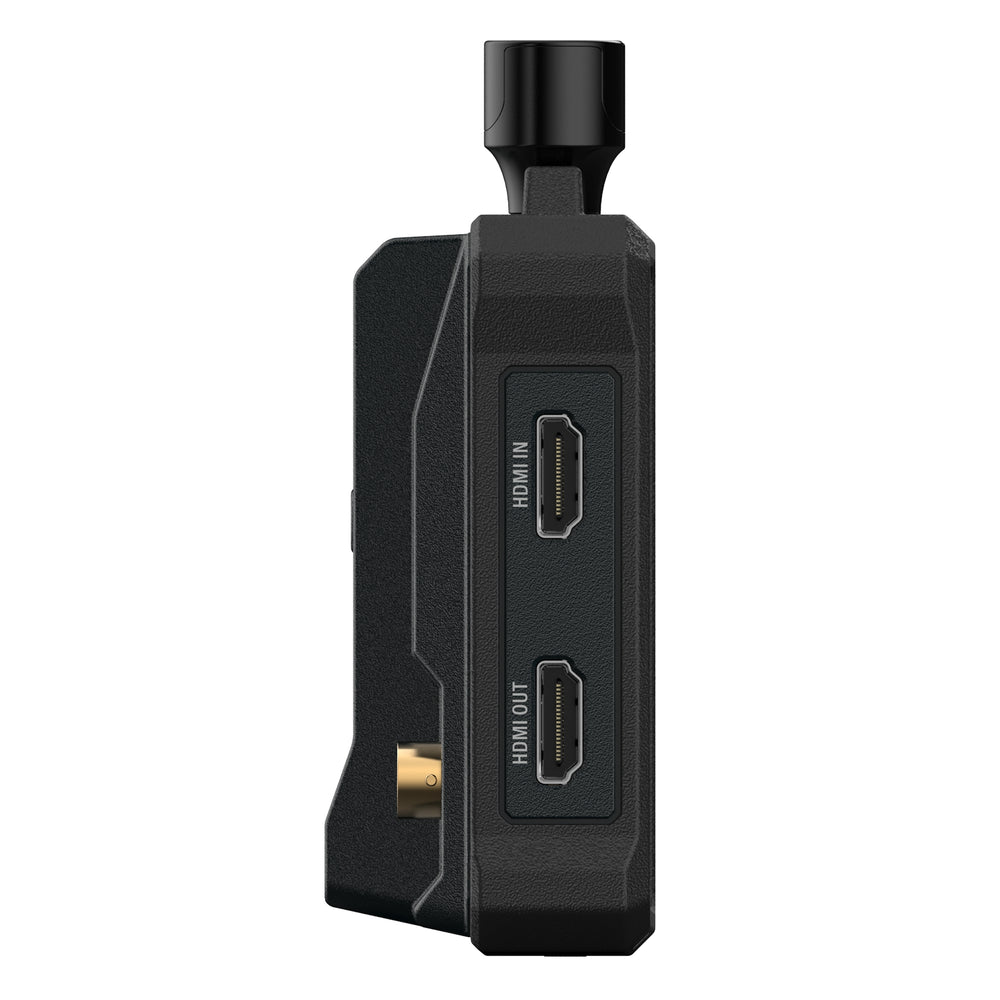

HDMI & SDI Support
Featuring decimal frame rate support, the Mars M1 Enhanced also supports 4K/30fps HDMI input and loopout for expanded connectivity and compatibility. Its SDI input also provides extensive connectivity options to accommodate an ever-widening range of professional video production needs.

Smart Channel Scan and Selection
The Mars M1 Enhanced features smart channel scan that helps determine which channels are occupied and which ones are selectable for ensuring a stable connection upon startup and allowing for interference-free transmission.

Innovative Trigger Recording and Video Playback
P/B & REC - The Mars M1 Enhanced is engineered to enhance the appeal of automatic trigger recording and video playback. Replay your video wherever and whenever you want, to ensure that it is captured at its finest quality.

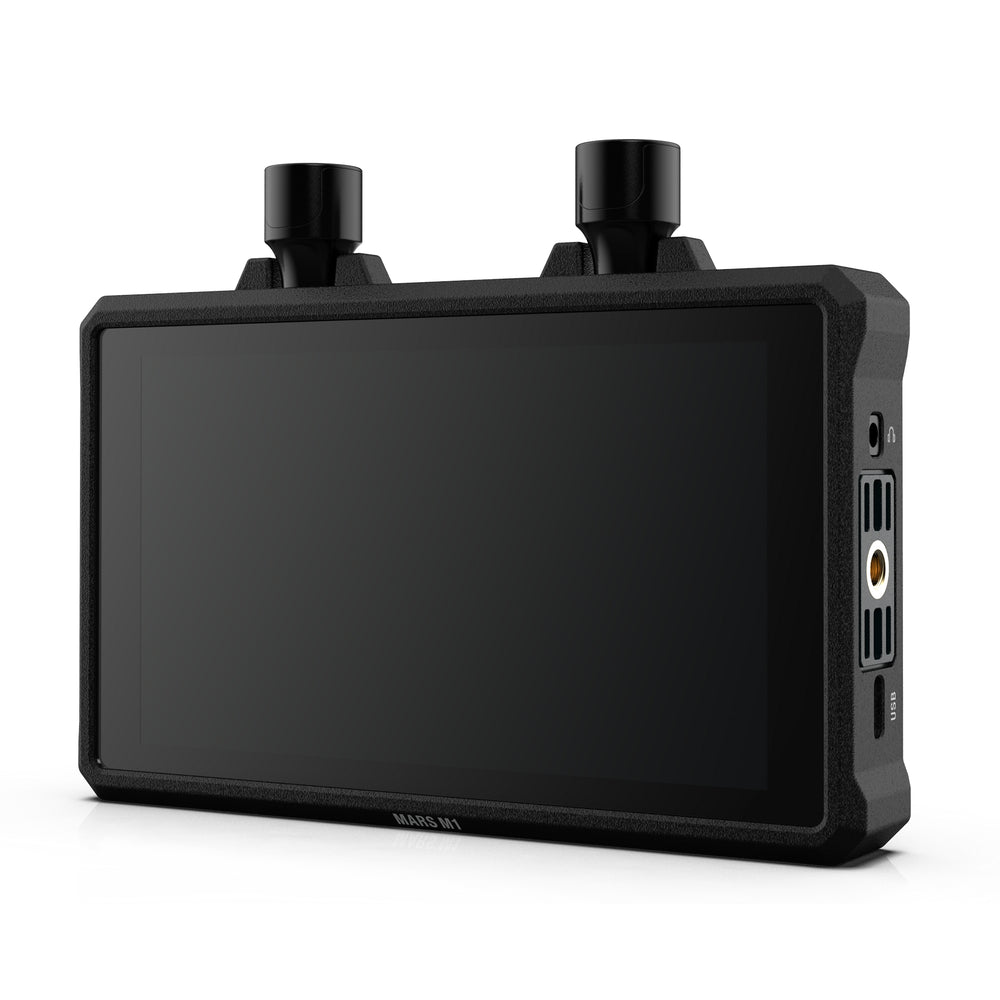

New Capsule Antennas and Textured Design
The Mars M1 Enhanced comes with new-designed capsule antennas that save your time by eliminating the need for repeated disassembly and reassembly.

Weighing approx. 400g (14.1oz), it is built with a highly impact-resistant body shell, ensuring maximum durability and protection even in challenging working environments. The shell is designed with a frosted texture, providing you with a comfortable and secure grip.

Technical Specifications

Included
Mars M1 Enhanced 5.5" Wireless Transceiving Monitor x1
Mars M1 Capsule Antenna x2
Mars M1 Tempered Glass Screen Protector x1
Type-C OTG Converter x1
D-Tap to Locking DC Power Adapter Cable x1
Mars M1 Enhanced User Manual x1
Mars M1 Enhanced Quick Guide x1
Warranty Card x1

Transmitter
Video Input Interface
HDMI 1.4b IN (Type-A female)
3G-SDI IN (BNC female)
Video Output Interface
HDMI 1.4b LOOPOUT (Type-A female)
Antenna Interface
Two RP-SMA male interfaces

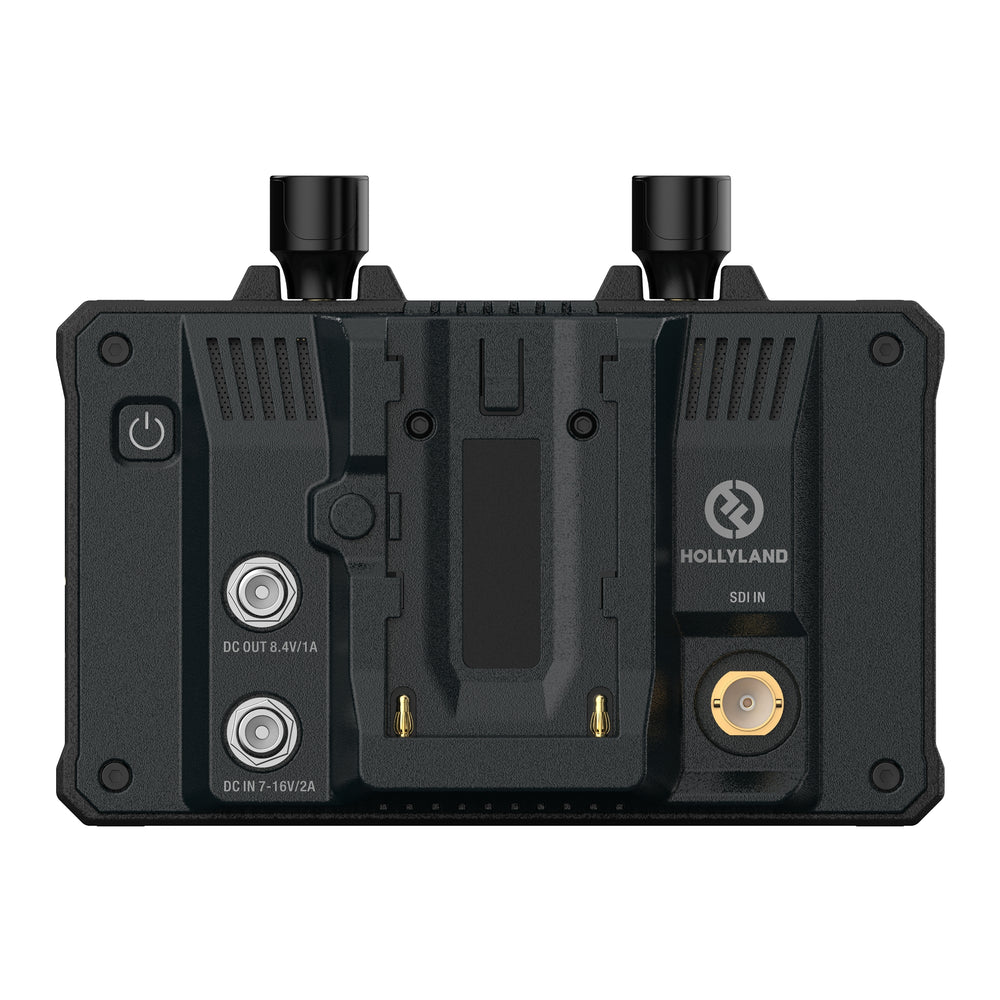

Power Input Interface
DC IN (2.0mm core socket)
Power Output Interface
DC OUT (2.0mm core socket)

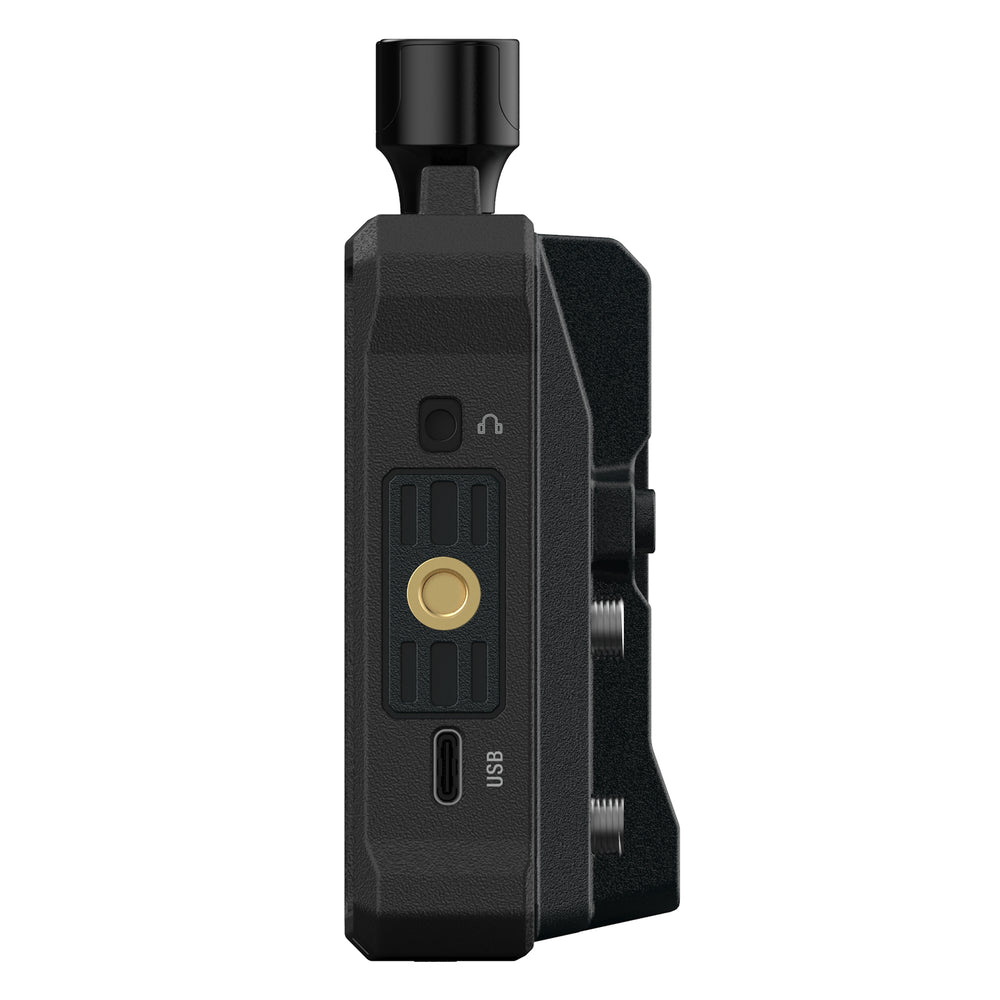

Headphone Jack
3.5mm
Upgrade Interface
USB-C (USB-2.0 OTG)
Screen Size
5.5” touchscreen
Screen Resolution
1920×1080 pixels
Pixel Density
403 PPI
Aspect Ratio
16:9
Screen Brightness
1,000 nits
Contrast Ratio
1000:1
Power Input Voltage
DC IN: 7-16V 2.5A (nominal 12V)
NP-F battery: 6.8V-8.4V
DC Output Voltage
8.4V±5%
Power Consumption
<16W
Net Weight
Approx. 400g (14.1oz) with external antennas excluded
Dimensions
(L x W x H): 152mm x 96mm x 40mm (5.98” x 3.78” x 1.57”) with external antennas excluded
Input Video Resolution
HDMI IN:
720p50/59.94/60 Hz
1080i50/59.94/60 Hz
1080p23.98/24/25/29.97/30/50/59.94/60 Hz
3840x2160p23.98/24/25/29.97/30 Hz
4096x2160p23.98/24/25/29.97/30 Hz

SDI IN:
720p50/59.94/60 Hz
1080i50/59.94/60 Hz
1080p23.98/24/25/29.97/30
1080p50/59.94/60 Hz (3G-SDI level A)
1080p50/59.94/60 Hz (3G-SDI level B)
Output Video Resolution
HDMI LOOPOUT (HDMI IN):
720p50/59.94/60 Hz
1080i50/59.94/60 Hz
1080p23.98/24/25/29.97/30/50/59.94/60 Hz
3840x2160p23.98/24/25/29.97/30 Hz
4096x2160p23.98/24/25/29.97/30 Hz

HDMI LOOPOUT (SDI IN):
720p50/59.94/60 Hz
1080i50/59.94/60 Hz
1080p23.98/24/25/29.97/30/50/59.94/60 Hz
Note: When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz.
Display Latency
<0.05s (test data when 1080p60 signals are transmitted in a laboratory environment. The display latency varies by video resolution.)
Operating Frequency
5.150-5.250GHz
5.250-5.350GHz
5.470-5.725GHz
5.725-5.850GHz
Codec Technology
H.264
Bit Rate
12Mbps
TX Power
<= 21+/-1.5dBm
Transmission Latency
Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment)
LOS Range
Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference)
Bandwidth
20MHz
Audio Format
Eight audio channels for the HDMI 1.4b
Operating Temperature
-10℃ to 60℃ (14° F to 140° F)
Storage Temperature
-40℃ to 60℃ (-40° F to 140° F)

Receiver
Video Input Interface
/
Video Output Interface
HDMI 1.4b OUT (Type-A female)
Antenna Interface
Two RP-SMA male interfaces
Power Input Interface
DC IN (2.0mm core socket)
Power Output Interface
DC OUT (2.0mm core socket)
Headphone Jack
3.5mm
Upgrade Interface
USB-C (USB-2.0 OTG)
Screen Size
5.5” touchscreen
Screen Resolution
1920×1080 pixels
Pixel Density
403 PPI
Aspect Ratio
16:9
Screen Brightness
1,000 nits
Contrast Ratio
1000:1
Power Input Voltage
DC IN: 7-16V 2.5A (nominal 12V)
NP-F battery: 6.8V-8.4V
DC Output Voltage
8.4V±5%
Power Consumption
<13.6W
Net Weight
Approx. 400g (14.1oz) with external antennas excluded
Dimensions
(L x W x H): 152mm x 96mm x 40mm (5.98” x 3.78” x 1.57”) with external antennas excluded
Input Video Resolution
/
Output Video Resolution
HDMI OUT:
720p50/59.94/60 Hz
1080i50/59.94/60 Hz
1080p23.98/24/25/29.97/30/50/59.94/60 Hz
1080p50/59.94/60 Hz

HDMI OUT:
720p50/59.94/60 Hz
1080i50/59.94/60 Hz
1080p23.98/24/25/29.97/30/50/59.94/60 Hz
Note: When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz.
Display Latency
/
Operating Frequency
5.150-5.250GHz
5.250-5.350GHz
5.470-5.725GHz
5.725-5.850GHz
Codec Technology
H.264
Bit Rate
12Mbps
TX Power
<= 21+/-1.5dBm
Transmission Latency
Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment)
LOS Range
Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference)
Bandwidth
20MHz
Audio Format
Eight audio channels for the HDMI 1.4b
Operating Temperature
-10℃ to 60℃ (14° F to 140° F)
Storage Temperature
-40℃ to 60℃ (-40° F to 140° F)
