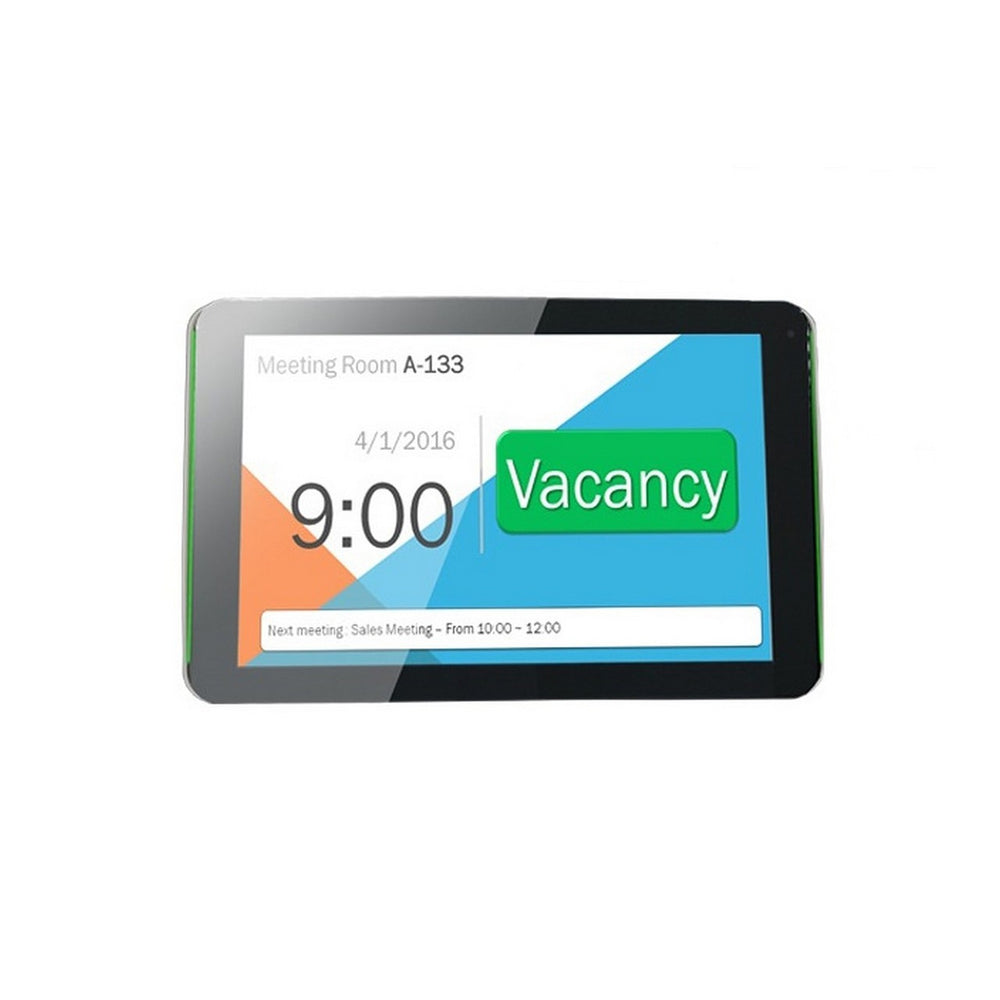

IAdea XDS-1078 | 10 Inch LCD IPS Wireless Smart Touchscreen Signboard Monitor

IAdea XDS-1078 10 Inch LCD IPS Wireless Smart Touchscreen Signboard Monitor

The XDS-1078 smart signboard is our most elegant design, perfect for meeting room signage where décor is a factor. It includes full touch capabilities, Power-over-Ethernet and 1280×800 resolution, for amazing on screen graphics. The XDS-1078 includes an integrated back cover flush mounting bracket which provides clean looking countertop display with an integrated stand. The XDS-1078 is very thin as well measuring in at 1 / 28mm thick. It includes a programmable LED side light for immediate visible communication of room status and more. For example, these lights can display green when the room is available, allowing viewers to tell at a distance which meeting room to visit.

Our XDS-1078 seems to be designed with one primary purpose, your meeting rooms but that doesnt mean it isnt great for countertops and retail. When the look and feel of the screen itself matters, choose the XDS-1078.

With the XDS-1078 Signboard, every conference and meeting room can have a touch screen based digital meeting board. Using HTML5 or an advanced CMS you can automatically connect on-screen content to your group calendar so meetings automatically updates as your schedule changes. The light-up LED bars on the side of the screen help employees determine room status at a glance green means open and red means booked.

Key Features

• Open Standards Supported: HTML5, JavaScript, and CSS, Android 4.4 API, W3C SMIL for cross-platform management, W3C Widgets for HTML delivery
• POPAI Digital Signage Content Standards,including: S1, S2, S4, S5, S6, S7, S8, S9, S10, S11, S12, E1, E2, E4, E7, E8
• Advanced Signage Features: Remote commissioning, AlwaysOn, AppLock to prevent unauthorized access, StrongCache for continued playback even when network is not available
• HTML5 Support: Widgets for calendar, clock, news, weather, Twitter, and web page integration, HTML5 technologies including CSS and Javascript, WebKit-based browser engine, same as Google, Chrome and Apple Safari browsers
• Display and Sound : 10.1 LCD wide aspect ratio, 10 points multi-touch, 300 nits maximum brightness, 1280x800 high resolution, View Angle: 178/178, Built-in stereo speakers 2Wx2, Programmable LED bar x 2, HDMI output to external display
• Connectivity: Wi-Fi: 802.11 b/g/n, Multi-points touch, Ethernet 10/100 BASE-T, Bluetooth 4.0, 3.5mm analog stereo audio out, USB 2.0 x 2, Micro USB for ADB, Optional 3G/4G mobile module via USB
• Local Storage: 8 GB eMMC memory (approx. 360 minutes of typical 720p video @3 Mbps), Micro SD card slot (support up to 32GB storage)

Technical Specifications

Open Standards Supported:
HTML5, JavaScript, and CSS
Android 4.4 API
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery
POPAI Digital Signage Content Standards including:
S1 (JPEG 480p baseline)
S2 (JPEG 720p baseline)
S4 (MPEG L2 audio)
S5 (MP3 audio, 384Kbps)
S6 (MPEG-1 SIF, 3Mbps CBR)
S7 (MPEG-1 480p, 10Mbps CBR)
S8 (MPEG-1 720p, 15Mbps CBR)
S9 (MPEG-2 480p, 6Mbps CBR)
S10 (MPEG-2 720p, 12Mbps CBR)
S11 (H.264/MPEG-4 AVC, 480p, 6Mbps CBR)
S12 (H.264/MPEG-4 AVC, 720p, 10Mbps CBR)
E1 (PNG 24bpp+alpha, 480p)
E2 (PNG 24bpp+alpha, 720p)
E4 (VC-1/WMV9, MP@ML, 720p)
E7 (MPEG-4 ASP, 480p, 10Mbps CBR)
E8 (H.264/MPEG-4 AVC, 1080p, 20Mbps CBR)
Advanced Signage Features:
Remote commissioning
AlwaysOn, AppLock to prevent unauthorized access
StrongCache for continued playback even when network is not available
HTML5 Support:
Widgets for calendar, clock, news, weather, Twitter, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome and Apple Safari browsers
Display and Sound:
10.1 LCD wide aspect ratio
10 points multi-touch
300 nits maximum brightness
1280x800 high resolution
View Angle: 178/178
Built-in stereo speakers 2Wx2
Programmable LED bar x 2
HDMI output to external display
Content Management:
SignApps Express Utility
3rd party solution (optional license)
Connectivity
Wi-Fi: 802.11 b/g/n
Multi-points touch
Ethernet 10/100 BASE-T
Bluetooth 4.0
3.5mm analog stereo audio out
USB 2.0 x 2
Micro USB for ADB
Optional 3G/4G mobile module via USB
Local Storage:
8 GB eMMC memory (approx. 360 minutes of typical 720p video @3 Mbps)
Micro SD card slot (support up to 32GB storage)
Mounting kit:
Built-in VESA compatible 75x75(mm) posts
Supplied accessories:
Table stand
Adapter
Power plug
DC in & Micro SD stopper
HW & SW QSG
Expansion Options:
16GB/32GB micro SD/SDHC memory card
AC Adapter:
Input: 100-240V, 50-60 Hz, 0.5A Max.
Output: 12V, 1.5A
UL/CB certified power supplies
Interchangeable connector system includes US plugs (Option for EU, UK and AUS plugs)
Power-over-Ethernet (PoE) single-wire installation
Environmental:
Operating temperature: 0 to 45°C
Storage Humidity: 10 to 85% @ 40°C, non-condensing
Dimensions for Product and Package:
Size: 260mm(W) x 162mm(H) x 28mm(D) 10.23(W) x 6.37(H) x 1.02(D)
Weight: 727g/1.6 lb
Individual Package Size: 333mm(W) x 94mm(H) x 221mm(D) 13.11(W) x 3.7(H) x 8.7(D)
Outer Carton Size: 694mm(W) x 259mm(H) x 528mm(D) 27.32(W) x 10.19(H) x 20.78(D)
Units per Outer Carton: 10
Certifications:
CE/FCC
