Icron 2311 USB 2.0 Ranger 2311 Single Port CAT 5e-6-7 100m Extender
Icron 2311 USB 2.0 Ranger 2311 Single Port CAT 5e-6-7 100m Extender is backordered. Please call for ETA 877-779-8964
Condition: New
Description
Description

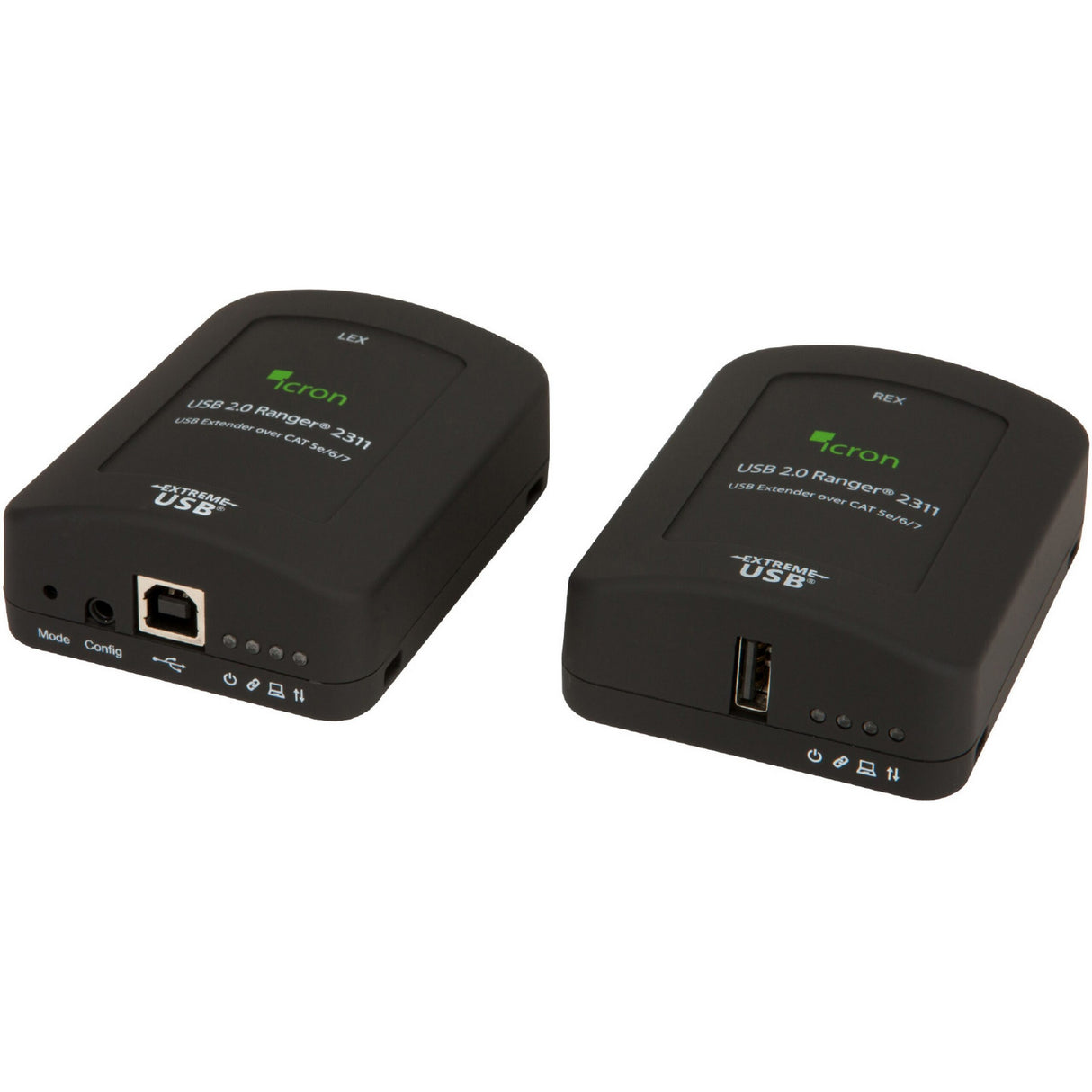

Icron 2311 USB 2.0 Ranger 2311 Single Port CAT 5e-6-7 100m Extender
The Icron USB 2.0 Ranger 2311 with flexible power extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote Extender). This USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
The USB 2.0 Ranger 2311 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.
This USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2311 is plug and play - no software drivers required - and works with all major operating systems: Windows, macOS, and Linux
Additionally, this Extreme USB based extension system is ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.
Key Features
- Flexible power - connect the power adapter to either the LEX or REX
- Supplies up to 1 Amp to USB port
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Supports throughputs of up to 480Mbps
- Transparent USB extension
- Plug and play; no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Technical Specifications
Range
Direct Connect
Up to 100m (330 ft) over CAT 5e/6/7
Speeds
USB 2.0
Up to 480Mbps
USB 1.1
Up to 12Mbps
Power
Power Supply
100-240V AC Input, 24V 1A DC Output
LEX (Local Extender)
USB Connector
1x USB Type B Receptacle
Link Connector
1x RJ45
Dimensions
65.0 x 87.5 x 30.0mm (2.6 x 3.4 x 1.2”)
Mounting
Slots for Cable Ties
Enclosure Material
Black ABS with Rubberized Coating
REX (Remote Extender)
USB Connector
1x USB Type A Receptacle
Link Connector
1x RJ45
Available Current
Up to 1 Amp to USB port
Dimensions
65.0 x 87.5 x 30.0mm (2.6 x 3.4 x 1.2”)
Mounting
Slots for Cable Ties
Enclosure Material
Black ABS with Rubberized Coating
Environmental
Operating Temperature
0C to 50C (32F to 122F)
Storage Temperature
-20C to 70C (-4F to 158F)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 90% relative humidity, non-condensing
Compliance
EMC
FCC (Class A), CE (Class A)
Environmental
RoHS2 (CE)
Safety
Flammability V-0
Item Includes
Local Extender (LEX) module
Remote Extender (REX) module
USB Cable
Quick Start Guide
International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
Warranty
2 Year Warranty
