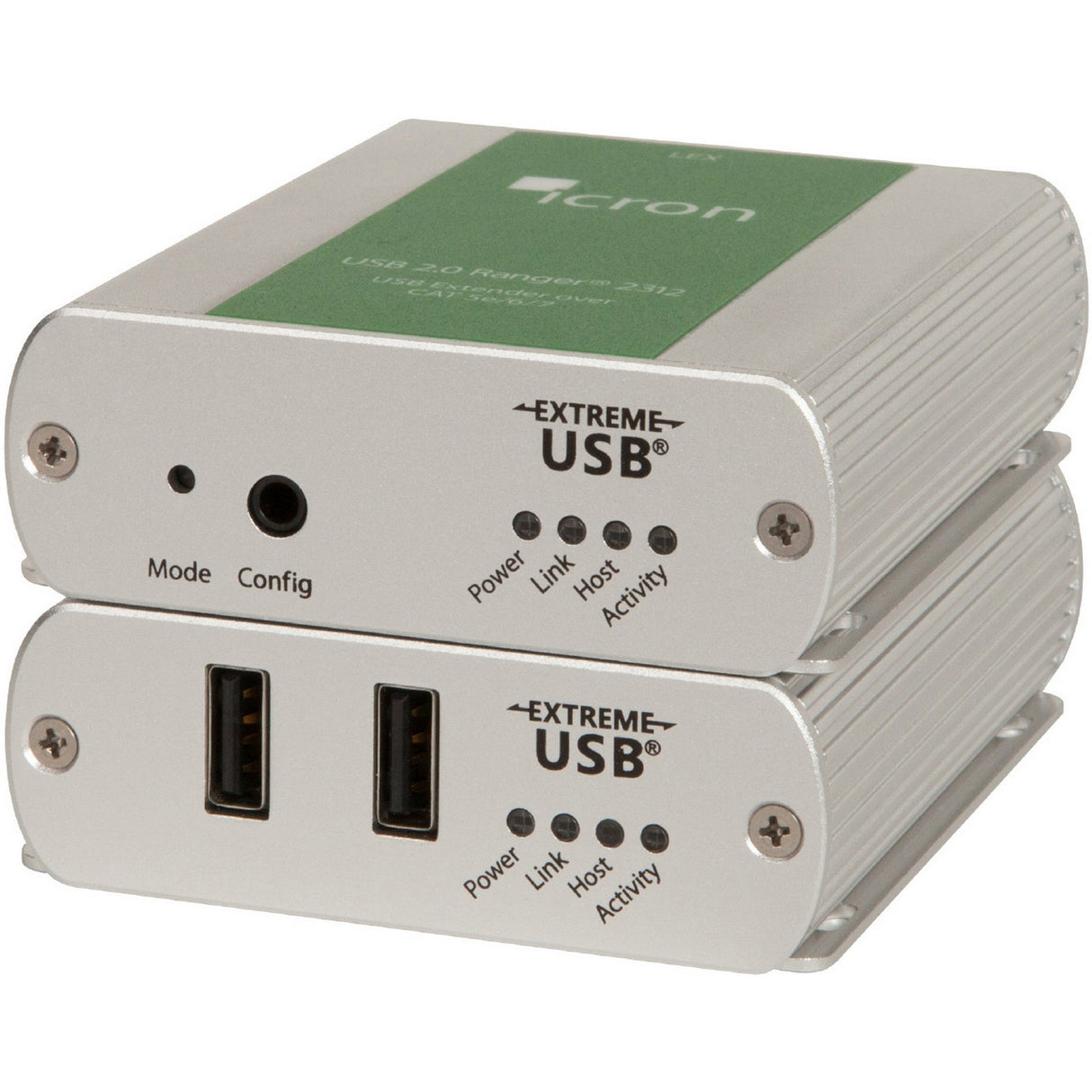

Icron 2312 USB 2.0 Ranger Dual Port CAT5e/6/7 100m Extender
Description
Description
Icron 2312 USB 2.0 Ranger Dual Port CAT5e/6/7 100m Extender
The USB 2.0 Ranger® 2312 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.
This dual port USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2312 is plug and play - no software drivers required - and works with all major operating systems: Windows®, macOS™, and Linux®
Additionally, this ExtremeUSB® based extension system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.
Key Features
- USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
- Supplies up to 1.5 Amps total when both USB ports are in use
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Supports all USB 2.0/1.1 devices up to 480 Mbps
- Metal enclosures with FCC/CE Class B certification
- Two year warranty
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™M, and Linux®
Technical Specifications
Range
Direct connect up to 100m (330 ft) over CAT 5e/6/7
Speeds
USB 2.0: up to 480 Mbps
USB 1.1: up to 12 Mbps
Power
Power Supply: 100-240V AC Input, 24V 1A DC Output. Apply at either LEX or REX.
LEX (Local Extender)
USB Connector: 1 x USB Type B Receptacle
Link Connector: 1 x RJ45
Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4” x 3.0 x 1.0”)
Mounting: Slots for cable ties or optional mounting kit available
Enclosure Material: Silver anodized aluminum
REX (Remote Extender)
USB Connector: 2 x USB Type A Receptacle
Link Connector: 1 x RJ45
Available Current: up to 1 Amp to USB port; 1.5 Amps total shared
Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
Mounting: Slots for cable ties or optional mounting kit available
Enclosure Material: Silver anodized aluminum
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
Compliance
FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1
Support
Warranty: 2-year
