Icron  |  SKU: ICRO-300115

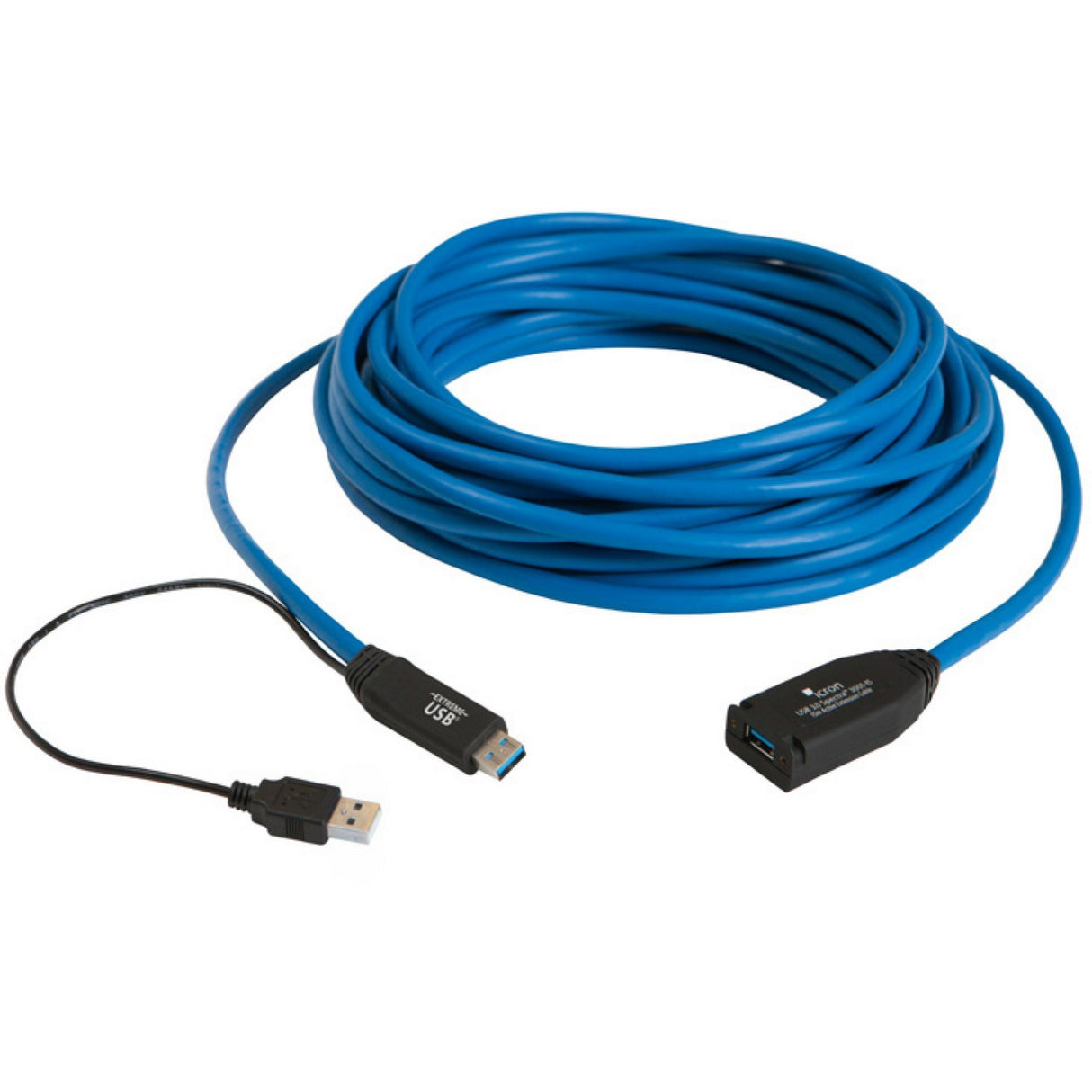

Icron 3001-15 USB 3.0 1-Port Active Copper Extension Cable, 15-Meter

$35000
🚚 Order within the next 2 hours, 15 minutes for delivery by 17 May, 2024.

Condition: New

Description

Icron 3001-15 USB 3.0 1-Port Active Copper Extension Cable, 15-Meter

The Icron USB 3.0 Spectra 3001-15 is a rugged grade single-port USB 3.0 SuperSpeed active copper extension cable, a perfect short-range extension solution when up to 15 meters distance is required for your application. The Spectra 3001-15 cable supports throughput of 5Gbps, features a locking USB 3.0 port delivering 900mA power, and is bus powered so no external power outlet is required. This cable is well suited for AIA USB3 Vision camera applications and comes with a two-year warranty.

Note: backward compatibility to USB 2.0/1.1 is not supported.

USB 3.0's distance limit is approximately 3 meters. When up to 15 meters is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged bus-powered active cable supports USB 3.0 5Gbps throughputs and provides 5V/900mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a locking USB port as specified by AIA USB3 Vision. The cable is warranted for 2 years from the date of purchase. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.

Key Features

  • 15-meter USB 3.0 extension
  • Supports full USB 3.0 throughputs up to 5Gbps
  • Bus powered from host computer; no external power supply required
  • Provides 5V, 900mA power at USB 3.0 device port
  • Second USB power connector for use if additional power is required
  • Locking USB connector
  • Device port designed for convenient cable tie mounting
  • Rugged grade cabling
  • Status colored LED at device port with power, enumeration and over-current indication
  • Works with all AIA USB3 Vision compliant devices

Technical Specifications

Range
15m (49.21 ft)
Speeds
USB 3.0 up to 5Gbps (not backward compatible with USB 2.0/1.1)
Physical
Active Copper Cable
USB Connector on Device Side 1x USB 3.0 Type A Locking Receptacle
USB Connectors on Host Side
1x USB 3.0 Type A Host Connector
1x USB 3.0 Type A Power Connector
(Required for devices drawing more than 2.5W)
Cable Diameter 6.9mm (0.27”)
Jacket Material PVC
Bend Radius 28mm (1.10”)
Mounting Slots on Device Side Slots for Cable Tie
Power
Power Source Bus Power
Available Power to Device 5V, 900mA*
Environmental
Operating Temperature
0 Degrees C to 45 Degrees C (32 Degrees F to 113 Degrees F)
Storage Temperature
-20 Degrees C to 70 Degrees C (-4 Degrees F to 158 Degrees F)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 90% relative humidity, non-condensing
Compliance
EMC FCC (Class B), CE (Class B)
Environmental
RoHS2 (CE)
Flammability
VW-1 (UL 1581)
Machine Vision Works with all AIA USB3 Vision compliant devices
Item Includes
15-meter USB 3.0 Spectra 3001-15 Active Cable
Cable Tie
Quick Start Guide
Warranty
2 Year Warranty
