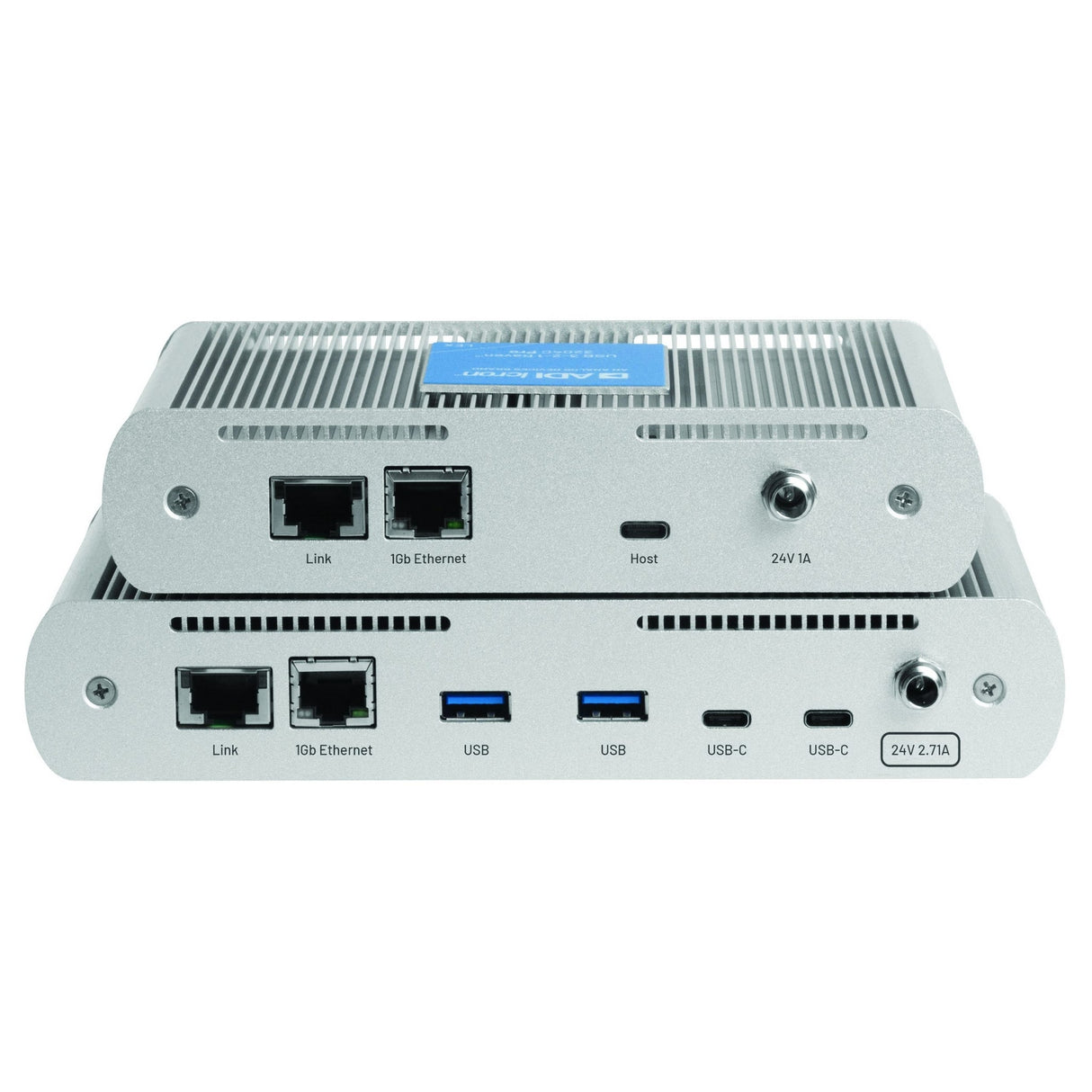

Icron 3204C 4-Port USB 3 5Gbps Extender Over 100m CAT 6a/7 Cable

The Icron 3204C 4-Port USB 3 5Gbps 100m CAT 6a/7 Cable represents the latest USB 3-2-1 extender innovation, enabling users to extend various USB 3 (5Gbps) device types, as well as USB 2.0 and 1.1 devices, across a point-to-point connection up to 100m using a single CAT 6a/7 cable. This extender is perfect for extending USB 3 conferencing cameras and audio devices in boardrooms and conference rooms. The Raven extension series has been extensively tested with leading USB 3.1 conferencing cameras in conjunction with major UC conferencing applications such as Zoom, Teams, and Skype.

This 4-port USB 3.0 extender supports data rates up to 5Gbps and is plug-and-play, requiring no software drivers for Windows®, macOS™, Linux®, and Chrome OS™.

Moreover, this USB 3-2-1 extender system based on ExtremeUSB-C™ is FCC/CE Class B certified and offers backward compatibility, making it suitable for use with all USB-C or USB-A peripherals, as well as USB 3.1 conference cameras, including sound bars, touchscreens, hubs, DACs, and other USB 3, 2, and 1 devices.

Key Features

• Compatible with USB 3, 2, and 1.1 devices concurrently at speeds up to 5Gbps

• For USB 3 Isochronous support, it is recommended to use Raven 3204C Pro

• Ability to power the LEX through USB-C connection from host, if host can provide 15W to LEX

• REX comes with 2 USB-C ports and 2 USB-A ports

• Provides 3A at each USB-C port and 1.2A at each USB-A port

• Includes 1Gb Ethernet pass-through to simplify installations

• Supports single cable CAT 6a/7 up to 100m

• Establishes point-to-point connection

• Complies with FCC and CE (Class B) standards

• Backed by a two year warranty

• Transparent USB extension for USB 3, 2, and 1 devices

• True plug and play functionality; no need for software drivers

• Compatible with major operating systems: Windows®, macOS™, Linux®, and Chrome OS™

Technical Specifications

Direct Connect
Up to 100m (330 ft) over CAT 6a/7 cable
USB Device Support
USB Bandwidth up to 5Gbps
Device Compatibility: All Devices Types and Classes (Control, Interrupt, Bulk, Isochronous**)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
LEX Unit USB Connector
1x USB-C Receptacle
REX Unit USB Connector
2x USB 3.1A Receptacles, 2x USB-C Receptacles
LEX and REX Unit 1GbE Pass-Through
1x RJ45 Ethernet 100/1000 Port
LEX and REX Unit Link Connector
1x RJ45 Ethernet Link Port
Maximum USB Devices Supported
30 USB devices or hubs
Power Supply
LEX: 24V 1A DC Locking Jack
REX: 24V 2.71A DC Locking Jack
Available Current at REX
Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
Enclosure Material
Silver anodized aluminum
LEX Dimensions (W x D x H)
165.0mm x 100.0mm x 35.0mm / 6.50” x 4.00” x 1.38”
REX Dimensions (W x D x H)
197.0mm x 100.0mm x 35.0mm / 7.75” x 4.00” x 1.38”
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
LEX Weight
572 g (1.26 lbs.)
REX Weight
697 g (1.54 lbs.)
Total System Shipping Weight
2.5 kg (5.5 lbs.)
Compliance
FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1
Warranty
2-year
