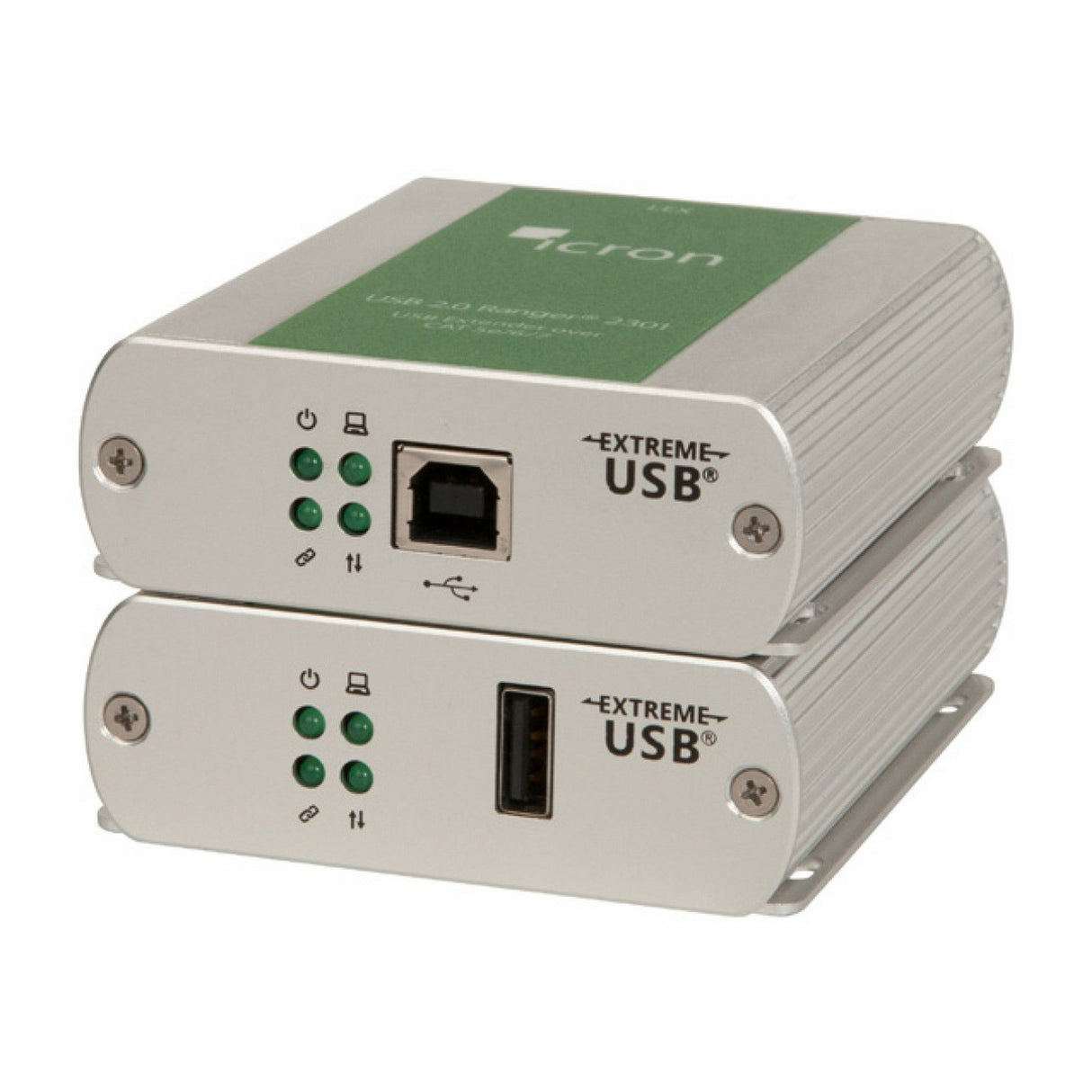

Icron Ranger 2301GE-LAN 1-Port USB 2.0 Ethernet LAN Extender System

Icron Ranger 2301GE-LAN 1-Port USB 2.0 Ethernet LAN Extender System

The Icron USB 2.0 Ranger 2301GE-LAN extends high-speed USB 2.0 connections up to 100m over a GigE Local Area Network (LAN) or directly connect over CAT 5e/6/7 cabling. This 1-port USB 2.0 LAN extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

The USB 2.0 Ranger 2301GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or single CAT 5e/6/7 cable up to 100m in point-to-point fashion. Extending over LAN saves on installation time and provides IT visibility.

This 1-port USB 2.0 LAN extender supports data rates at up to 480 Mbps and is plug and play - no software drivers required - for all major operating systems: Windows, macOS, and Linux

Additionally, this ExtremeUSB based 1-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Key Features

• USB 2.0 throughput up to 480Mbps*
• Pre-paired networked configuration** for simple installation
• Supplies up to 1 Amp to USB port
• Mass Storage Acceleration for USB 2.0 device bulk transfers
• FCC/CE Class B
• Transparent USB extension
• True plug and play; no software drivers required

Technical Specifications

Range
Direct Connect
Up to 100m (330 ft) over solid core CAT 5e/6/7
Network Connect
Up to 100m (330 ft) between switches over solid core CAT 5e/6/7
USB Device Support
Maximum Throughputs
USB 2.0: Up to 480Mbps*; USB 1.1: Up to 12Mbps
Traffic Types
All USB 2.0 and 1.1 Traffic Types (Control, Interrupt, Isochronous and Bulk)
Device Types
All USB 2.0 and 1.1 Device Types and Classes
Maximum Number
Up to 30 devices
Networking
Standards
1000BASE-T*
Data Traffic
Layer 2
LEX (Local Extender)
USB Connector
1x USB Type B Receptacle
Link Connector
1x RJ45
Dimensions
86.0 x 75.0 x 26.0mm (3.4 x 3.0 x 1.0”)
Enclosure Material
Silver Anodized Aluminum
REX (Remote Extender)
USB Connector
1x USB Type A Receptacle
Link Connector
1x RJ45
Dimensions
86.0 x 75.0 x 26.0mm (3.4 x 3.0 x 1.0”)
Enclosure Material
Silver Anodized Aluminum
Available Current
Up to 1 Amp to USB port
Power Supply
100-240V AC Input, 5V 3A DC Output
Environmental
Operating Temperature
0 Degrees C to 50 Degrees C (32 Degrees F to 122 Degrees F)
Storage Temperature
-20 Degrees C to 70 Degrees C (-4 Degrees F to 158 Degrees F)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 90% relative humidity, non-condensing
Compliance
EMC & Environmental
FCC (Class B), CE (Class B), RoHS2 (CE)
Item Includes
Local Extender (LEX)
Remote Extender (REX)
2-meter USB cable
Quick Start Guide
International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
Warranty
2 Year Warranty
