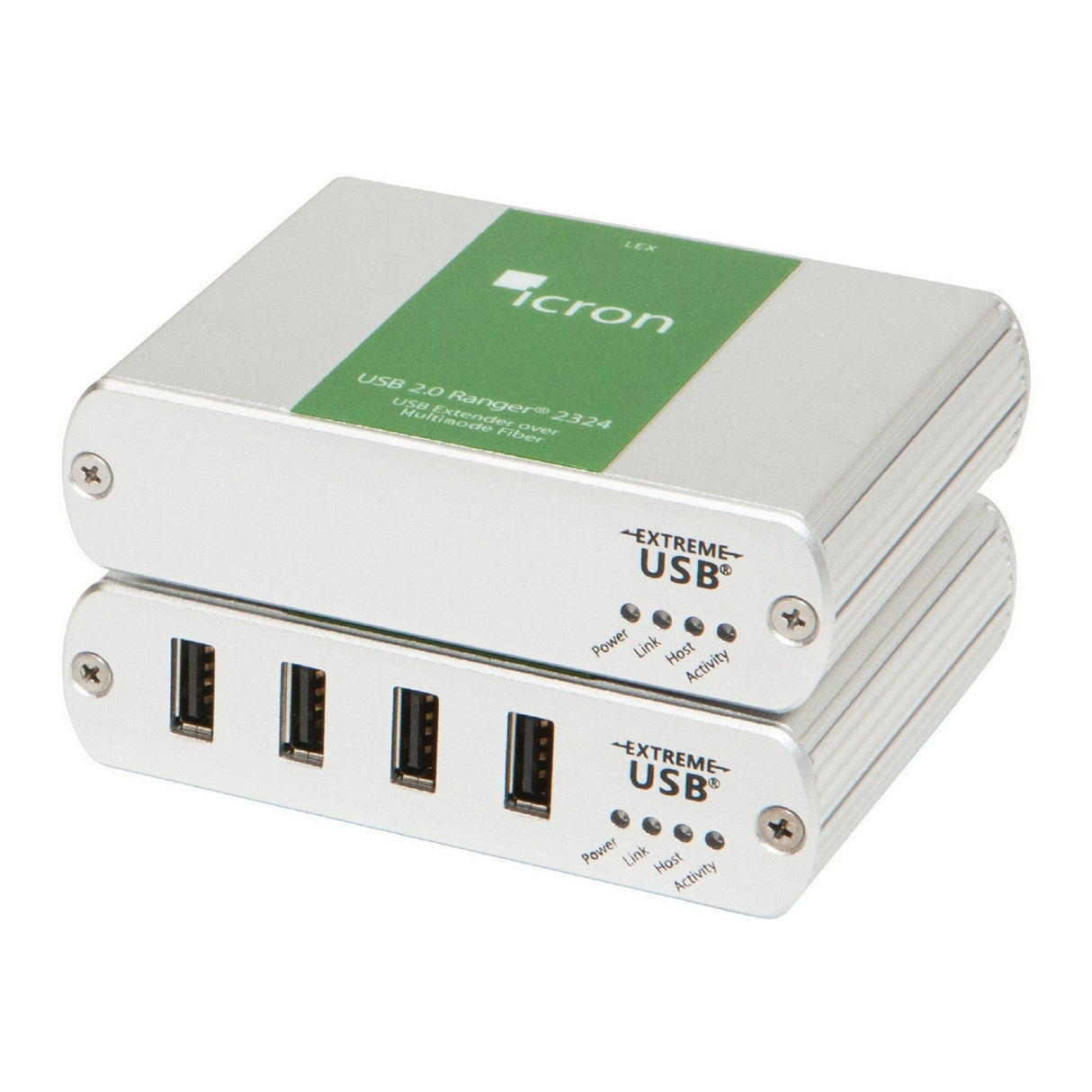

Icron Ranger 2324 USB 2.0 4-Port Multimode Fiber Extender
Description
Description
Icron Ranger 2324 USB 2.0 4-Port Multimode Fiber Extender
The Icron USB 2.0 Ranger 2324 extends high-speed USB 2.0 connections at up to 480 Mbps over 500m (1,640 ft) of OM2 fiber optic cable. This 4-port USB 2.0 multimode fiber extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
The USB 2.0 Ranger 2324 allows users to extend USB 2.0/1.1 connections up to 500m using OM2 (or better) fiber optic cable.
This 4-port USB 2.0 multimode fiber extender supports data rates at up to 480 Mbps and is plug and play - no software drivers required - for all major operating systems: Windows, macOS, and Linux
Additionally, this ExtremeUSB based USB 2.0 multimode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.
Key Features
- Supports USB 2.0 throughputs of up to 480Mbps
- Supplies up to 1 Amp per USB port; 600mA when all four ports are used concurrently
- Integrated hub provides ports for four USB devices, use hubs to add more
- Electrical isolation
- Reliable operation with USB 2.0 and 1.1 devices and hubs
- Transparent USB extension
- True plug and play; no software drivers required
Technical Specifications
Distance
Up to 500m over Multimode Fiber (OM2+)
USB Device Support Speeds
Maximum Throughputs
USB 2.0: Up to 480Mbps, USB 1.1: Up to 12Mbps
Traffic Types
All USB 2.0 and 1.1 Traffic Types
Device Types
All USB 2.0 and 1.1 Device Types
Maximum Number
Up to 30 devices
LEX (Local Extender)
USB Connector
1 x USB Type B Receptacle
Link Connector
1 x SFP Duplex LC
Dimensions
100.0 x 76.0 x 26.0mm (3.9 x 3.0 x 1.0”)
Enclosure Material
Silver Anodized Aluminum
REX (Remote Extender)
USB Connectors
4 x USB Type A Receptacles
Link Connector
1 x SFP Duplex LC
Dimensions
100.0 x 76.0 x 26.0mm (3.9 x 3.0 x 1.0”)
Enclosure Material
Silver Anodized Aluminum
Available Current
Up to 600mA to each USB port concurrently
Power Supply
100-240V AC Input, 24V 1A DC Output
Environmental
Operating Temperature
0 Degrees C to 50 Degrees C (32 Degrees F to 122 Degrees F)
Storage Temperature
-20 Degrees C to 70 Degrees C (-4 Degrees F to 158 Degrees F)
Operating Humidity
20% to 80% Relative Humidity, Non-Condensing
Storage Humidity
10% to 90% Relative Humidity, Non-Condensing
Compliance
EMC
FCC (Class B), CE (Class B)
Environmental
RoHS2 (CE)
Item Includes
Local Extender (LEX)
Remote Extender (REX)
SFP singlemode transceiver modules
2-meter USB cable
Quick Start Guide
International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
Warranty
2 Year Warranty
