Icron Rover 1850 USB 1.1 Single Port Cat5e Extender
Description
Description
Icron Rover 1850 USB 1.1 Single Port Cat5e Extender
The Icron USB Rover 1850 extends USB 1.1 connections beyond the desktop up to 85* meters without external power adapters, ideal for keyboards, mice, game controllers and interactive whiteboards - including all SMART Boards and Promethean ActivBoards.
USB Rover products operate over standard solid core Cat 5e/6/7 cabling. The USB Rover 1850 uses technology ideal for extending USB peripherals and does not require additional software for either the computer or the target devices.

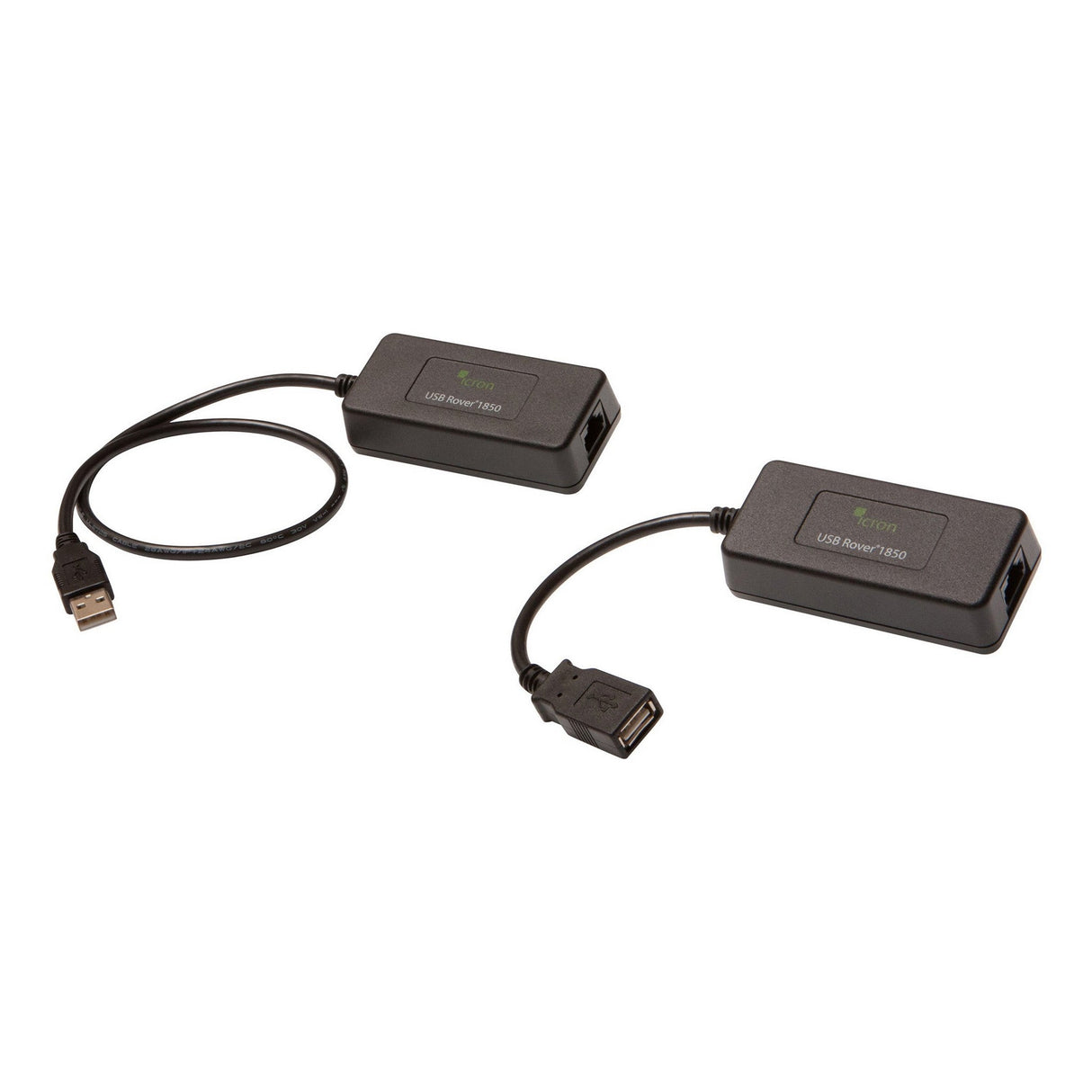

The USB Rover 1850 product is composed of two separate units: The Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer, and the remote USB device to the REX unit. Cat 5e/6/7 cabling is used to connect the LEX and REX units over a distance of up to 85m (279 ft).
Key Features
- Remote extender supplies up to 400mA** to USB devices
- Supports both full-speed (12Mbps) and low-speed (1.5Mbps) throughputs
- Reliable operation with all USB 2.0 and 1.1 devices, including hubs
- Robust ESD and EFT immunity for industrial environments
- Transparent USB extension
- True plug and play; no software drivers required
Technical Specifications
Range
Full-Speed and Low-Speed
Up to 40m (131 ft)
Low-Speed
Up to 85m (279 ft) *
LEX (Local Extender)
USB Connector
1x USB Type A Plug
Pig Tail Length
45.7cm (18”)
Link Connector
1x RJ45
Dimensions
85 x 40 x 22mm (3.34 x 1.57 x 0.87”)
Enclosure Material
Black ABS
REX (Remote Extender)
USB Connector
1x USB Type A Receptacle
Pig Tail Length
15.2cm (6”)
Link Connector
1x RJ45
Maximum Current Available
400mA when LEX is supplied with 700mA
Dimensions
85 x 40 x 22mm (3.34 x 1.57 x 0.87”)
Enclosure Material
Black ABS
Environmental
Operating Temperature
0 Degrees C to 50 Degrees C (32 Degrees F to 122 Degrees F)
Compliance
Emissions
FCC (Class A), CE (Class A)
Immunity
CE Criteria A
Environmental
RoHS2 (CE)
Safety
CPSIA, Flammability V-1
Item Includes
Local Extender (LEX) module
Remote Extender (REX) module
Quick Start Guide
Warranty
3 Year Warranty
