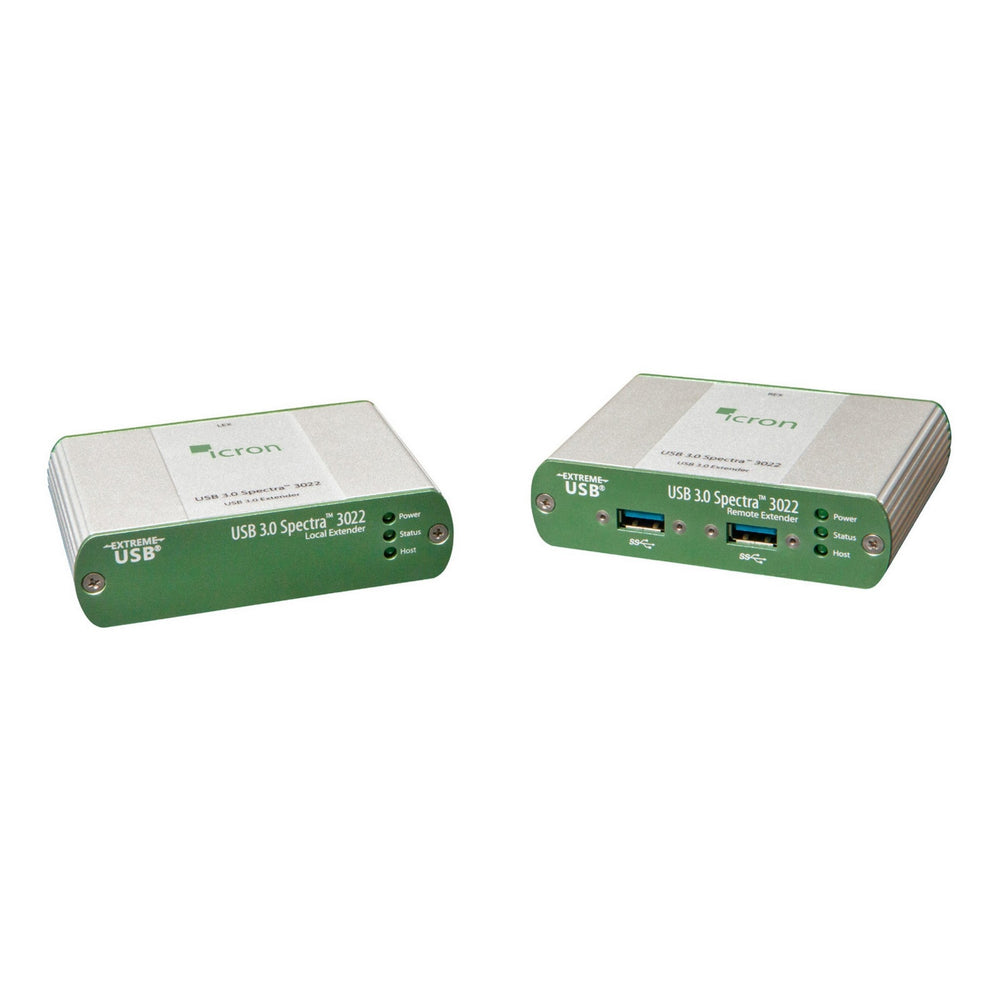

Icron Spectra 3022 USB 3.0 2-Port Multimode Fiber Extender
The Icron USB 3.0 Spectra 3022 is a two port USB 3.0 SuperSpeed extension solution, enabling USB 3.0 connections at up to 5 Gbps over 100m/330ft* of multimode fiber optic cable. The Spectra 3022 features two locking USB 3.0 ports delivering 900mA power to each port perfectly suited for USB3 Vision camera applications and includes a two-year warranty.
Note: backward compatibility to USB 2.0/1.1 is not supported.
USB 3.0's distance is specified at 3 meters. When greater distances are required, consider the USB 3.0 Spectra 3022 which supports USB 3.0 5 Gbps throughputs up to 100 meters over OM3 multimode fiber optic cabling. A true plug-and-play solution, the Spectra 3022 is compatible with all leading operating systems and features two locking USB ports and a locking power connector. The Spectra 3022 is warranted for 2 years from the date of purchase and is AIA USB3 Vision compliant. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.
Key Features
- USB 3.0 extension up to 100m
- Delivers speed, isolation and security over multimode fiber
- Supports USB 3.0 throughputs of up to 5Gbps
- Integrated 2-port hub suitable for industrial environments
- Rugged locking USB and power connectors
- Enclosures with convenient pre-drilled holes for optional bracket mounting
- Works with AIA USB3 Vision compliant devices
- Transparent USB extension
- True plug and play; no software drivers required
Technical Specifications
Range*
OM2 Multimode Fiber
Up to 50m (165 ft)
OM3 Multimode Fiber
Up to 100m (330 ft)
* Up to 50m with USB 3.0 storage type devices; up to 100m or more is achievable when using USB 3.0 bulk traff ic cameras.
Speeds
USB 3.0
Up to 5Gbps (Not backward compatible with USB 2.0/1.1)
LEX
USB Connector
1x USB 3.0 Type B Locking Receptacle per AIA USB3 Vision specification
Link Connector
1x Duplex LC Connector
Dimensions
100 x 76 x 26mm (3.94 x 2.99 x 1.02”)
Enclosure Material
Anodized Aluminum
REX
USB Connectors
2x USB 3.0 Type A Locking Receptacles per AIA USB3 Vision specification
Link Connector
1x Duplex LC Connector
Dimensions
100 x 76 x 26mm (3.94 x 2.99 x 1.02”)
Enclosure Material
Anodized Aluminum
Power Connector
24V DC, 1A, Locking, 2.5 mm, center-positive
Available Current
900mA for each USB Port
Power Supply
100-240V AC Brick, Locking
Environmental
Operating Temperature
0 Degrees C to 50 Degrees C (32 Degrees F to 122 Degrees F)
Storage Temperature
-20 Degrees C to 70 Degrees C (-4 Degrees F to 158 Degrees F)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 90% relative humidity, non-condensing
Compliance
EMC
FCC (Class B), CE (Class B)
Environmental
RoHS2 (CE)
Machine Vision
Works with AIA USB3 Vision compliant devices
Item Includes
Local Extender (LEX)
Remote Extender (REX)
SFP multimode transceiver modules
Locking Power Adapter
3.0 USB Cable
Country Specific Power Cord (North America, EU, UK, Australia, or Japan)
Quick Start Guide
Warranty
2 Year Warranty
