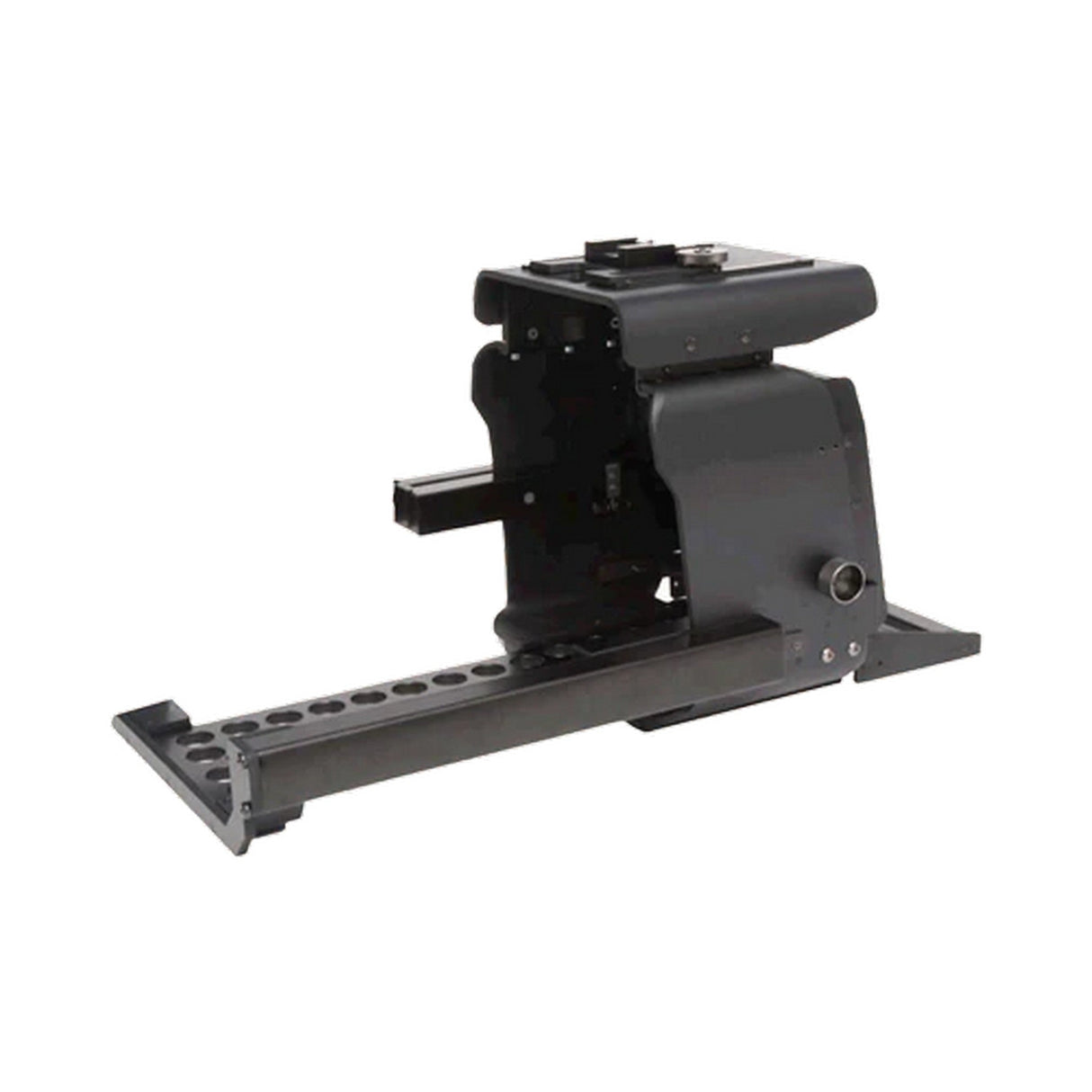

IDX HDS-300S System Build-Up Rig
Description
Description
IDX HDS-300S System Build-Up Rig
System built-up rig helps adapt small camcorders for studio/EFP operations. (2x BNC cables and 2 sets of 1/4 & 3/8 screws included)
Technical Specifications
Input
DC In: 1x 4-pin XLR, V-mount plate
HD-SDI In: 1x BNC
IF In (VF In): 1x 6-pin
Output
DC Out: 1x 4-pin XLR, 1x D-Tap, 1x Mini 4-pin (14.1V/8.4V)
HD-SDI Out: 1x BNC
Tally Out: 1x BNC (On/Off)
Return Switch Out: 1x 4-pin
Operating Temperature
32 Degrees F ~ 104 Degrees F
Storage Temperature
-4 Degrees F ~ 140 Degrees F
Dimensions
11.3(W) x 10.2(H) x 20(D) inches
Weight
11.7lbs approx.
