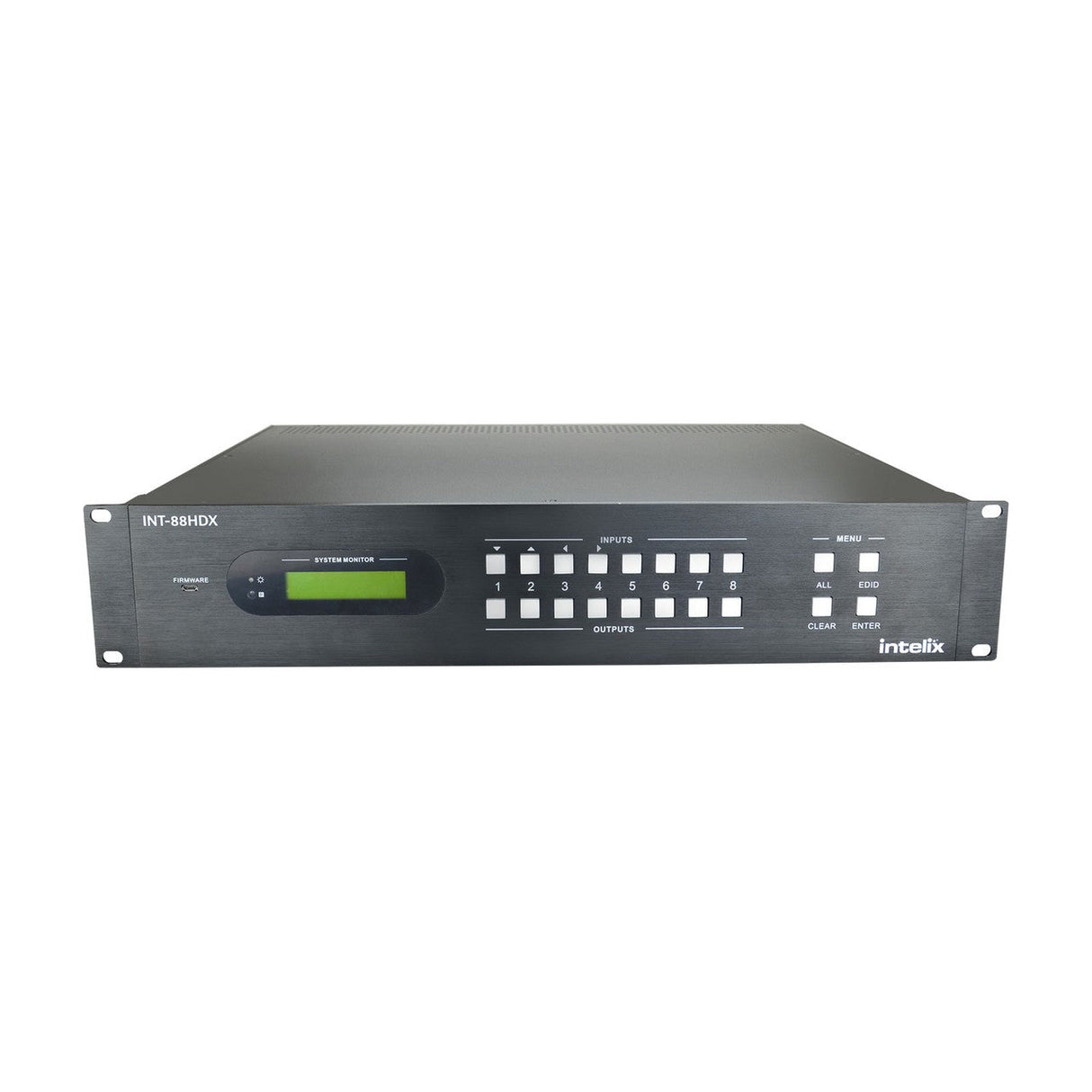

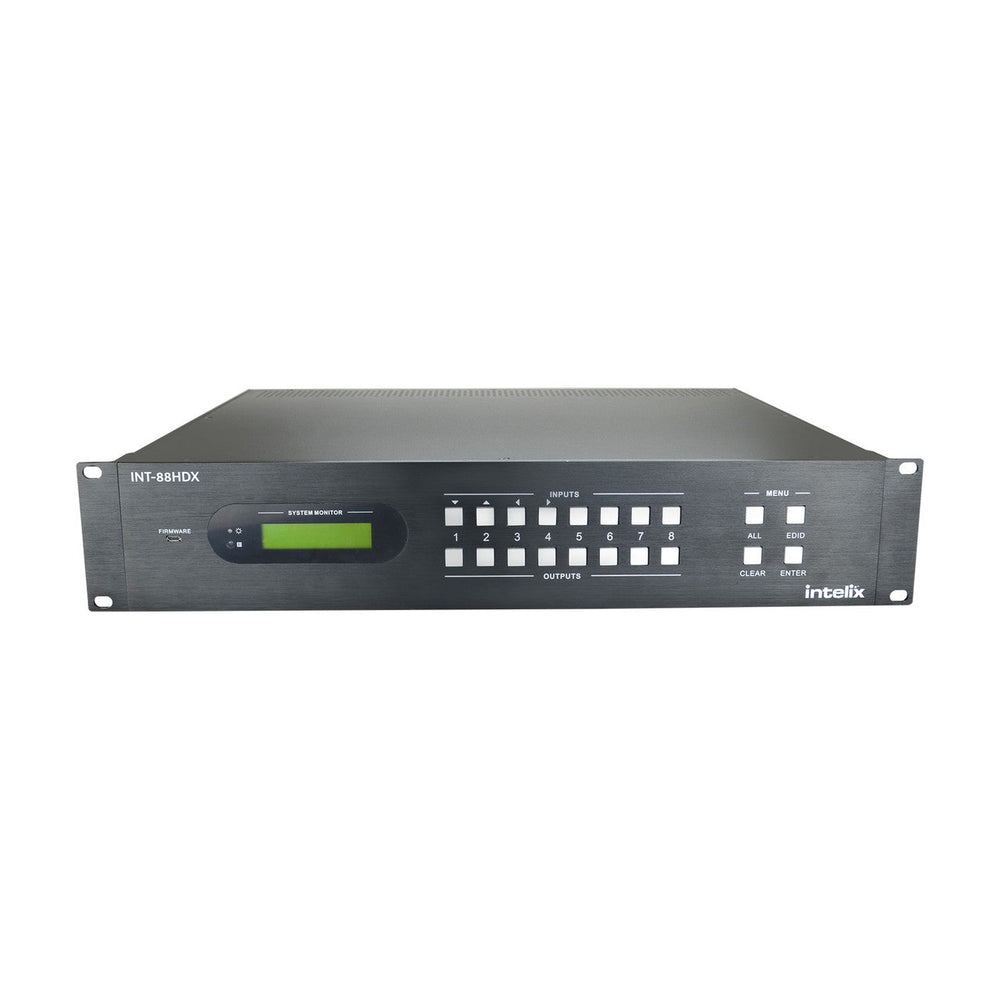

Intelix INT-88HDX 4K 8 x 8 HDBaseT Matrix Switcher
The Intelix INT-88HDX is an eight input by eight output HDBaseT/HDMI matrix switcher with HDCP 2.2 and 4K/30 video support. The matrix features advanced EDID and HDCP handling, including the ability to turn input HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.
The INT-88HDX features HDBaseT twisted pair extension for each output, and simultaneous HDMI on the first three outputs, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support up to 4K/30 HDMI video with audio, bidirectional wide-band IR, matrix control via IR, RS232 tunneling, and HDCP (1.4 and 2.2) up to 100 meters (328 feet). Each HDBaseT output port supplies power to the attached extender, eliminating the need for a power supply at the display end. Each output features analog stereo audio de-embedding and coaxial multichannel audio de-embedding for connection to amplifiers or DSPs.
Key Features
- Eight HDMI inputs with HDCP 2.2 support
- Eight HDBaseT with PoH, with four mirrored HDMI, outputs
- 100 m (328 ft) maximum extender distance
- Analog audio de-embedding on each output
- Front panel, IR, TCP/IP, and RS232 control
- IR and RS232 routing
- IR and RS232 tunneling over HDBaseT
- Control page and configuration accessible from web browser (Web GUI)
- Advanced HDCP management
Technical Specifications
Input/Output Connections
HDMI Inputs:
Eight (8) HDMI Type A Receptacle
IR Outputs:
Eight (8) 3.5mm TRS
HDMI Outputs (Outputs 1, 2, 3 and 4 only):
Four (4) HDMI Type A Receptacle
HDBaseT Outputs:
Eight (8) 8P8C Port (Shielded RJ45 Female)
Analog Audio Outputs:
Eight (8) 3-Pole/3.5mm Euroblock
RS232 Tunnel:
Eight (8) 3-Pole/3.5mm Euroblock
IR All In:
One (1) 3.5mm TRS
IR Eye:
One (1) 3.5mm TRS
TCP/IP:
One (1) 8P8C Port (Shielded RJ45 Female)
RS232:
One (1) DE9 Port Female
Power:
One (1) IEC C14
Supported Audio, Video, and Embedded Control
Video Resolutions:
SMPTE: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, UHD/30
Color Depth:
24, 30, 36, 48bit
Maximum Video Compatibility at 100 m:
Deep Color 48 Bit at 1080p and 3D, UHD/30
Maximum Passive HDMI Cable Distance:
5 m (16.4 ft)
Video Compliance:
HDMI 1.4, HDCP 1.4 and HDCP 2.2
Embedded Audio:
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Analog Audio Pinout:
Left, Ground, Right
Embedded RS232 Baud Rate:
2400, 4800, 9600, 19200, 38400, and 115200 baud
IR Carrier Frequency Range:
33-55kHz at 5 volts
HDBaseT Signal Characteristics
Maximum Distance:
100 m (328ft)
Cable Requirements:
Continuous shielded solid core Cat 5e or greater with TIA/EIA-568B crimp pattern (no couplers in-line)
Bandwidth:
10.2 Gbps
HDBaseT Chipset:
VS100TX
Device Control Parameters
IR Carrier Frequency Range:
33-55kHz at 5 volts
Ethernet:
100BaseT
RS232 Baud Rate:
9600 baud
Chassis and Environmental
Enclosure:
Painted Aluminum
Dimensions (H x W x D):
88 mm x 437 mm x 380 mm (3.46 in x 17.20 in x 14.96 in) - 2 RU
Shipping Weight:
7.45 kg (16.4 lbs.)
Operating Temperature:
0° to +48° C (+32° to +120° F)
Operating Humidity:
10% to 90%, Non-condensing
Storage Temperature:
-20° to +70° C (+14° to +158° F)
Storage Humidity:
10% to 85%, Non-condensing
Power, ESD, and Regulatory
Power Supply:
100V-240VAC / 50-60 Hz
Power over Ethernet (PoE) Compatibility:
802.3af Alternative A, 15 watts per port, 48V available at remote device
Power Consumption:
135 watts (max)
ESD Protection:
15kV air, 8kV contact
Product Regulatory:
UL, FCC, CE, RoHS
Other
Standard Warranty:
2 years
Diagnostic Indicators:
Power LED, System LCD
Included Accessories:
Installation Guide, IR Remote with AAA Batteries, IR Eye, Rack Mounting Ears with Screws, Chassis Feet with Screws, US Power Cable, Straight-Through DE9 Male to Female RS232 Cable, Sixteen (16) 3-pole Removable Terminal Blocks
Compatible Receivers (AV and Power):
DIGI-HD60-R (70m)
Compatible Receivers (AV, Control, and Power):
DIGI-HD60C-R (70m), DIGI-HDX-R (100m), INT-HD70-RX (70m), INT-HDX100-RX (100m)
Compatible Receivers (AV and Control):
DIGI-BSR-4K (100m)
