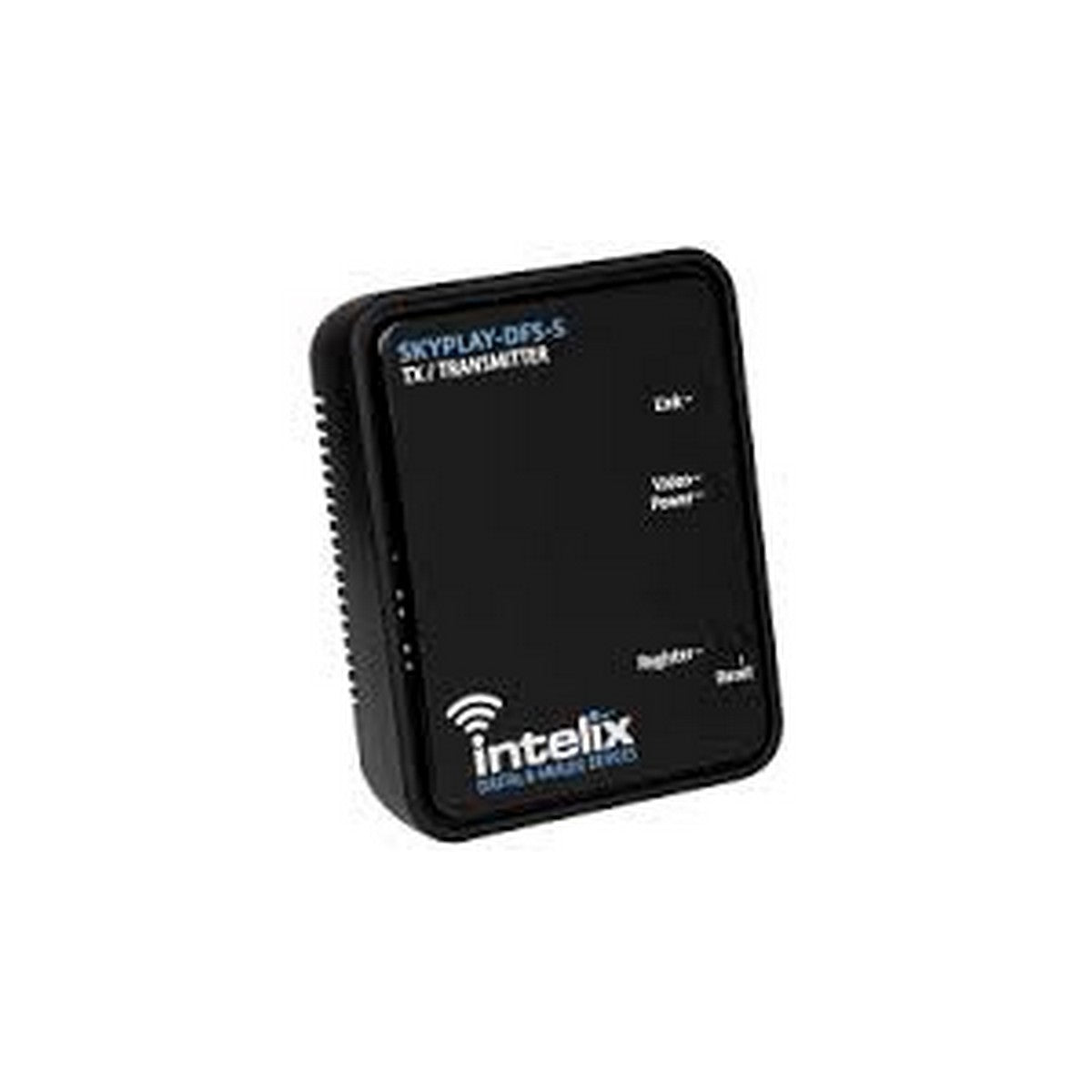

Intelix SKYPLAY-DFS-S | Wireless HDMI Distribution System with Dynamic Frequency Selection Transmitter

Intelix SKYPLAY-DFS-S Wireless HDMI Distribution System with Dynamic Frequency Selection Transmitter

The SKYPLAY-DFS distributes HDMI high-definition audio and video up to 30 meters (100 feet) in both point-to-point, point-to-many, and many-to-point configurations. Each transmitter is compatible with up to 4 receivers and each receiver can be paired to switch up to 4 transmitters.

The SKYPLAY-DFS-S can transmit 1080p video with stereo or multichannel audio. The SKYPLAY-DFS-R can transmit IR signals from the remote location to control the source device. The SKYPLAY-DFS transmitter and receiver must be paired together to pass video.

The SKYPLAY-DFS radios are configured for US and Canada operation.

Key Features

• Wirelessly distribute HDMI up to 100 feet; IR control of source
• Signals can go through standard sheet rock walls
• Up to 4 receivers per transmitter
• Less than 1 frame latency (17 milliseconds)
• HDCP 2.0 compliant, dynamic EDID passthrough, multichannel audio support
• DFS (Dynamic Frequency Selection) for improved density and reliability

Technical Specifications

HDMI Input : One (1) HDMI Type A Receptacle
IR Output : One (1) 2.5mm (3/16”) TS Male Connector
5V DC Power : One (1) 5.5mm Outside Diameter, 2.1mm Inside Diameter Barrel
Supported Video, Audio, and Control
Video Resolutions : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and VESA up to 1920X1080
Color Depth : 30-bit
Video Compliance : HDMI and HDCP
Input Video Signal : 0.5 - 1.5 volts p-p
Input DDC Signal : 5 volts p-p
Embedded Audio : PCM 2.0, DTS (5.1) and Dolby Digital (5.1)
IR Frequency : 38KHz
Signal Characteristics
Wireless Transmission Technology : Amimon Pro
Signal Bandwidth : 40MHz
Maximum Transmission Distance : 30.5 m (100 ft)
Trans mission Rate : 6.75 Gbps
Operating Frequency (Non-DFS) : 5.19-5.23 GHz and 5.755-5.795 GHz
Operating Frequency (DFS) : 5.27-5.59 GHz and 5.67 GHz
System Latency : <1ms
Chassis and Environmental
Material : Black Plastic
Dimensions (HxWxD) : With rubber feet: 29 mm x 81 mm x 102 mm (1.14 in x 3.19 in x 4.02 in)
Without rubber feet: 28 mm x 81 mm x 102 mm (1.10 in x 3.19 in x 4.02 in)
Shipping Weight : 0.91 kg (2 lbs.)
Operating Temperature : -10° to +40° C (+14° to +104° F)
Operating Humidity : 15% to 85%, Non-condensing
Storage Temperature : -20° to +80° C (-4° to +176° F)
Storage Humidity : 15% to 85%, Non-condensing
Power, ESD, and Regulatory
Power Supply : 5VDC 2.6A
Power Consumption : 9 watts
ESD Protection : 15kV
Regulatory : FCC, CE, RoHS
Other
Warranty : 2 years
Diagnostic Indicators : Power, Link, and Video
Included Accessories : Installation Guide, IR remote, power supply with international adapters, and HDMI cable
