JTS JS-22 1/2-Inch Studio Condenser Microphone
Description
Description

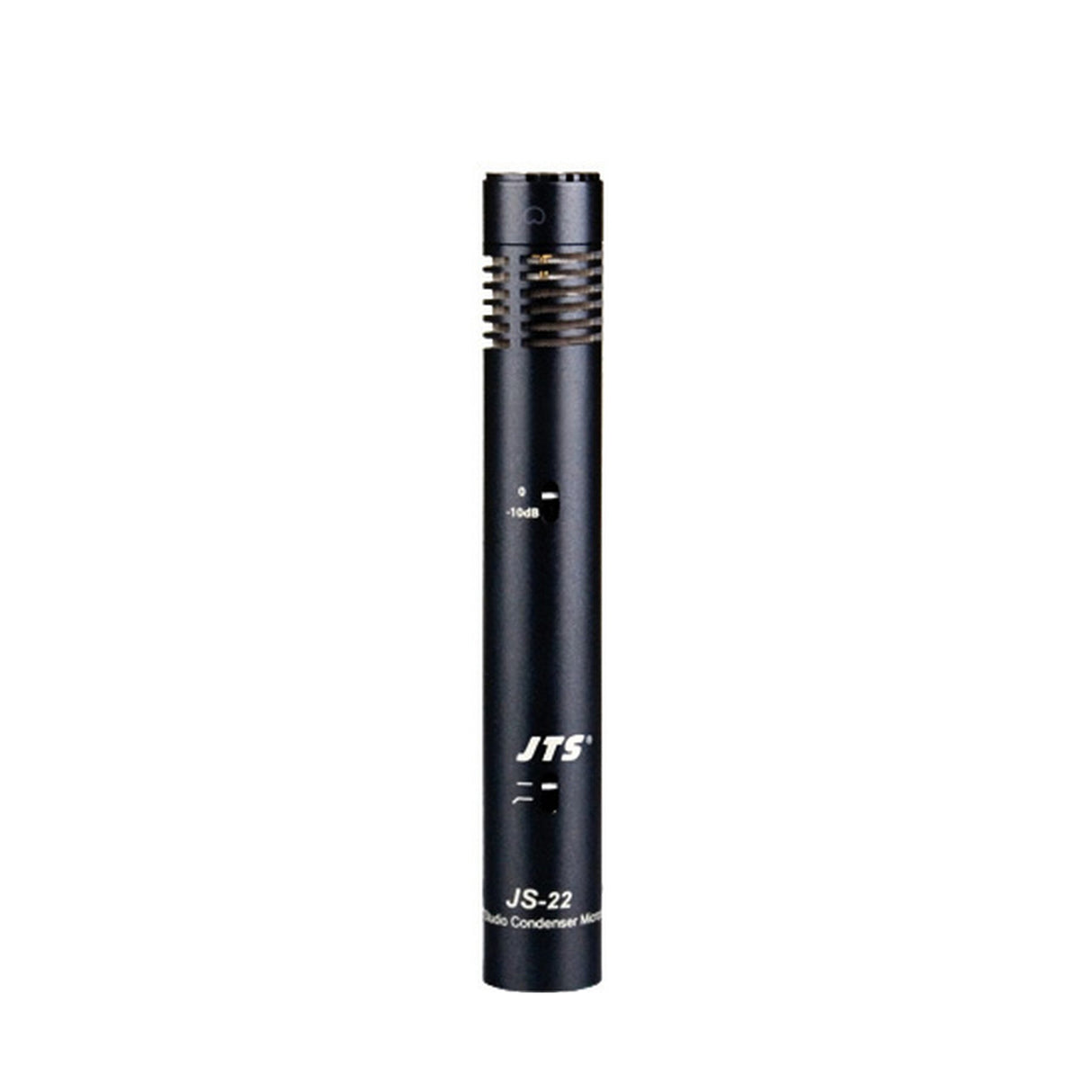

JTS JS-22 1/2-Inch Studio Condenser Microphone
Based on the successful experience of JS-1 series JS-22 is designed for instrument miking from strings to percussions. The JS-22 is built on a solid brass with accurate processing. The 1/2” golden plated diaphragm is manually assembled by JTS craftsman. The precise designed circuit with low cut and pad feature provides flat response. This microphone royally reproduces any kinds of instruments and vocals. Application: Acoustic guitar, acoustic bass, strings, piano, woodwinds, orchestra, stereo pick-up, ensemble vocals and cymbals.
Technical Specifications
Type
Condenser Mic
Frequency Response
20~20,000 Hz
Sensitivity
-36±3 dB(15.8mV) 0dB=1V /Pa,1kHz
Directional Pattern
Cardioid
Attenuation Switch
-10dB
Low Frequency Roll-off
80Hz
Impedance
100Ω
Max. SPL For 1% T.H.D.
140 dB
Signal To Noise Ratio
78dB
Power Supply
36~52VDC phantom power
Current consumption
≤3mA
Output
XLR-M type (power module)
Dimensions(mm)
Ø22.5mm(W) 150.5mm(H)
