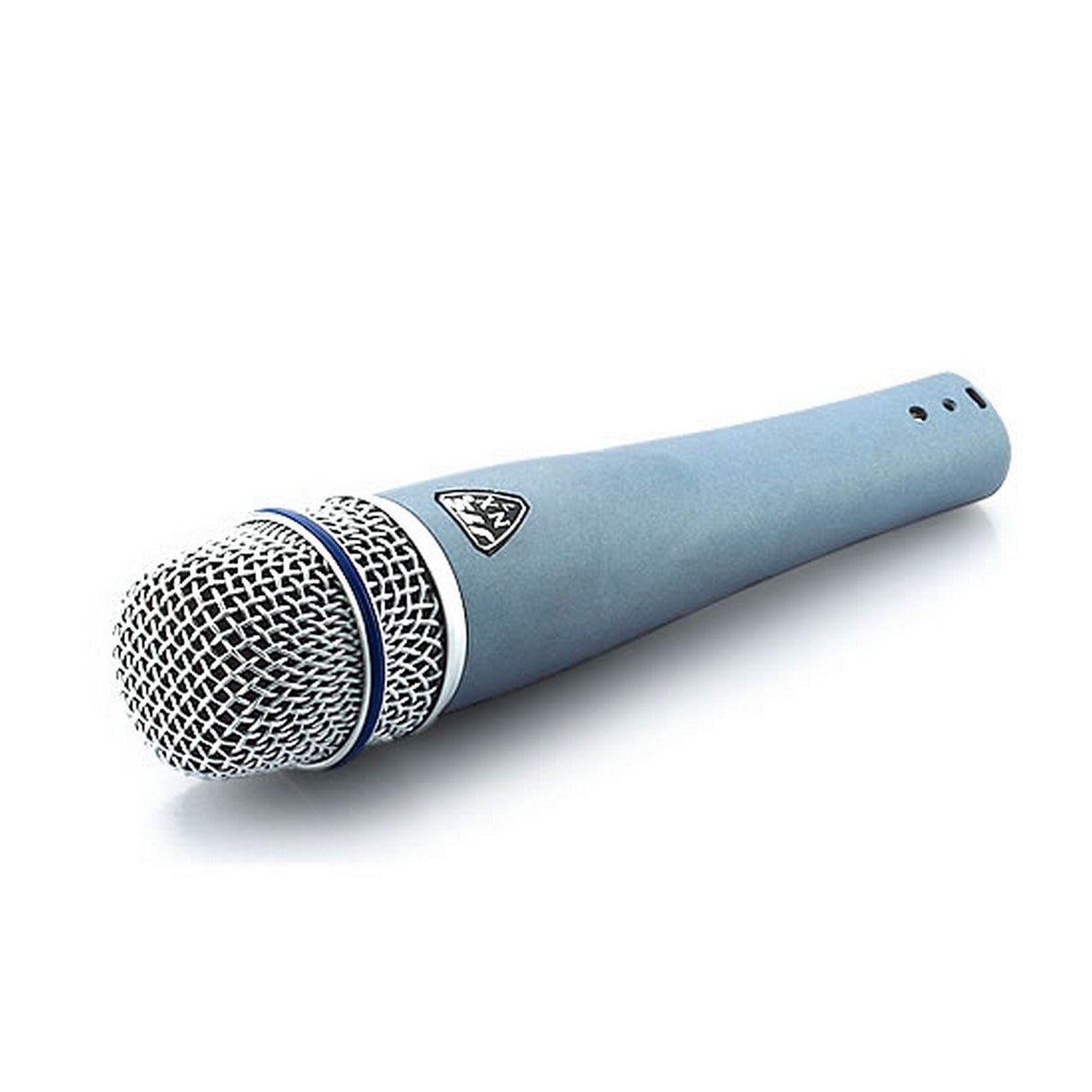

JTS NX-7 Dynamic Cardioid Handheld Microphone
Description
Description
JTS NX-7 Dynamic Cardioid Handheld Microphone
The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal, drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.
Technical Specifications
Type
Moving Coil Dynamic
Frequency Response
50~16,500 Hz
Polar Pattern
Cardioid, rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity (at 1,000Hz)
-72dB*(0.25mV) *0dB=1V/μbar
Impedance
600Ω
Phasing
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector
Three-pin professional audio connector
(Male XLR type)
Case
Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight
235 grams (8.3 oz)
