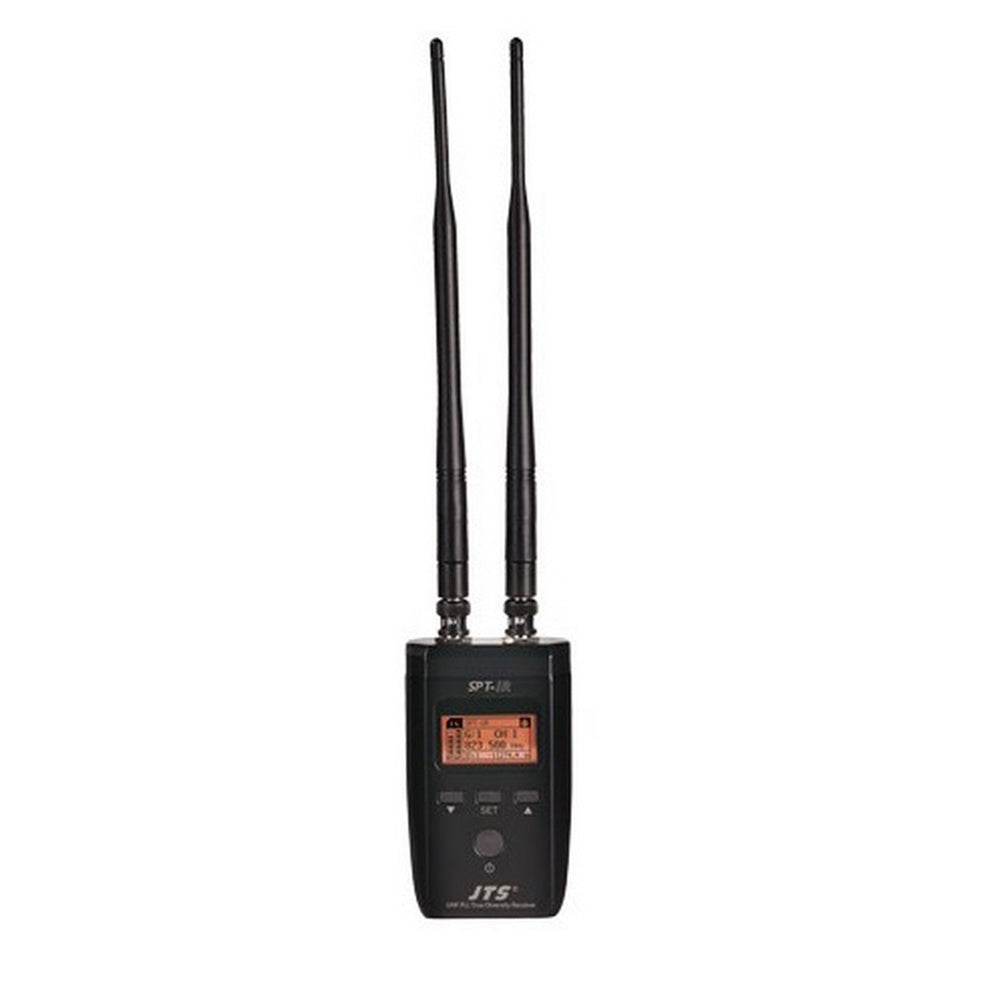

JTS SPT-1R Dual-Channel UHF Wireless Audio Receiver, 2.4GHz
Description
Description
JTS SPT-1R Dual-Channel UHF Wireless Audio Receiver, 2.4GHz
As part of the SPT Series, the SPT-1R Receiver allows wireless audio to be incorporated in to any active speaker system negating the need for long and complicated cable runs.
Key Features
- Obviate Audio Delay/Latency
- Eliminate Complex Cable Runs
- Fast Setup/Teardown with Great Installation Flexibility
- Independent Audio Channel Control
Technical Specifications
Frequency Oscillation
Phase-Locked Loop, PLL
Carrier Frequency
470~960 MHz
Number of Channels
2 Channels
Frequency Matching
2.4GHz RF
Antenna Selection
True Diversity
Signal to Noise Ratio (S/N)
>106dB(A)
Total Harmonic Distortion (T.H.D)
<0.5%@1KHz
Reception Sensitivity
-95dBm, S/N>80dB
Mirror Rejection Ratio
>80 dB
General Frequency Response
50Hz~18KHz±2dB
Antenna Connector
BNC Female
Display
LCD
Functions Displayed
Group, Channel, Frequency, Antenna A/B, AF Indication, RF Indication, Remoset ID, Delay Time (distance)
Controls
Power Switch, Group, Channel, Frequency, Reception Sensitivity, Key Lock, Delay Time, Display Settings, Language
Audio Output Level (MAX)
Mini XLR Jack：+10dBu (Line), -10dBu (MIC)
Audio Output Impedance
600Ω
Mute
Noise Mute and Pilot Tone
Output Port
Balanced Mini XLR
Power
DCV INPUT 12V/0.5A
Dimensions
365mm(L) x 70mm(W) x 30mm(H)
Remark
Specifications provided above may be slightly different from the product without further notice.
