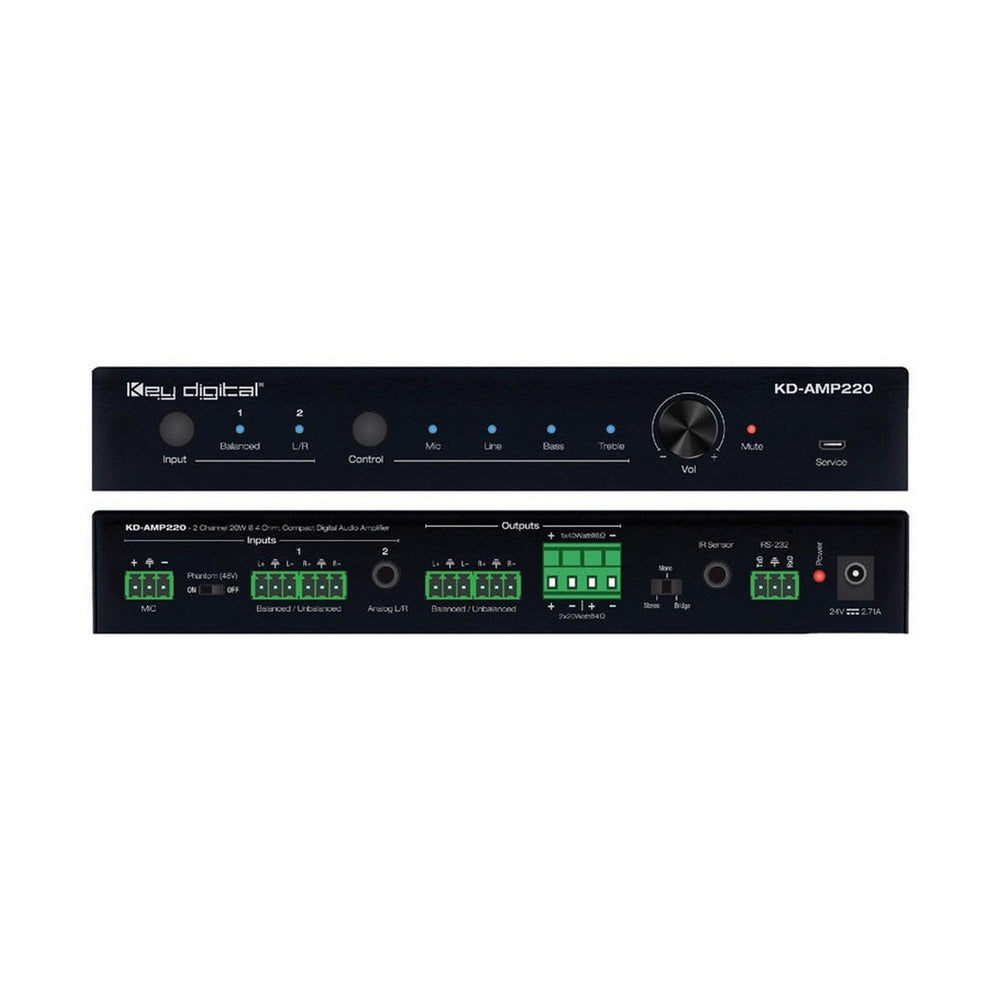

Key Digital KD-AMP220 | Compact Digital Amplifier

Key Digital KD-AMP220 Compact Digital Amplifier

2Ch 20 WPC @ 8 Ohm, 40 WPC @ 4 Ohm, Compact Digital Amplifier

Key Features

• Class D 2 Channel Amplification: 2Ch 20 WPC @ 8 Ohm, 40 WPC @ 4 Ohm BRIDGED
• Mixing: Output is a mix of microphone and the selected audio input
• Inputs: Microphone (3-pin balanced, condenser/dynamic), 6-pin balanced stereo, 3.5mm stereo
• Phantom Power: 48V phantom power for integration with condenser microphones
• Outputs: Pre-amp line level (6-pin balanced), speaker level
• Control: Front panel, RS-232, IR with external IR Sensor (included)

Technical Specifications

Frequency Response
20Hz - 20KHz
Signal to Noise Ratio
<80dB
Total Harmonic Distortion
<1% @ 1KHZ, < 0.3% @ 20Khz
Compact Size
4.84”(W) x 3.42”(D) x 1.3”(H)
