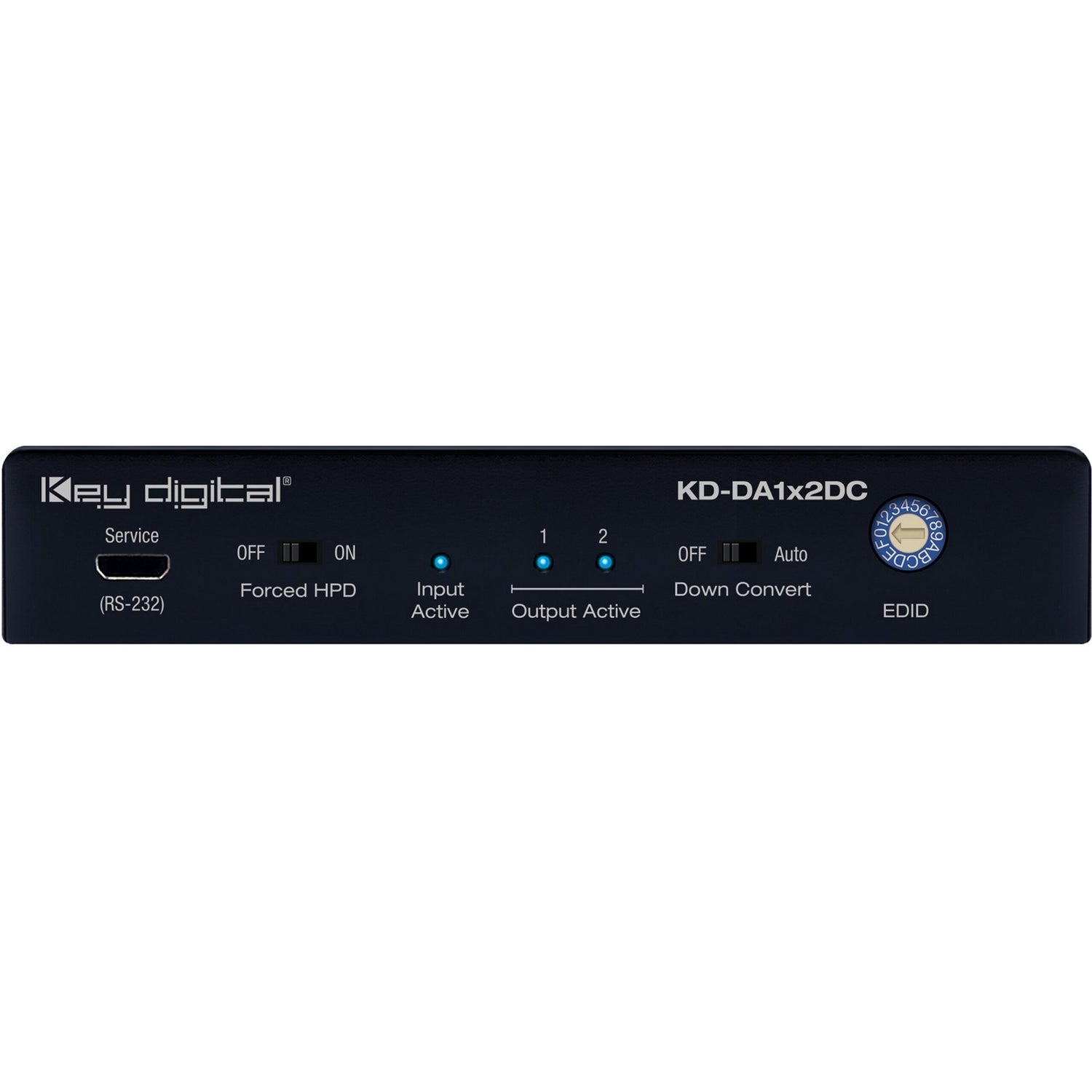

Key Digital KD-DA1X2DC 4K 18G 1x2 HDMI Distribution Amplifier

Key Digital KD-DA1X2DC 4K 18G 1x2 HDMI Distribution Amplifier

4K 18G 1x2 HDMI Distribution Amplifier with Audio De-Embed, 4K to 1080p Down-Convert.

Key Features

• HDMI Signal Distribution: 1 HDMI source to 2 HDMI outputs/displays
• Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
• 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display.
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors.
• Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1
• Digital Audio Format Support: DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos
• CEC Disconnect: Prevents unwanted control of source

Technical Specifications

Technical
Input: HDMI Connector, Type A, 19 Pin Female
Output (Each): HDMI Connector, Type A, 19 Pin Female
Bandwidth: TMDS bandwidth 18 Gbps
DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz,
Interchangeable head, screw-in connector
General
Regulation: CE, RoHS, WEEE
Enclosure: Black Metal
Product Dimensions: 4.96” x 2.74” x 0.91”
Packaging Dimensions: 8.27” x 5.67” x 3.15”
Product Weight: 0 .45 lb
Shipping Weight: 1 .12 lb
