Key Digital KD-DA1x8 | 1 x 8 4K/18G HDMI Distribution Amplifier
Description
Description

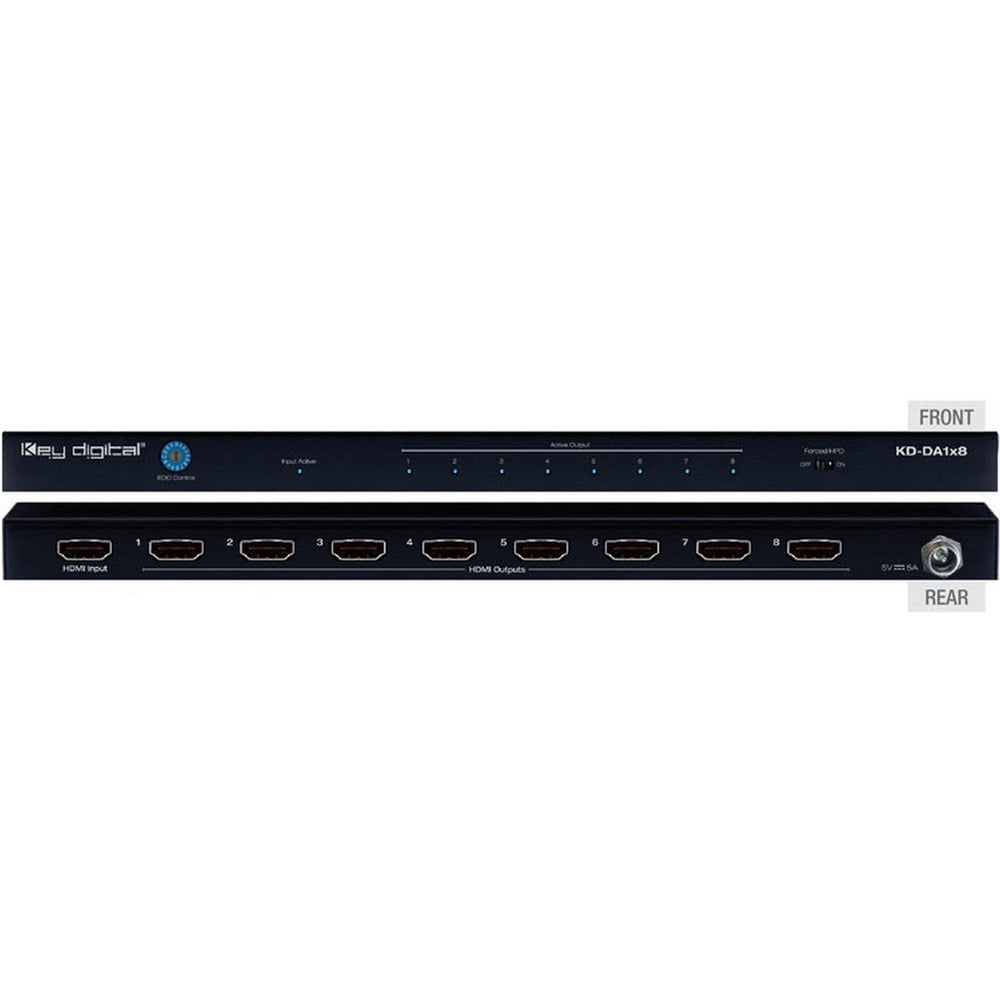

Key Digital KD-DA1x8 1 x 8 4K/18G HDMI Distribution Amplifier
1x8 4K/18G HDMI Distribution Amplifier, HDR10, HDCP2.2
Key Features
- Digital Distribution: 1 HDMI Source to 8 HDMI Displays
- Ultra HD/4K Resolution: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- HDCP Licensing: Compliancy up to HDCP 2.2 and backward compliant
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- Resolution Support: SD, HD, and VESA up to UHD/4K
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
- Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
Technical Specifications
Input
HDMI Connector, Type A, 19 Pin Female
Output (Each)
HDMI Connector, Type A, 19 Pin Female
Bandwidth
TMDS bandwidth 18 Gb/s
Deep Color Support
Digital video formats in Deep Color Mode up to 12 bits/color
DDC Communication
EDID and HDCP Bi-directional buffering from Display to Source
KD-DA1x2/1x4 Power Supply
KDPS12W5VD, 5V/2A, 12W, interchangeable head, screw-in connector
KD-DA1x8 Power Supply
KDPS20W5VC, 5V/2A, 20W, interchangeable head, screw-in connector
General
Regulation
CE, RoHS, WEEE
Enclosure
Black Metal
Product Dimensions
6.9” x 3.25” x 0.55”
Shipping Dimensions
8.25” x 4.75” x 3.6”
Product Weight
0.8 lb.
Shipping Weight
1.4 lb.
