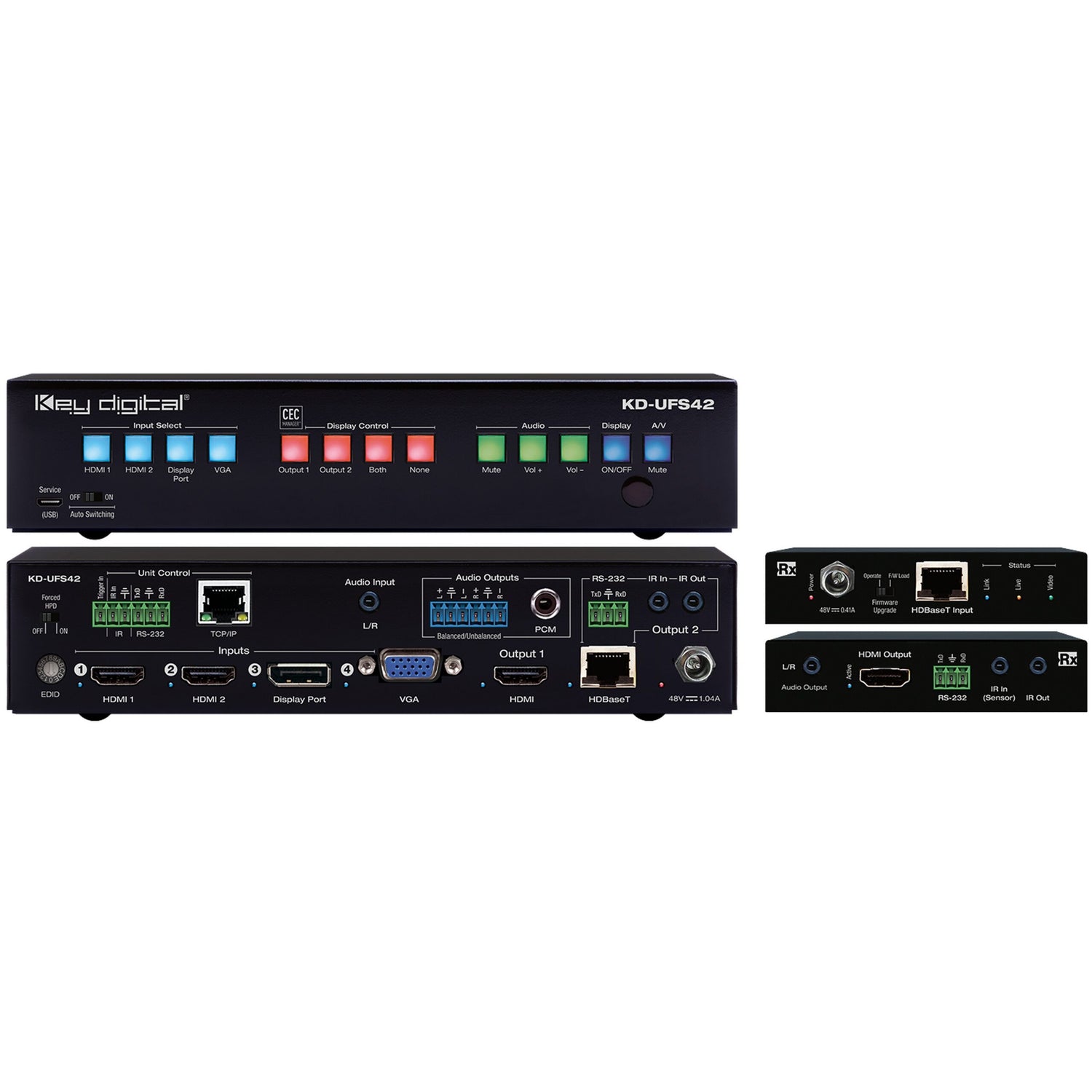

Key Digital KD-UFS42 4K 18G Universal Format Switcher
4K 18G (40m) Universal Format Switcher with 4 Inputs (2x HDMI, DP, VGA), HDMI and HDBaseT Mirrored Outputs with Rx Included, Audio De-Embed, CEC Display Control, Auto Switching. KD-App and KDPlug & Present Ready.
Key Features
- Presentation Switcher Kit: Includes KD-UFS42 and KD-X40MRx.
- Presentation Switching: 2 HDMI, 1 Display Port, and 1 VGA + L/R audio source selection by push button, IP, RS-232, IR, auto switching, or trigger control.
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
- CEC Manager: Power, volume, and muting controls of the connected display/projector without any additional control wiring. Selection of desired CEC command recipient.
- KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager
- KDPlug & Present Ready: Add KD-CX800 to build a programming-free automation system
- Ease of Integration: Complete configuration using Key Digital Management Software Pro
- Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors.
- KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
- PTZ USB Camera Integration: Add KD-CAMUSB for full PTZ control via KD-App. Use with KD-XUSB2 extender for USB signal extension over CAT5e/6.
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10+ and Dolby Vision: More life-like images through a greater range of luminance levels
- Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UFS42
- Installation: Half-rack width with rack and under-table mounting ears included
- 4K/UHD (18G): Up to 40m / 131ft
- 1080p: Up to 70m / 230ft
Technical Specifications
AV Inputs
2x HDMI, 1x Display Port, 1x VGA
AV Outputs
1x HDBaseT RJ45, 1x HDMI, 1x Analog Audio on 6-pin terminal block, 1x Digital Audio on PCM RCA
DDC Signal (Data)
Input DDC Signal: 5 Volts p-p (TTL)
HDMI Video/Audio Signal
Input Video Signal: 1.2 Volts p-p
Display Port Video/Audio Signal
Input Video Signal: 1.2 Volts p-p
VGA Video Signal
Input Video Signal: 1.2 Volts p-p
RJ45 Connectors
Shielded Link Connector, 2x HDBaseT, 1x LAN
Unit Control
TCP/IP on RJ45, Bi-directional RS-232, Serial IR, IR sensor, USB Micro
RS-232 Connector
1x 3-pin terminal for unit control, 2x 3-pin terminal for pass-thru to/from HDBaseT Input and HDBaseT output
IR Connectors
1x IR Sensor, 1x 2-pin terminal for unit control, 1x 3.5mm mono for IR input pass-thru to HDBaseT Output, 1x 3.5mm mono for IR output pass-thru from HDBaseT Output
RS-232 Connector
3-pin phoenix terminal
Regulation
CE, RoHS, WEEE, EAC
Enclosure
Black metal
Product Dimensions
8.27 x 6.42 x 1.75” (210 x 163 x 44.4mm)
Product Weight
Weight
3.5 lbs / 1.59kg
Packaging Dimensions
15.16 x 9.10 x 3.94 (385 x 230 x 100 mm)
Packaging Weight
11.0 lbs / 5kg
