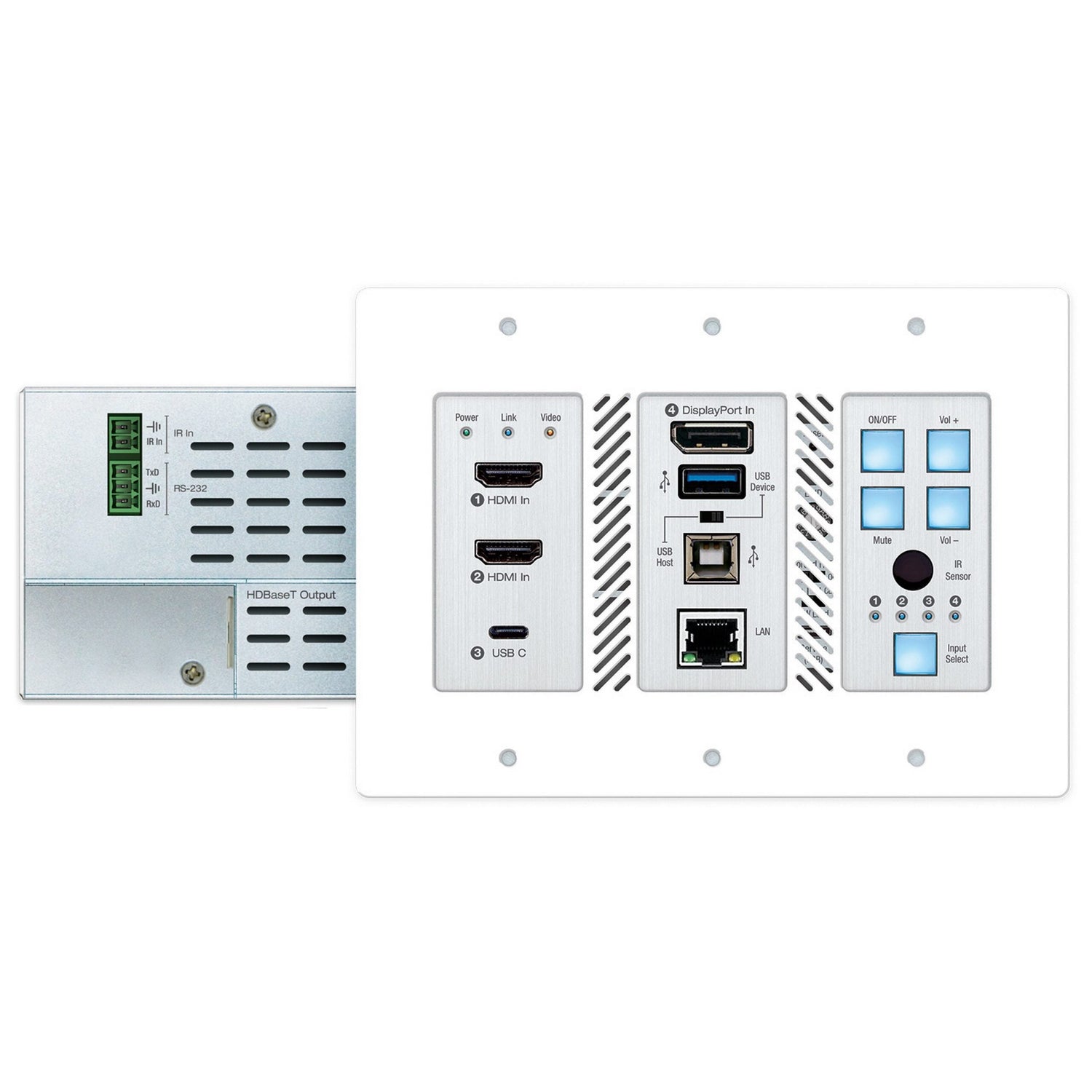

Key Digital KD-X4X1WUTX 4 x 1 4K/18G 100m HDBT PoH Wall Plate Switcher Transmitter

Key Digital KD-X4X1WUTX 4 x 1 4K/18G 100m HDBT PoH Wall Plate Switcher Transmitter

4x1 4K/18G 100m HDBT PoH Wall Plate Switcher with 2x HDMI, DP, USB-C, USB, LAN, ARC, Audio De-Embed, IR, RS-232, IP Control, CEC Manager. Transmitter Only

Technical Specifications

Presentation Switching
2 HDMI, 1 Display Port, and 1 USB-C source selection by push button or IP control
Installation
Fits in standard US 3-gang wall box or table and wall AV boxes.
Rx Options
Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available.
Soft-Codec Enabling System
USB Host + Device ports on wall plate and chosen Rx / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
Ultra HD/4K
Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Auto-Sensing
Automatic selection of newly detected source and switching from newly disconnected source when enabled
CEC Manager
Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
KD-App Ready
Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager
Ease of Integration
Complete configuration using Key Digital Management Software Pro
HDCP Licensing
Fully licensed and compatible with HDCP 2.2
HDR10 and Dolby Vision
More life-like images through a greater range of luminance levels
Power Over HDBaseT
Wall-plate unit powered by Rx/Presentation Switch unit
Installation
Tx unit designed for installation in standard US three-gang box
Signal Extension
For resolution and cable quality
4K/UHD (18G) Up to 100m / 328ft
1080p Up to 150m / 492ft
Deep Color Support
Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
Full Buffer System
Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
EDID Management
Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
IR Sensor
Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
RS-232
Bi-Directional control to/from Tx and Rx/Presentation Switch unit
Lossless compressed digital audio
Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
Control System Support
Fully controllable by all TCP/IP and RS-232 supported control systems via open API
Compass Control Pro, AMX, Crestron, KNX, RTI, Savant, URC, Leviton etc.
Inputs
2 HDMI, 1 Display Port, 1 USB-C, 1 IR Sensor, 1 Serial IR, 1 Bi-Directional RS-232
Outputs
1 HDBaseT RJ45, 1 Bi-Directional RS-232
DDC Signal (Data)
Input DDC Signal 5 Volts p-p (TTL)
HDMI Video/Audio Signal
Input Video Signal 1.2 Volts p-p
Display Port Video/Audio Signal
Input Video Signal 1.2 Volts p-p
USB-C Video/Audio Signal
Input Video Signal 1.2 Volts p-p
RJ45 Connector
Shielded Link Connector, HDBaseT
IR Connectors
1 IR Sensor, 1 2-pin phoenix terminal
RS-232 Connector
3-pin phoenix terminal
Regulation
CE, RoHS, WEEE, EAC
Wallplate
Standard 3-gang Wallplate
Enclosure
Faceplate - Silver Brushed Metal, Body - Texturized Silver Metal
Product Dimensions
5.5 x 4.1 x 1.43” (141 x 105 x 36.4mm)
Product Weight
1.3 lbs
Packaging Dimensions
11” x 7.9” x 2.1” (280 x 200 x 55 mm)
Packaging Weight
2.1 lbs
Accessories
USB-A to USB Micro Data Cable
Aluminum decora plate (qty 1) / Decora mounting screws with flat head (qty 6)
Gang-box mounting screws, (qty 6)
3-pin phoenix terminal (qty 1)
2-pin phoenix terminal (qty 1)
