Kings 2065-11-9 M66 75 Ohm 12G BNC Connector for 1855A/4855R Mini-RG59 Coax Cable, 100-Pack

Kings 2065-11-9 M66 75 Ohm 12G BNC Connector for 1855A/4855R Mini-RG59 Coax Cable, 100-Pack

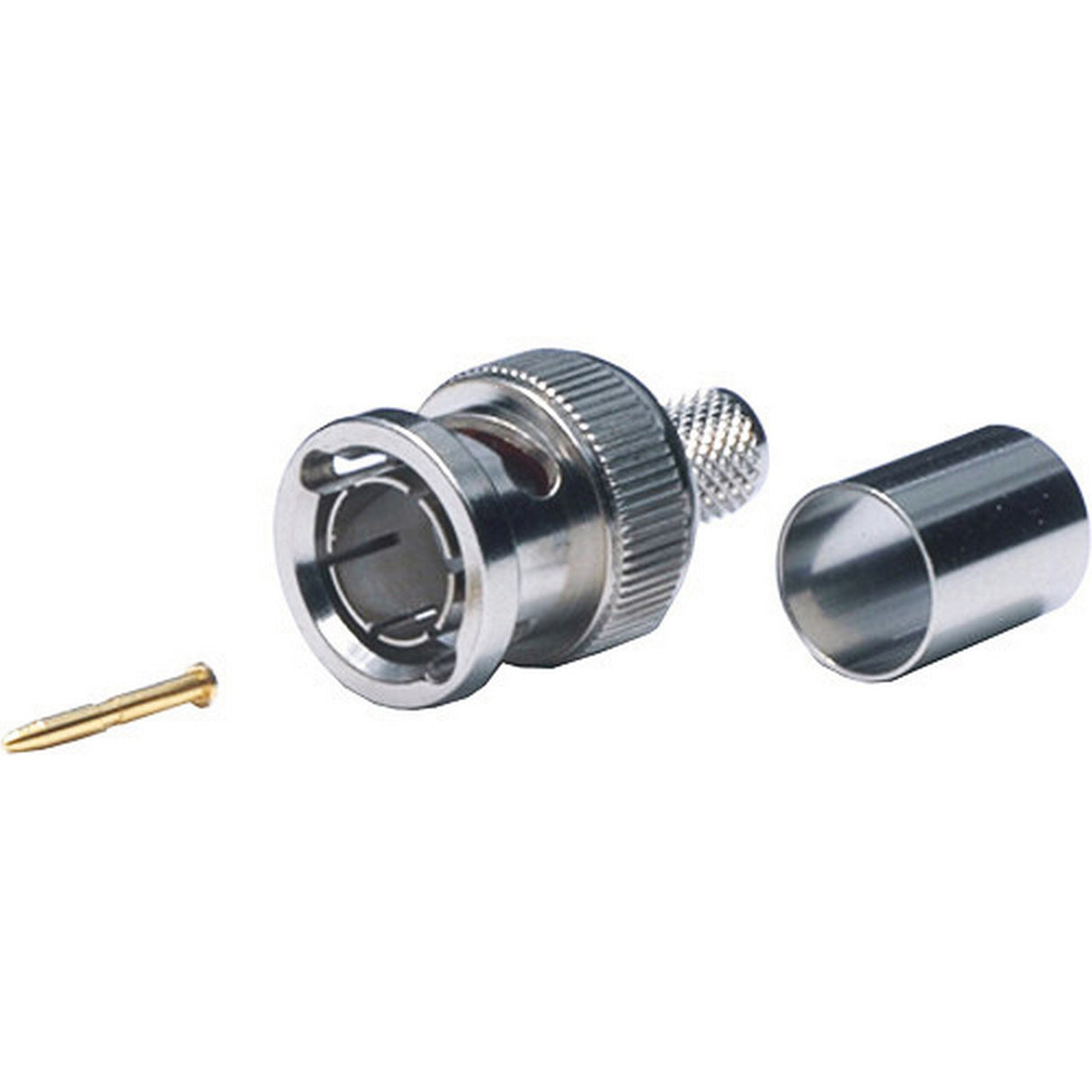

Winchester's 2065-11-9-M66 KINGS brand 75 Ohm BNC series RF connectors are manufactured with a reduced dielectric to achieve 75 Ohm nominal impedance. They will mate with 50 Ohm BNC connectors with no damage. All the connectors in this group have captive center contacts.

RF BNC connectors are the most popular and widely used miniature size connectors for coaxial cables. The KINGS brand 2065 Series True 75 Ohm BNC connectors are ideal for Broadcast applications - meeting the industry's stringent HDTV standards. Kings 75 Ohm BNCs feature a full crimp design, and are field installable using our hand crimping tools, which were developed to perfectly fit our connector design. KINGS 75 Ohm BNC connectors feature a bayonet coupling for quick connect and disconnect, and are designed to terminate to the most commonly used coaxial cables in the broadcast industry.

Key Features

• Serial Digital 75 Ohm 500 volts RMS BNC Connectors
• Frequency to 5 GHz
• 500 cycles minimum
• Full crimp design
• Fits analog & digital cables
• Field installable
• Meets or exceeds HDTV standards
• Use: KTH-5003 Die with KTH-5000 CrimpTool Frame
• Use: KTH-2025 Crimp Die with KTH1000 Crimp Tool Frame
• Use Belden: 4855R, 1855A and 1865A
• Use Gepco: VDM230
• America's Best Source for Kings!

Technical Specifications

Trim Code 3-661-1
A = 0.624”

B = 0.312”
C = 0.155”
Gender
Male
Frequency
4 GHz
Cable Procedure
3-661-1
Crimp Tool
KTH-1000
Crimp Die
KTH-2025
Center Pin Crimp Cavity
0.042”
Ferrule Crimp Cavity
0.178”
Part Status
Active
Connector Style
BNC
Connector Type
Plug, Male Pin
Contact Termination
Crimp
Shield Termination
Crimp
Impedance
75 Ohm
Mounting Type
Free Hanging (In-Line)
Orientation
Straight Non-QPL
Fastening Type
Bayonet Lock
Frequency Max
12GHz
Number of Ports
1
Plating
Nickel
Type
Plug
